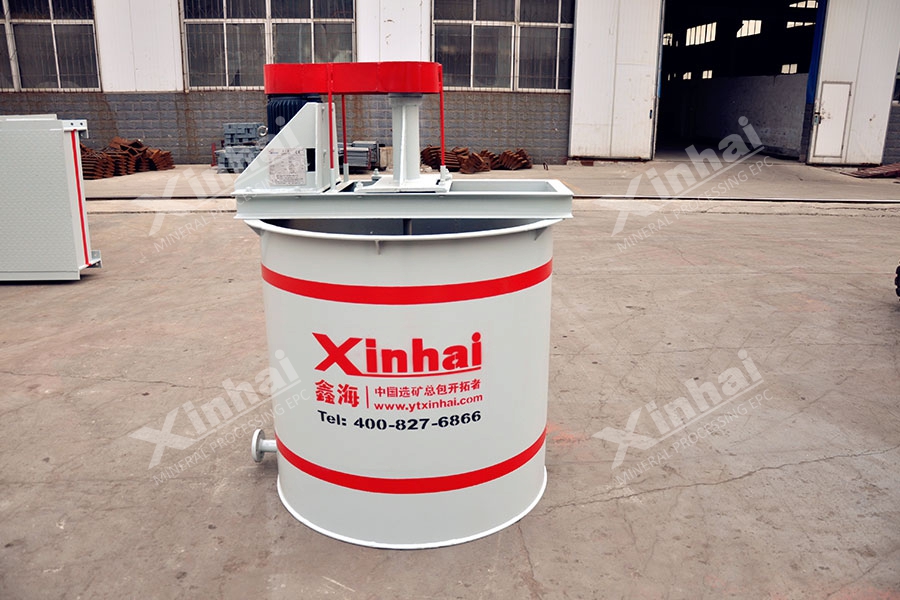

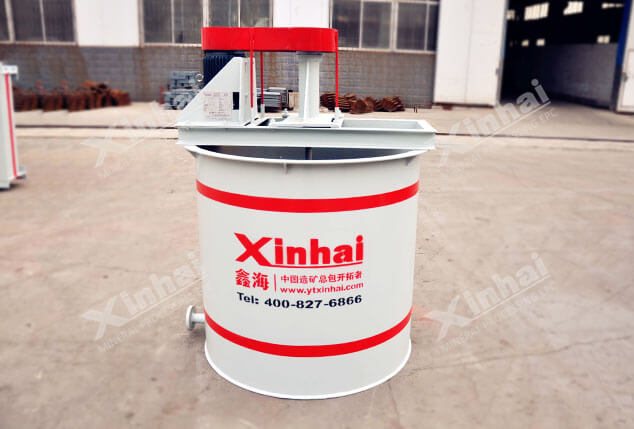

Agitation Tank for Chemical Reagent

Agitation Tank for Chemical Reagent

【Introduction】:
An agitation equipment used in reagents preparation
【Volume】:
0.094~ 4.4m3
【Improvement】:
The cylinder is lined with Xinhai wear-resitant rubber to resist the corrosion of reagents

【Advantages】

Excellent wear-resistance, long service life
Strong agitation capability

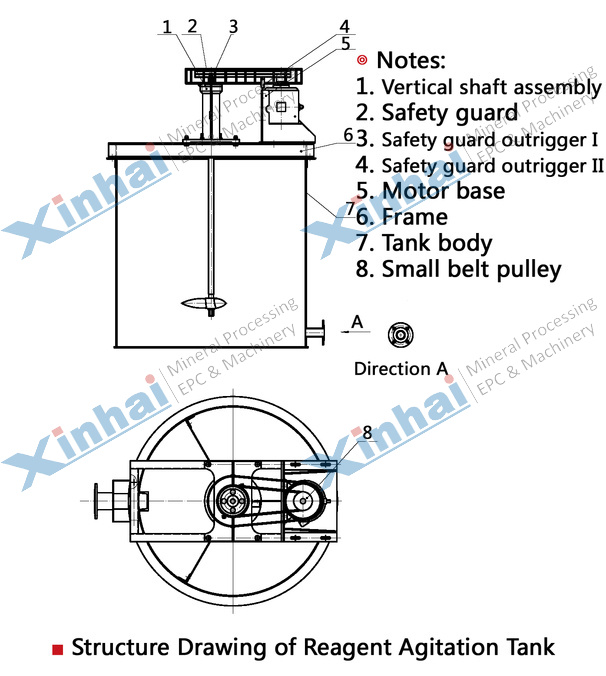

【Product Structure】

Agitation tank for chemical reagent for chemical reagent adopts barrel shaped radiation circular spiral impeller for mixing operation by mechanical stirring method. The motor drives V- belt transmission device which drives the impeller. Reagents mix evenly under the rotation of impeller preparing for next step that mix the ore slurry and reagents.

Agitation tank for chemical reagent is used for reagents preparation before floatation.

【Technical Parameters】

Model Effective Volume (m3) Rotating Speed of Impeller (r/min) Diameter of Impeller (mm) Motor Model Motor Power
(kW)
Weight (kg)
BJW-500X600 0.094 493 200 Y80L-4 0.55 120
BJW-750X750 0.25 530 240 Y100L-6 1.5 230
BJW-750X1000 0.35 530 240 Y100L-6 1.5 270
BJW-1000X1000 0.58 530 240 Y100L-6 1.5 420
BJW-1250X1250 1.15 492 310 Y100L1-4 2.2 490
BJW-1500X1500 2.2 320 400 Y132S-6 3 1310
BJW-2000X2000 5.46 230 550 Y132M2-6 5.5 1720
BJW-3000X3000 14.8 210 700 Y225S-8 18.5 4613

【Successful case】


In a large chemical plant in Henan, the corrosion resistance is strong, and the percent abandoned of agitation tank is high, after contrast among several companies, the client chose Xinhai agitation tank for chemical reagent. This agitation tank adopts push type spiral impeller, the speed is uniform, which makes the material mixing more even, and the cylinder is lining with Xinhai wear-resisting rubber, and also packs resistant anticorrosive rubber on the impeller, which has effective corrosive substance against corrosive agents, prolong the service life of equipment, and overcome the problems of the plant always meet.
