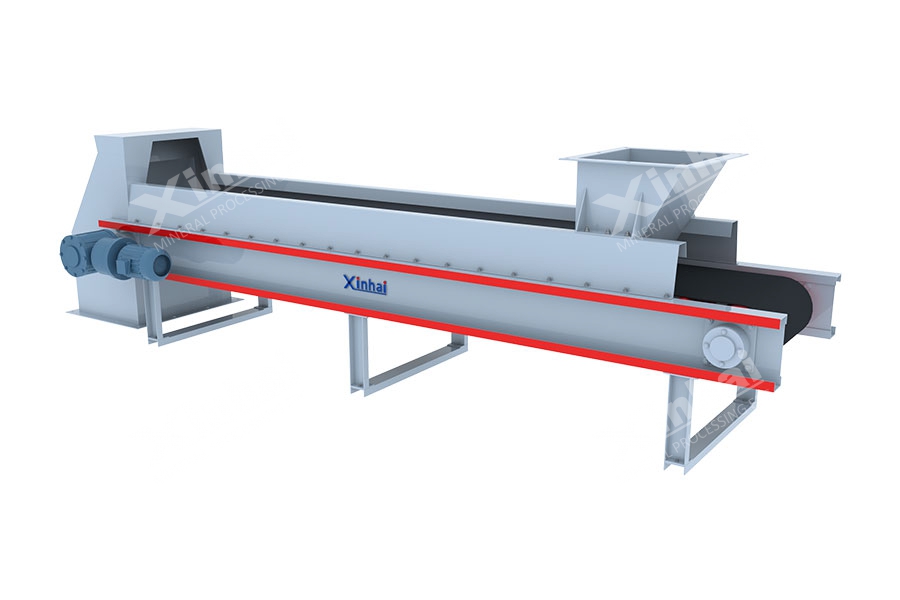

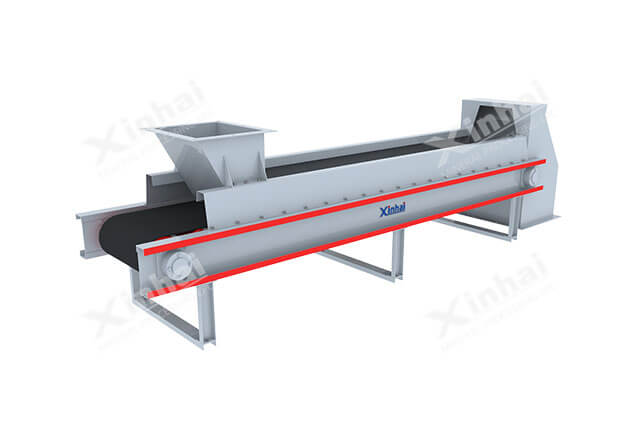

Belt Feeder

Belt Feeder

【Introduction】:
A belt feeder with heave pressure bearing
【 Capacity 】:
10~450t/h
【Improvement】:
Speed adjustment motor, adjusting the feeding volume by changing belt speed

【Advantages】

It has two methods to adjust the production capacity: adjusting the rotating speed of the AC motor; adjusting the depth of the adjusting gate.

Low power consumption, convenient operation.

Convenient installation, large conveying capacity. Low noise.

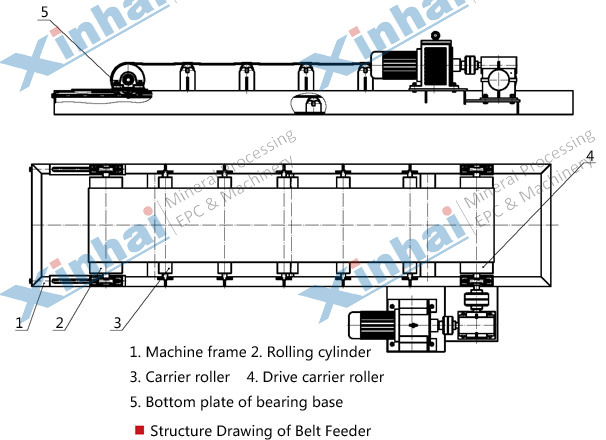

【Product Structure】

The hopper feeds minerals on the belt. With the AC motor revolving, belt slowly moves toward and carries minerals to next production process to achieve continuous feeding.

【Technical Parameters】

Model Belt Width (mm) Center Distance of Head and Tail Wheel or Drum Wheel (mm) Diameter of Head and Tail Wheel (mm) Feed Capacity (t/h) Feed Size (mm) Motor Model Motor
Power
(kW)
Weight
(kg)
500X1000 500 1000 219 10~100 0~50 YCT112- 4B 0.75 266
500X1300 1300 10~100 0~50 YCT160 -4A 2.2 345
500X1500 1500 10~100 0~50 Y2.2-1.0-50-32 2.2 767
500X2000 2000 10~100 0~50 Y2.2-1.0-50-32 2.2 609.4
500X2800 2800 10~100 0~50 YCT160- 4A 2.2 670
500 X3000 3000 10~100 0~50 YCT160 -4A 2.2 697
500 X4000 4000 10~100 0~50 YCT160- 4A 2.2 736
650X1500 650 1500 10~100 0~50 YCT160- 4A 2.2 610
650X2600 650 2600 10~100 0~50 YCT160- 4A 2.2 636
650X4000 650 4000 10~100 0~50 YCT160- 4A 2.2 893
800 X2000 800 2000 15~150 0~80 YCT160- 4A 2.2 721
800 X3000 800 3000 15~150 0~80 YCT200- 4B 7.5 857.3
800 X4000 800 4000 15~150 0~80 YCT200- 4B 7.5 1012
800X4500 800 4500 400 15~150 0~80 YCT160- 4A 2.2 1200
1000X2000 1000 2000 200~450 0~80 YCT160- 4B 3 1549
1000X2500 2500 200~450 0 ~100 YCT160- 4B 3 2105
1000 X6000 6000 200~450 0 ~100 YCT225- 4A 11 5214

【Successful case】

A mineral processing plant in Henan needed a feeder that can transport 2t tungsten. At first, the client chose vibration motor that is often burned. Because the maintenance space is narrow, and there is no lifting facility, so the maintenance difficulty is large, and it is not safe. After discussion with technical personnel, the client decided to choose Xinhai belt feeder. Compared with the former, short-distant belt feeder has smooth operation with low noise, and it’s easy to maintain, the ore amount is adjustable, there is no potential safety hazard in the process of work, ensuring normal operation of the whole production line.
