Metal Detector

Metal Detector

【Introduction】:
An electromagnetic induction device for detecting iron parts of conveying belt material
【Adapt to Belt Width】:
500~1400mm
【Improvement】:
Voice and light alarm function.

【Advantages】

Digital phase shifter and detection technology;

Stable performance;

High detection sensitivity;

Strong anti- interference ability;

Lower price;

Convenient operation and maintenance;

Long service life;

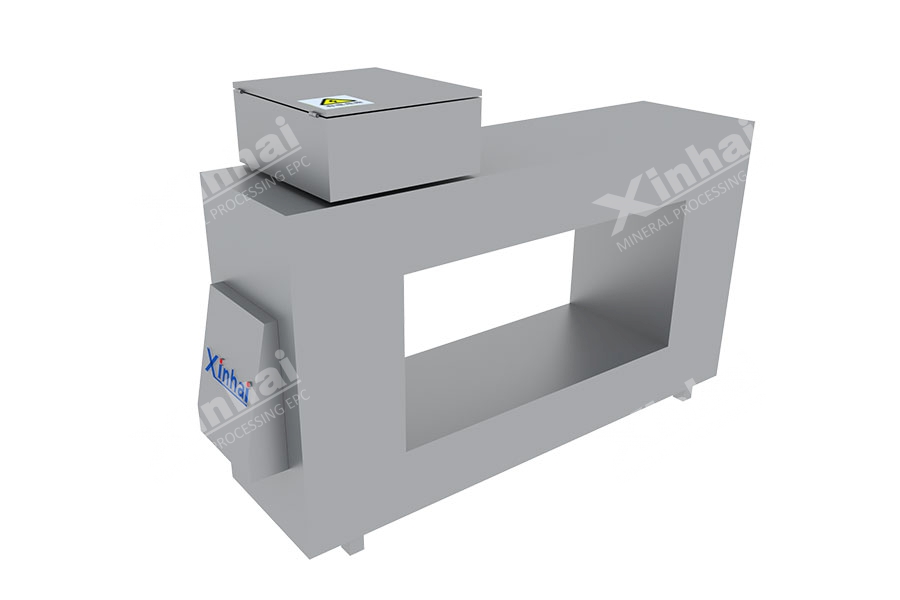

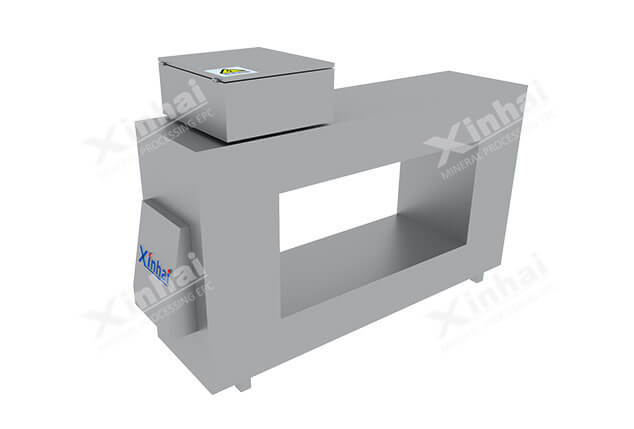

【Product Structure】

It uses the changing signal that produced when the metal enter into the sensor electromagnetic field, and through electronic technology to process and drive an actuator (electromagnet, motor switch) in order to remove harmful metals.

【Technical Parameters】

Model JTQ-500 JTQ -650 JTQ -800 JTQ -1000 JTQ -1200 JTQ -1400
Suitable for Belt Width (mm) 500 650 800 1000 1200 1400
Long Shaft with Inner Bore (mm) 700 850 950 1150 1370 1590
Short Shaft with Inner Bore (mm) 330 330 370 410 510 610
Max. Sensitivity for Normal Ore (mm) 20 ~25 25 ~30 25 ~30 35 ~40 45 ~50 55 ~60
Max. Sensitivity for Magnetic Ore (mm) 30 35 40 50 60 70

【Successful case】

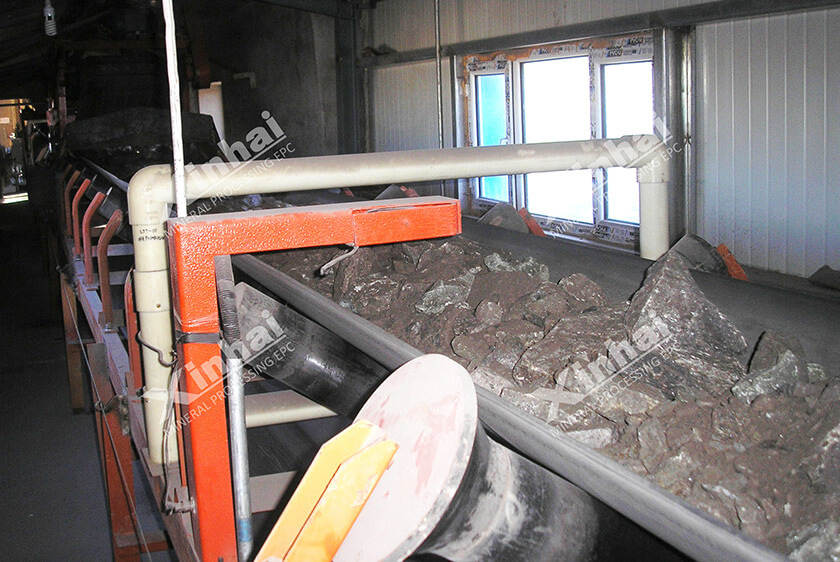

A gold processing plant in Hebei produced a large number of ore from the mines, after crushing, the customer chose Xinhai metal detectors for testing, effectively detecting the iron from the crushing ore. The detector performance is stable, and has strong anti-interference ability, it was not affected by the mineral magnetism in the whole detection process. The detected ore is extracted high grade gold concentrate after mineral processing, the impurity content is low, verifying the equipment performance. At the same time, the equipment structure is simple, the cost is low, saving the cost for the customer.
