Hydrocyclone

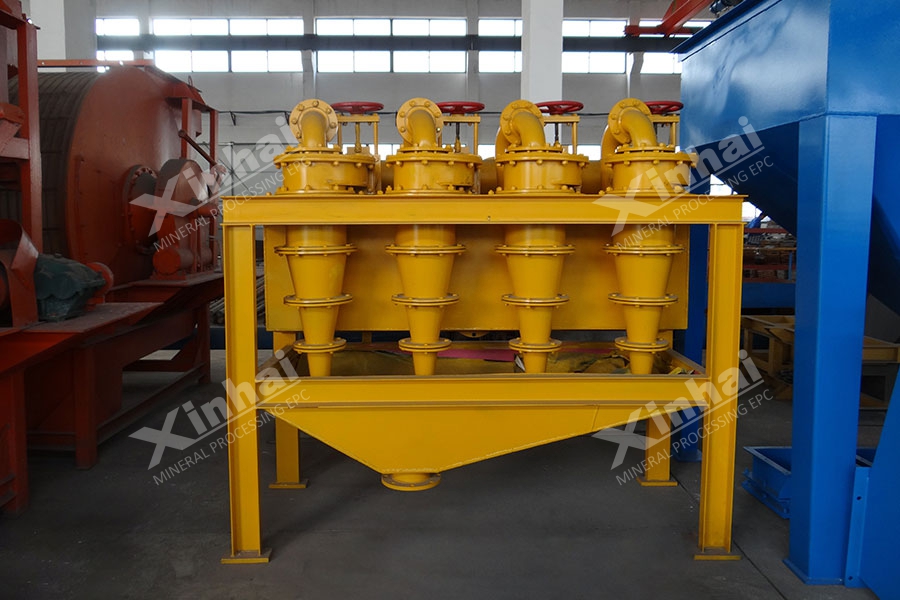

Hydrocyclone

【Introduction】:
A hydrocyclone with involute feeding
【 Capacity 】:
≤542m3/h
【Improvement】:
Unique involute feeding eliminating the disturbance, reduces wear and improves the classification efficiency

【Advantages】

The way of involute feeding through the inlet branch reduces the turbulence of the burst emanative flow when materials entry, makes a smooth movement of liquid inside cyclone, therefore gives a sharp classification. The rational length proportion of column and cone and reasonable insert depth of vortex finder Wear – resistant rubber as liners prolongs the service life by 2-4 times

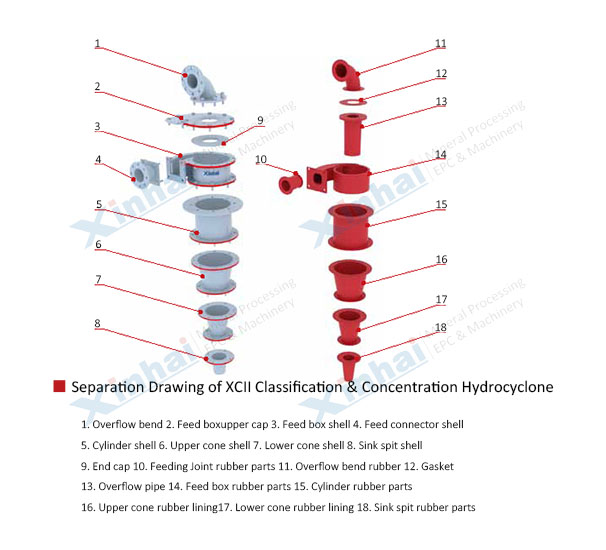

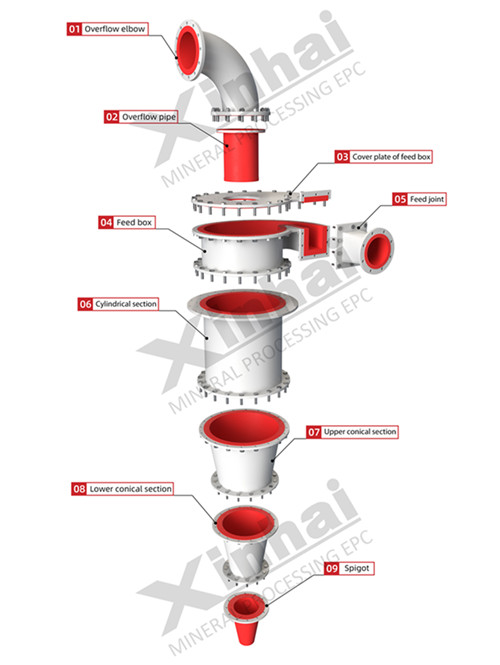

【Product Structure】

The working principle of Xinhai hydrocyclone is centrifugal sedimentation, when two phases (or three phases) mixed liquid is fed into hydrocyclone by a certain pressure liquid and produces strong three-dimensional-elliptic rotational movement. Due to the different density of particles, the centrifugal force, the centripetal buoyancy and drag force is different. So most coarse particles (or heavy phase) are discharged from cyclone underflow outlet, and the fine particles (or light phase) from the overflow tube, so as to achieve separation.

【Technical Parameters】

Model Spec. Processing Capacity (m3/h) Partition Size (μm) Diameter of Overflow Port (mm) Diameter of Dust- Setting Nozzle (mm) Inlet Pressure (MPa)
XC II F 150 150 10 ~23 25 ~74 30 ~50 8~22 0.06~0.15
XC II F 200 200 17 ~38 28 ~80 40 ~65 16 ~32
XC II F 250 250 24 ~53 30 ~82 65~100 16 ~40
XC II F 300 300 40~100 36 ~90 65~120 20 ~40
XC II F 350 350 56~118 40~100 80~120 30 ~70
XC II F 375 375 74~157 42~105 90~135 30 ~70
XC II F 450 450 90~192 44~110 100~150 30 ~70
XC II F 500 500 128~300 50~115 130~220 35~100
XC II F 550 550 155~368 52~120 140~240 35~100
XC II F 600 600 200~468 57~125 160~260 65~110
XC II F 660 660 237~524 60~130 180~280 80~150

【Successful case】

In the process of classification in gold processing plant, the owner found the classification effect is poorer, the solid-liquid separation is not obvious, thus the client increased several hydraulic cyclones. Xinhai hydraulic cyclone adopts involute feeding method, the involute feeding inlet is beneficial to increase the centrifugal force of material, improve classification effect, and greatly reduce the wear of flow box, and the classification index is higher, but the volatile is less. Customers are very satisfied with the result in application process.
