Home Product Valves Rubber Check Valve

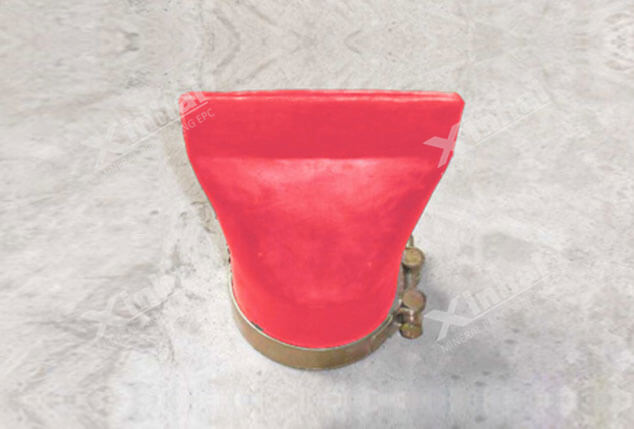

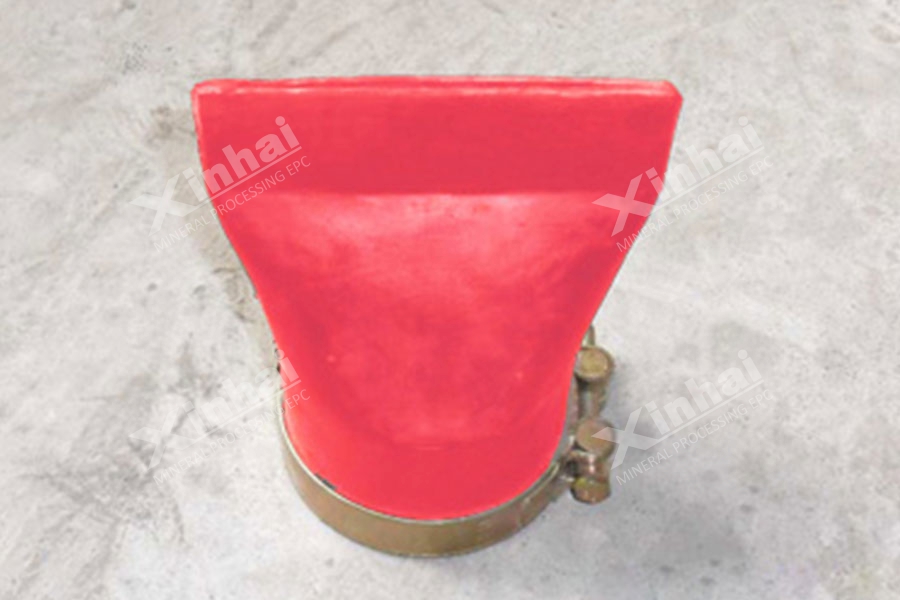

Xinhai wear rubber with wear resistance, corrosion resistance and high flexibility, the 0.25 mm Xinhai rubber strip stretches to out of shape until 800% length; the rubber prolongs the service life of the check valve 2 times. The opening is very easy because of the high elasticity of the rubber. 1 kilograms of fluid can easily open the valve without blockage. Relying on external pressure to close valve, clean closure, good sealing Under general conditions, the head loss can be reduced minimum. Xinhai rubber check valve can be customized in specs, size, color, etc. according to customers’ requirements. Xinhai rubber check valve adopts flange or pipe strap connection. Excellent resistance to frost, more suitable for cold areas
Click Image to Zoom

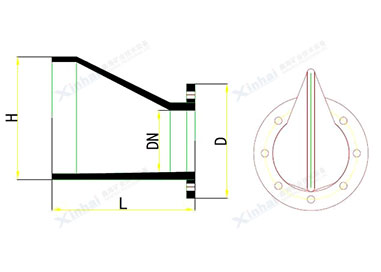

Xinhai rubber check valve opens by inner pressure difference, and closes by outer pressure. When in the forward work, the tiny water pressure can open the valve, and the pressure is greater, the valve opening is larger. In the reverse working, the valve naturally closes.
Please click customer service for detailed information.
In Sudan gold processing plant, the customer chose Xinhai rubber check valve, according to the actual circumstance of plant, Xinhai technical personnel adopted special flange connection, it has good sealing and corrosion resistance in operating process, and it can operated normally in harsh environments. Experimental data show that Xinhai NO.35 rubber flexible check valve can operating in 90˚C high temperature and soaked in 30% concentration sulfuric acid solution for 48 hours.

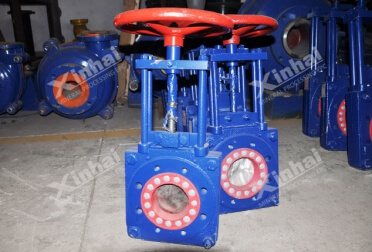

Knife Gate Valve
Rubber Check Valve
