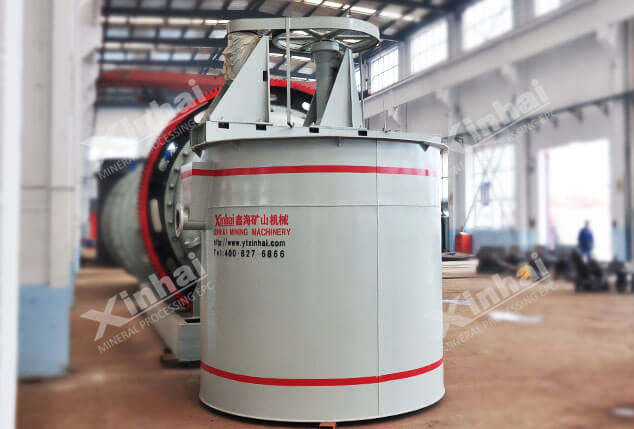

Agitation Tank

【Introduction】:
A traditional agitation equipment
【Volume】:
0.074~19.1m3
【Improvement】:
The creator of lining Xinhai wear- resistant rubber on cylinder, which is Xinhai agaitation tank design feature.

【Advantages】

The cylinder is lined with Xinhai wear-resistant rubber with strong resistance to wear and corrosion Strong agitation capability Stable operation, convenient maintenance Energy saving

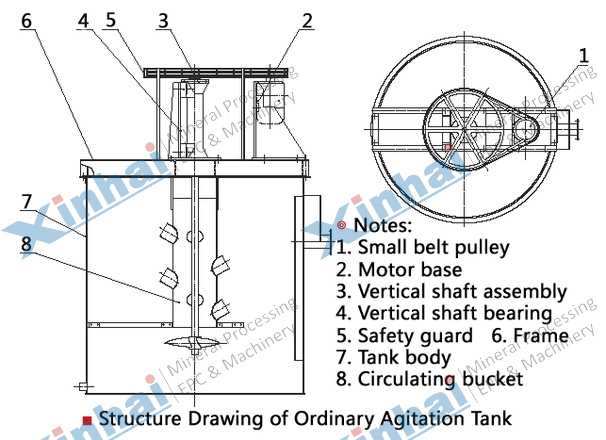

【Product Structure】

Agitation tank is mainly applied in slurry stirring before floatation, chemical and construction industry, cyanide chemical plant, sewage treatment plant, and coal plant etc.

【Technical Parameters】

Model Effective Volume (m3) Rotating Speed of Impeller (r/min) Diameter of Impeller (mm) Motor Model Motor Power
(kW)
Weight
(kg)
BJ-500X500 0.0785 493 160 Y80L-4 0.55 120
BJ-750X750 0.25 530 240 Y100L-6 1.5 240
BJ-1000X1000 0.58 530 310 Y100L-6 1.5 680
BJ-1500X1500 2.2 320 400 Y132S-6 3 790
BJ-1600X1800 2.6 331 400 Y132M2-6 5.5 990
BJ-2000X2000 4.4 230 550 Y132M2-6 5.5 1800
BJ-2000X2500 5.9 230 630 Y160M-6 7.5 2106
BJ-2500X2500 11.2 230 630 Y160M-6 7.5 2766
BJ-3000X3000 19.1 210 700 Y225S-8 18.5 4613
BJ-3500X3500 24 230 850 Y225M-8 22 5980
BJ-4000 X 4000 45 153 1000 Y250M-8 30 8910

【Successful case】

procase-Agitation-Tank

The iron ore dressing plant in Shanxi has a high ore hardness, the industrial agitator wear is large in the mixing process before flotation, and the equipment replacement is frequent, which increase a lot of cost. The plant has been struggling to find a good wear-resisting agitation machinery equipment. After consultation, the client purchased Xinhai agitation tank. The cylinder of Xinhai agitation tank is lining with wear-resisting rubber, greatly extending its service life, and saved the cost for the plant. Nowadays, Xinhai agitation tank has been operating in the plant's production line for last five years and it is still applied to production line.
