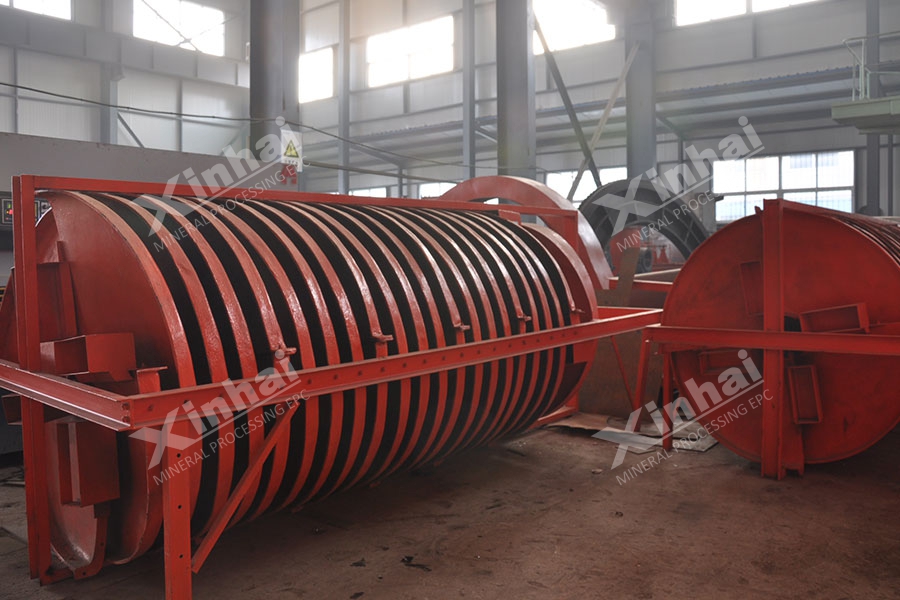

Spiral Chute

Spiral Chute

[Introduction]: A gravity separation equipment of separating minerals with different weight by the inertial centrifugal force generated in the spiral motion of pulp.

[Capacity]: 0.15~16t/h

[Improvement]: There are 3 kinds of chute for user to choose, glass steel chute, Xinhai wear-resistant rubber liner, polyurethane rubber liner.

ADVANTAGES

PRODUCT STRUCTURE

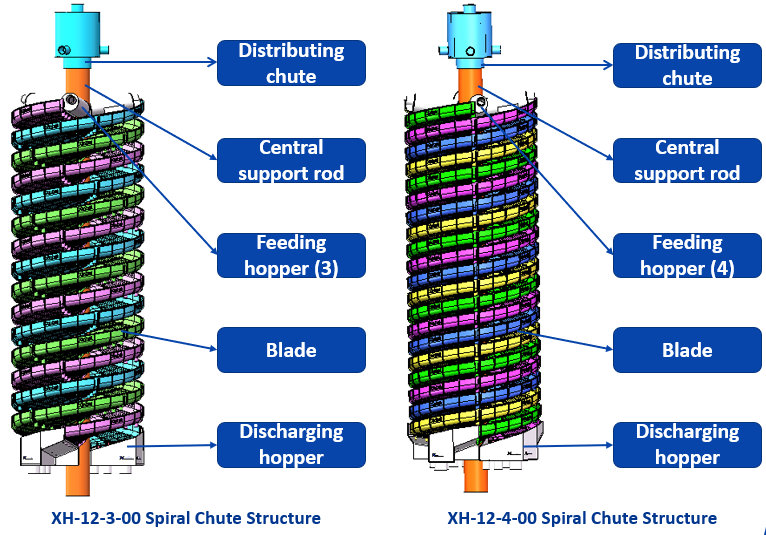

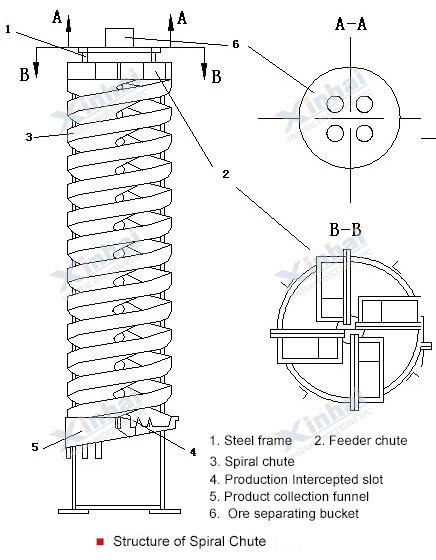

The uniform ore slurry is slowly fed to the spiral groove surface through the ore feeding trough installed at the head end of the spiral trough for sorting. The end of the spiral groove is equipped with a valve block-type product intercepting groove, and the sorted products are divided into three types according to the grade along the radial direction. The position of the regulating valve block is used to change the intercepting width of each product, and the product gathering bucket collects and derives the intercepted multi-head ore streams. The cross-section and the slope change of the curve are especially suitable for the selection of fine particle materials.

Spiral chute is suitable for the treatment of the 0.6-0.03mm lode and placer, but high mud content is bad for separation. At present, the spiral chute has been widely used in the treatment of iron ore, tungsten, tin ore, niobium tantalum ore, coastal and riverside placer, and gold ore.

TECHNICAL PARAMETERS

ModelBLL-2000BLL-1500BLL-1200BLL-900BLL-600BLL-400
Outside Diameter (mm)200015001200900600400
Screw Pitch (mm)1200900, 675900, 720, 540675, 540, 405450, 360, 270240, 180
Pitch Diameter Ratio0.60.48, 0.360.75, 0.6, 0.450.75, 0.6, 0.450.75, 0.6, 0.450.6, 0.45
Lateral Dip Angle (degree)
Max. Screw Numbers Per Set344422
Feed Size (mm)2.00~0.040.8 ~0.0370.3~0.030.3 ~0.030.2~0.020.2 ~0.02
Feed Density (%)30 ~5530 ~5525 ~5525 ~5525 ~5525 ~55
Capacity (t/h)7~106~84~62~30.8~1.20.15~0.2
Overall
 Dimension

Length    (mm)

2120160013601060700460

Width    (mm)

2120160013601060700460

Height    (mm)

560053005230400026001500
Weight (kg)900850/800700/650/600450/400/350120/100/8050

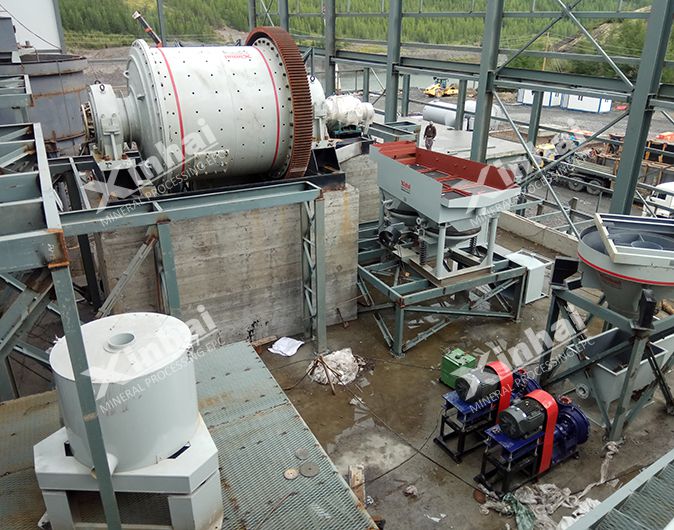

SUCCESSFUL CASE
