Home Mineral Processing EPC Installation
Equipped with the most experienced technical personnel on-site installation and debugging, making your equipment quickly put into production in the best state.
Installation and commission is key link of realizing dressing test, mine designand equipment manufacture, and directly takes influence on production.Installation and commission includes: equipment packing, shipping, site installation and commissioning.
Equipment packing and shipping is the most important preparation for installation and commissioning, which is directly related to whether the equipment can deliver well, whether the installation can be completed efficiently, whether the commission can reach the standard successfully.
Xinhai Mining tray packing, wooden packing, etc.
▶ Nude Packing
Nude packing is mainly used for some equipments that is wear resistant, high quality, and without packing, such as the steel that install the material, shell plate of equipment, which saves cost for customers.
▶ Bundle Packing
Bundle packing is suitable for angle steel, channel and steel pipe that used to install material, and the parts that with small size, large quantity and wear-resistant, such as stiffening plate, reinforcing plate and flange. Besides, it also demands shipping mark in the bundle packing equipment, indicating goods name, specification and quantity.
▶ Rope Bundle Packing
Rope bundle packing is suitable for delicate and brittle equipment, such as bearing, belt conveyor, electric drum, etc.
▶ Waterproof Winding Packing
Waterproof winding packing is suitable for all loose packaged equipment, secondary machine and electrical products, reducer, electric control cabinet, it adopts stretch film packaging, which is waterproof, anti-corrosion and wear-resistant.
▶ Snakeskin Bag, Airform Winding Packing
This packing method is mainly used for easily worn-off equipment that painted on surface which is rust-proof, wear-resistant and anti-collision.
▶ Wood Pallet Packing
Suitable for the goods with large quantity, easy to loosen and roll, such as blade of leaching tank, bracket of belt conveyor and carrier roller.
▶ Wooden Packaging
Wooden packing applies to the equipment with large quantity and small size, such as spare parts, laboratory facilities and electrical material. Wooden packing should be attached to packing list, packing detail and DMAX.
Waterproof Winding Packing
Rope Bundle Packing
Besides the super-long, extra-wide and ultra-high large equipment, Xinhai adopts 40 feet container to shipping for other equipment in overseas EPC projects, each container is designed by the professionals from Xinhai logistics department, making the maximum weight close to the container load weight on the premise of not wasting volume, making full use of every container, saving the packing cost and transportation cost for customers.
▶ Flat Rack
Flat rack is used for super-long, extra-wide and ultra-high large equipment and heavy goods. Such as ball mill, such asball mill, agitation tank, which is packaged by Xinhai logistics packing staff who have rich experience in packaging, ensuring equipment is reliable and safe.

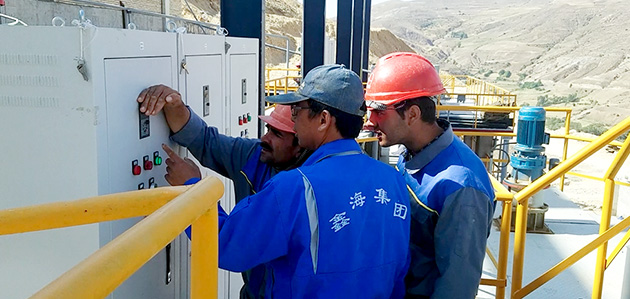

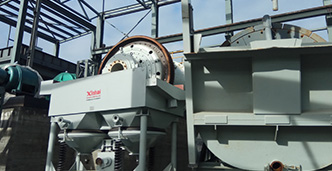

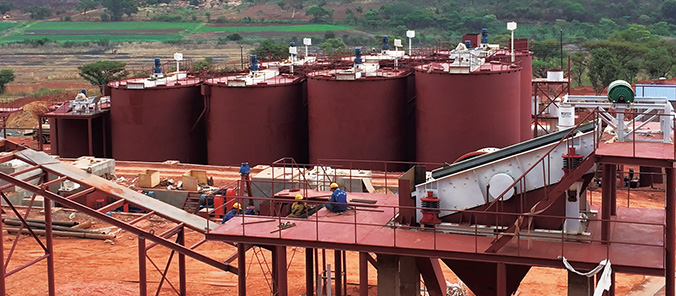

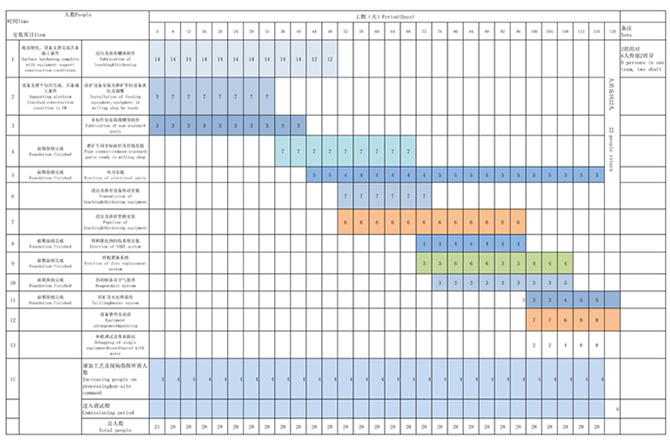

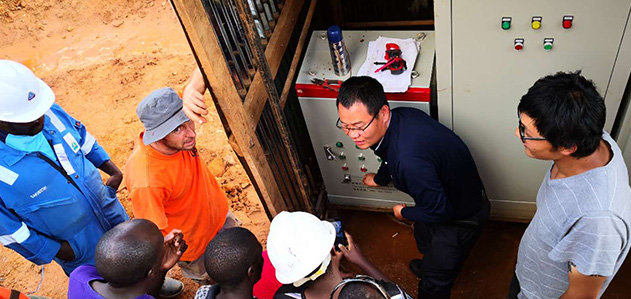

Installation and commission of dressing plant equipment is a very careful work with strong practicality. Any error may lead to low recovery which cannot reach the expectation. For example: in different construction, the same type of equipment would have deviation because of the opening location, installation, water and reagent usage, etc. These differences will have a significant impact on the final recovery rate.

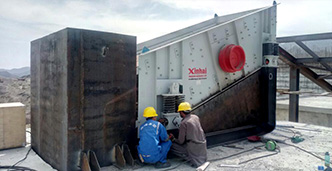

In view of the importance of installation and commission, Xinhai established professional installation company having four installation teams which are from the mine production line and led by engineering technicians who held the directors of dressing plant and mine leader. Installation personals Xinhai sent out participate in the whole mine design of clients, and there are two points for this: one is the old technicians are very familiar with structure, performance and using of Xinhai equipment; the other is the technician who can quickly solve many actual problems in plant construction understand the overall design of factory because of participating in the whole mine design.
For installation and commission, Xinhai upholds customer fist. There are 3 methods of installation and commission according to the actual situation of customers.
▶ Free guide of installation
Xinhai can send related viteran technician to guide customer with the equipment installation and commissioning for saving customer's cost.The customer should responsible for the travel charge of the technician.
▶ Contract for materials
Xinhai arranges the installation and commission technicians, and clients prepare the components and instruments of installation of commission.
▶ Contract for labor and materials
Xinhai is responsible for tools, materials and personnel allocation of the installation and commission. Customers can directly wait for the final results.
Split Joint Living Quarters Of Xinhai EPC
Since Xinhai Mining has founded, it always holds the idea of customer-oriented, Split joint living quarters is proposed by Xinhai Mining based on convenient customer service. Many mineral processing plants and mines of Xinhai customers are located in remote mountain area, the daily life of factory personnel becomes a big problem, split joint living quarters is easy to remove and storage, which can be used repeatedly, so it is the best choice for mineral processing plants in remote areas.
The following is split joint living quarters designed by Xinhai, the total staff number is 90 people, management and service personnel are 20 people, and workers are 70 people. Factory is equipped with office, dormitory, and dining room, laboratory, conference room, activity room, and restroom, wash bath.
Inside the Dormitory
Location of Dormitory
