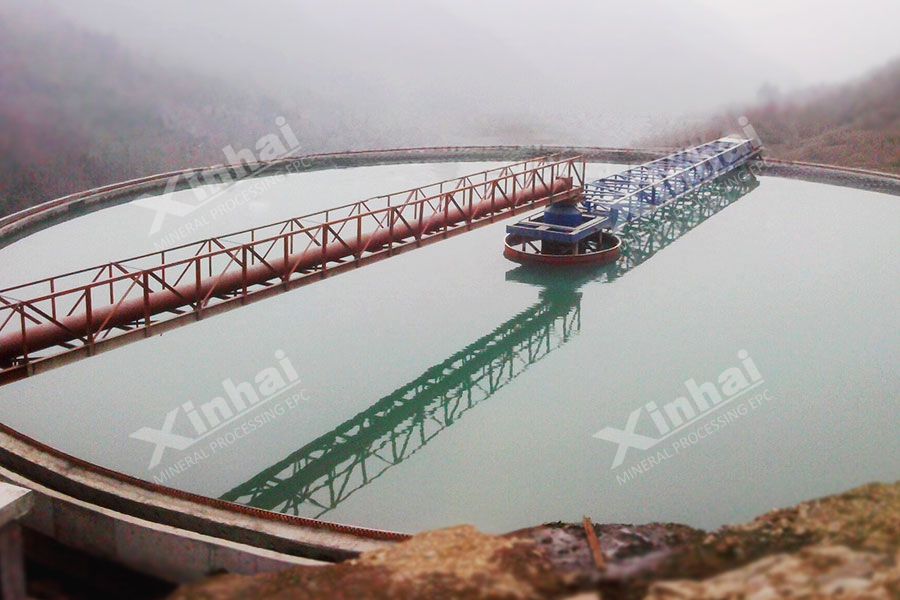

Peripheral Transmission Thickener

【Introduction】:
Peripheral transmission thickener has two kinds, peripheral roller transmission and peripheral gear transmission
【 Capacity 】:
87~3000t/d
【Improvement】:
Single row cross column rotary support or single row four point contact ball rotary support, collector device with good insulation, exposed rotary parts with light shield

【Advantages】

Unique bridge design, excellent rigid strength and strong overload capacity.

Peripheral roller transmission, low energy consumption, stable and reliable operation.

Simple operation, convenient maintenance and remote control.

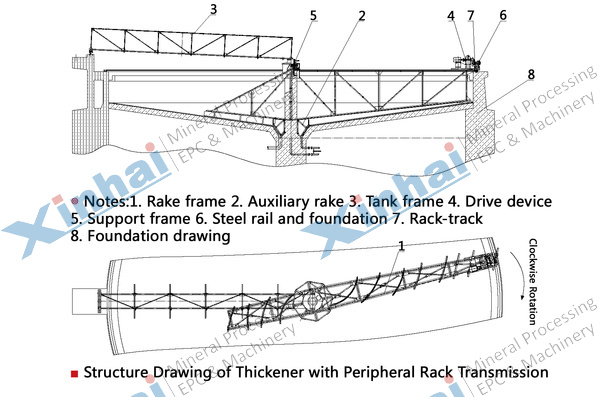

【Product Structure】

This thickener consists of round thickener and harrow scraping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.

【Technical Parameters】

Peripheral Roller Transmission Thickener

Model Thickening Tank Diameter (mm) Thickening Tank Center Depth (mm) Capacity
(t/d)
Subsidence Area (m2) Motor Model Motor Power
(kW)
Weight
(kg)
NG-15 15000 3612 88 〜390 177 Y132M2-6 5.5 11702
NG-18 18000 3500 127〜560 255 Y132M2-6 5.5 9718
NG-24 24000 3400 226〜1000 452 Y160M-6 7.5 24000
NG-30 30000 3940 353〜1570 707 Y160M-6 7.5 31000
NG-45 45000 5060 790〜2400 1590 Y160L-6 11 50640
NG-53 53000 5070 1000〜3400 2202 Y160L-6 11 60910

Peripheral Gear Transmission Thickener

Model Thickening Tank Diameter (mm) Thickening Tank Center Depth (mm) Capacity (t/d) Subsidence Area (m2) Motor Model Motor Power
(kW)
Weight
(kg)
NT-15 15000 3500 88~390 177 Y132M2-6 5.5 11702
NT-18 18000 3700 127~560 255 Y132M2-6 5.5 12120
NT-24 24000 3400 226~1000 452 Y160L-8 7.5 28270
NT-30 30000 3940 353~1570 707 Y160M-6 7.5 31000
NT-45 45000 5025 790~2400 1590 Y160L-6 11 58640
NT-53 53000 5070 1000~3400 1964 Y160L-6 11 69410

【Successful case】

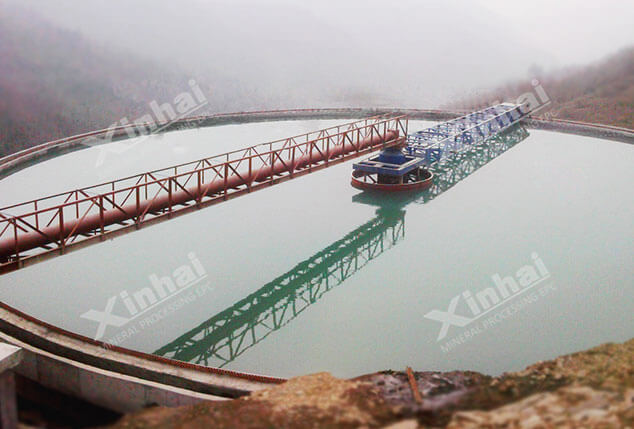

In a mineral processing plant, the production capacity is not up to demands due to central transmission thickener. After discussion, the customer adopted Xinhai peripheral transmission thickener. Its unilateral rake has much higher capacity, high efficiency, low consumptions and low power consumption, not only applies to concentrate thickening, but also applies to the dewatering of tailings, which is more suitable for production capacity.
