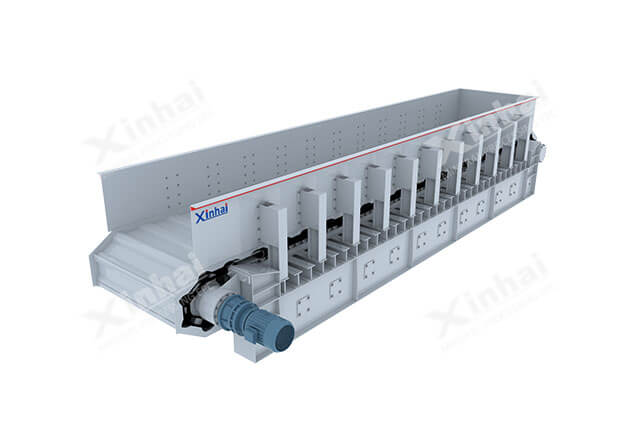

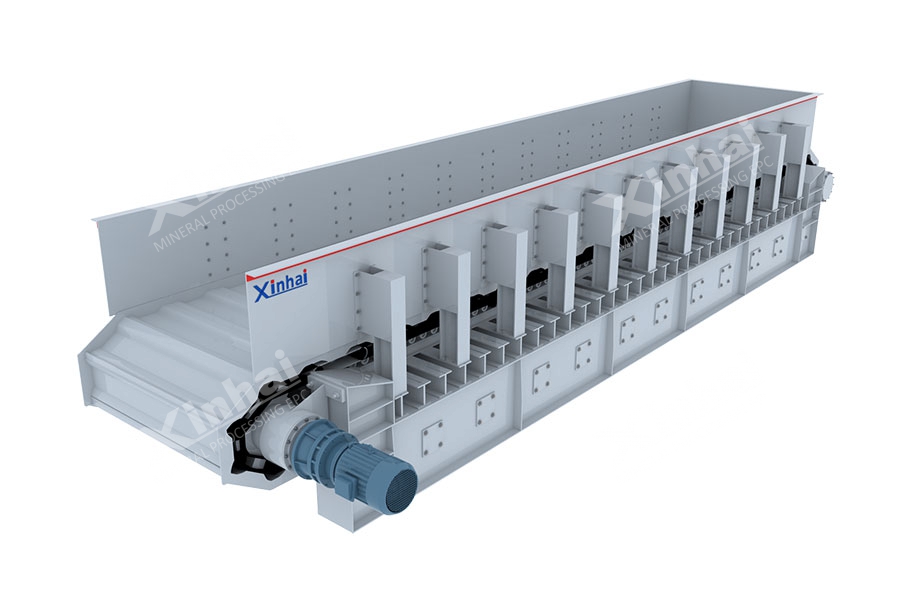

Plate-Feeder

Plate Feeder

【Introduction】:
A feeding machine for short distance transportation.
【 Capacity 】:
15~400m3/h
【Improvement】:
It can be classified into three types, heavy-duty plate feeder, middle-duty plate feeder and light-duty plate feeder. It can be equipped in different size by the requirement of clients.

【Advantages】

It can be installed both horizontally and slantly with the maximum slope angle of 12 degree.

In order to avoid materials blowing directly to the feeder, complete unloading is not allowed in the ore bin.

The max feed size can reach 1000 mm.

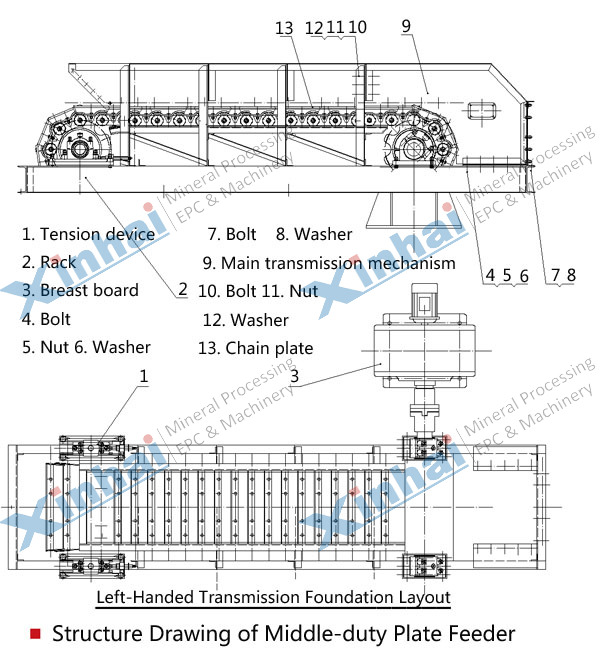

【Product Structure】

Heavy-duty plate feeder .
The main work of the feeder is to make the motor power through reducer, arrive the connecting rod of the eccentric gear do the reciprocating motion, and also make the pawl push the ratchet to drive the rotation of the chain wheel. Thereby the intermittent motion of the chain plate will begin so as to achieve the purpose of conveying materials.
Heavy-duty plate feeder: It is suitable for short distance transportation of the block materials with feed size of 1000 mm or less.
Medium-duty plate feeder: It is suitable for short distance transportation of the block materials with feed size of 400 mm or less. It usually applies to transport the materials with the loose density of less than 2400 kg/m3, the block weight of less than 500 kg, and the temperature of below 400 ℃.
Light-duty plate feeder: It is suitable for short distance transportation of the block materials with feed size of 160 mm or less. It usually applies to transport the materials with the loose density of less than 1200 kg/m3, the block weight of less than 140 kg, and the temperature of below 350 ℃.

【Technical Parameters】

Model Chain Plate Feed
Size
(mm)
Capacity
(m3/h)
Motor Overall Dimension (LXWXH) (mm) Weight
(kg)
Width
(mm)
Center Distance of Chain Wheel (mm) Speed
(m/s)
Model Power
(kW)
GBH80-2.2 800 2200 0.01 ~0.053 ≤300 15 ~91 Y132M-4 7.5 3840X2850X1185 3722
GBH80-3 3000 XWED106-385-4 4 4868X2705X1060 4014
GBH80-4 4000 Y132M-4 5640X2986X1185 5087
GBH80-5.8 5800 0.18 ≤300 15 ~91 XWED7.5-8215A-231 7.5 7760×2823.5×1321 6526.7
GBH100-1.6 1000 1600 ≤0.15 ≤350 22~131 Y160M-6 3240X3026X1235 3981
GBH100-3 3000 4640X3114X1235 4548
GBH100-4 4000 0.01 ~0.053 22~131 XWED106-385-4 4 5648x2890x1160 5086
GBH120-1.8 1200 1800 ≤0.15 300-400 35~217 Y160M-6 7.5 3440X3314X1235 3965
GBH120-2.2 2200 3840X3314X1285 4238
GBH120-2.6 2600 4240X3314X1285 4572
GBH120-3 3000 XWED7.5-8215A-273 4960X3150X1434 4886(Exclude
Reducer)
GBH120-4 4000 Y160M-6 5640X3402.5X1285 6100
GBH120-4.5 4500 XWED7.5-8215A-273 6460X3150X1434 6350.6
(Exclude
Reducer)
GBH120-6 6000 300-400 35~217 XWED11-8225B-273 11 7960x3242x1434 8210
