【Introduction】:

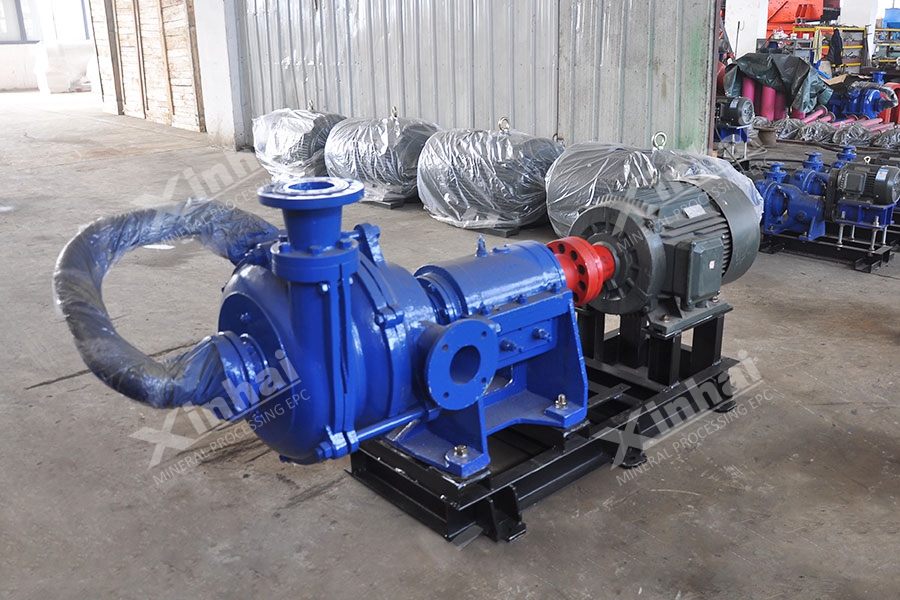

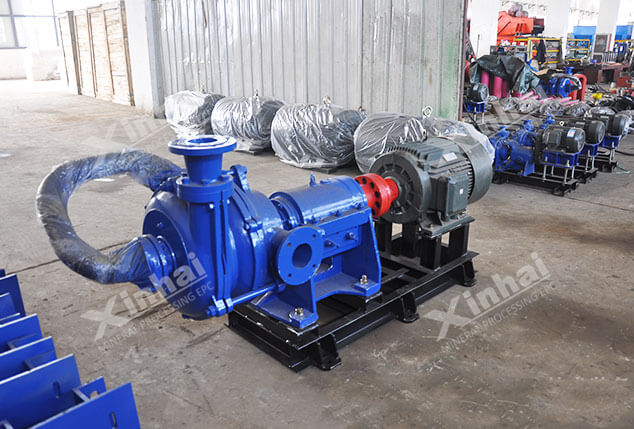

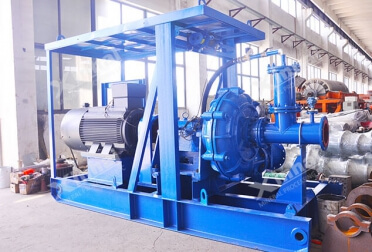

A double stages slurry pump with head of 70m
【 Capacity 】:
Flow≤203m3/h
【Improvement】:
Double impellers serial design without increasing the diameter of the impeller makes head up to 70 meters

【Advantages】

Break through the head limit (60 meters) of rubber pump, up to 70 meters;

Impellers and casings lined with Xinhai No. 35 high wear-resisting rubber, the life is 2-4 times longer than the life of metal pump;

The rubber slurry pump with resistance to wear and corrosion and high head;

Packing sealing, simple and reliable, no leakage.

It is easy to replace wet parts

【Product Structure】

The main component is a cylinder with diameter and length at a reasonable proportion. Driven by the transmission device, the cylinder rotates with the materials fed from the cylinder inlet and crushed by the falling impacts and autogenous grinding of the steel balls and ores in the cylinder. Due to the continuously feeding materials, the pressure pushes materials to the outlet and the grinded materials are discharged from the cylinder outlet. Qualified materials flow from the cylinder outlet. In wet grinding, the materials are taken out by the water flow. There are backpitch impellers in the hollow shaft, which can make the balls and coarse ores in the overflow return to the mill. With simple structure, higher operation rate, and rolling bearing, the energy conservation is significant.

【Technical Parameters】

Items
Model
Rotation Speed
(r/min)
Flow
(m3/h)
Head
(m)
Max shaft power
(KW)
Referenced motor (KW)
Model Power
XPA(2)-50 1480 27.5 76.0 22.3 Y225S-4 37
1480 41.4 72.2 22.3 Y225S-4 37
1480 55.2 66.1 22.3 Y225S-4 37
1480 69.0 56.0 22.3 Y225S-4 37
1480 80.0 43.5 22.3 Y225S-4 37
XPA(2)-65 1480 40.0 76.0 32 Y225M-4 45
1480 60.0 72.2 32 Y225M-4 45
1480 80.0 66.1 32 Y225M-4 45
1480 100.0 56.0 32 Y225M-4 45
1480 115.0 43.5 32 Y225M-4 45
XPA(2)-75 1480 56.0 73.3 49 Y250M-4 55
1480 85.0 69.0 49 Y250M-4 55
1480 113 62.5 49 Y250M-4 55
1480 150 51.2 49 Y250M-4 55
1480 169 44.0 49 Y250M-4 55
XPA(2)-100 1480 70.0 73.5 62.5 Y280S-4 75
1480 105 71.6 62.5 Y280S-4 75
1480 140 68.6 62.5 Y280S-4 75
1480 186 61.9 62.5 Y280S-4 75
1480 245 48.5 62.5 Y280S-4 75
XPA(2)-100-Ⅰ 1480 79.7 80.0 78.2 Y280M-4 90
1480 119 78.0 78.2 Y280M-4 90
1480 159 74.8 78.2 Y280M-4 90
1480 211 67.5 78.2 Y280M-4 90
1480 279 52.9 78.2 Y280M-4 90
XPA(2)-100-Ⅱ 1480 58.0 91.8 64.7 Y280M-4 90
1480 87.0 89.1 64.7 Y280M-4 90
1480 116 85.7 64.7 Y280M-4 90
1480 154 77.3 64.7 Y280M-4 90
1480 203 60.6 64.7 Y280M-4 90

【Successful case】

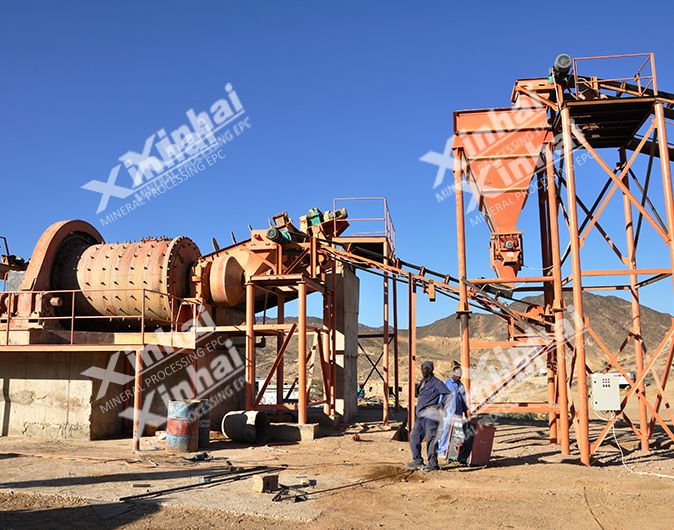

An iron ore plant in Sudan needs a pump to push slurry into the pump box before pulp stirring. At first, the slurry pump head that plant selected before can only be up to 50m, which still cannot reach the height of the pump box. After learned the products details by Xinhai website, the customers purchased Xinhai XPAⅡhigh head wear-resisting rubber slurry pump. This device adopts double impeller series set, the head is as far as 70m, and combined with Xinhai wear-resisting rubber, the service life is as2-4 times as metal high head slurry pump, saving a lot of cost for the plant.
