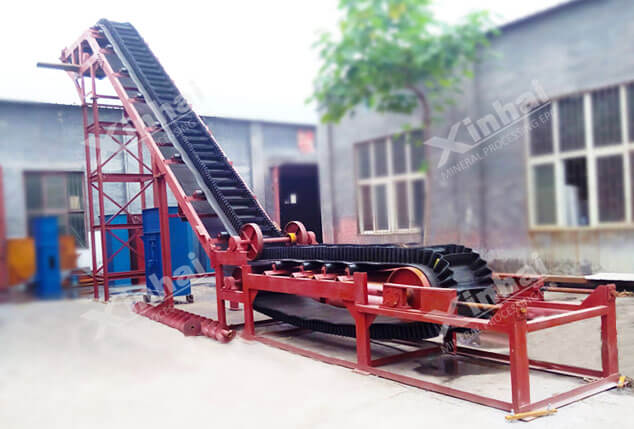

Belt Conveyor with High Inclination Angle and Waved Guard Side

【Introduction】:
A belt conveyor with short distance and large inclination angle.
【 Capacity 】:
13-794 m3/h
【Improvement】:
The conveying belt with wave shaped guard side and transverse diaphragm, and the conveying obliquity is 0° -90°.

【Advantages】

Large lifting height Large conveying angle, small area taken, reduce equipment investment and construction cost In vertical layout, full closed setting, good sealing performance, little dust, good environmental protection It is widely used in coal, building materials, grain, chemical industry, electricity department, underground mining engineering, strip mining, huge automatic ship discharging etc.

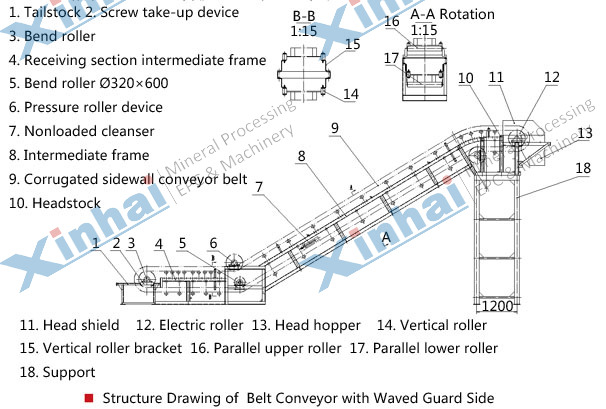

【Product Structure】

Belt conveyor with high inclination angle and waved guard side is bonded with rubber waveform vertical “skirt” with free expansion. The skirt is bonded with transverse diaphragms with a certain intensity and elasticity, which makes the material convey in the bucket.

【Technical Parameters】

Belt Width (mm) 500 650 800 1000
Guard Side Height (mm) 80 120 160 80 120 160 120 160 200 160 200 240
Dip Angle (R) 30。 2.0 2.0 2.0 1.6 2.0 2.0 2.0 2.5 2.5 2.5 2.5 2.5
100 120 120 100 140 160 140 180 200 180 250 280
40。 2.0 2.0 2.0 1.6 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.5
100 120 120 100 140 160 140 180 200 180 250 280
50。 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 2.0
80 120 140 80 120 140 120 140 180 140 180 220
60。 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
80 120 140 80 120 140 120 140 180 140 180 220
70。 1.25 1.25 1.25 1.25 1.25 1.25 1.6 1.6 1.6 1.6 1.6 1.6
50 60 100 50 60 100 120 100 140 100 140 180
90。 1.0 1.0 1.0 1.25 1.25 1.25 1.25 1.25 1.25 1.25 1.25 1.25
50 60 80 50 60 80 60 80 100 80 100 140
Belt Width (mm) 1200 1400 1600
Guard Side Height (mm) 160 200 240 300 200 240 300 400 200 240 300 400
Dip Angle (R) 30。 2.5 3.15 3.15 3.15 3.15 3.15 3.15 3.15 3.15 3.15 3.15 3.15
160 250 280 310 250 280 350 350 250 280 350 350
40。 2.5 2.5 3.15 3.15 2.5 3.15 3.15 3.15 2.5 3.15 3.15 3.15
200 250 280 310 250 280 350 350 250 280 350 350
50。 1.6 2.0 2.5 2.5 2.0 2.5 2.5 2.5 2.0 2.5 2.5 2.5
140 180 220 280 180 220 280 320 180 220 280 320
60。 1.6 1.6 1.6 2.0 1.6 1.6 2.0 2.0 1.6 1.6 2.0 2.0
140 180 220 280 180 220 280 320 180 220 280 320
70。 1.6 1.6 1.6 2.0 1.6 1.6 2.0 2.0 1.6 1.6 2.0 2.0
100 140 180 200 140 180 200 250 140 180 200 250
90。 1.25 1.25 1.25 1.25 1.25 1.25 1.25 1.25 1.25 1.25 1.25 1.25
80 100 140 160 100 140 160 200 100 140 160 200

【Successful case】

procase-Belt-Conveyor-with-High-Inclination-Angle-and-Waved-Guard-Side

A concentrator in Shandong is located in low-lying regions, a large number of iron ore need to be transported to 50m outside, so the customer selected Xinhai belt conveyor with high inclination angle and waved guard side, therefore, Xinhai specially increased lubricant for feeder, deepened the guard device, ensuring that the transmission angle of belt conveyor can be adjusted flexibly, and no ore falling. Customer said there is no blocking chain, floating chain and broken chain in operation. View details
