Rod Mill

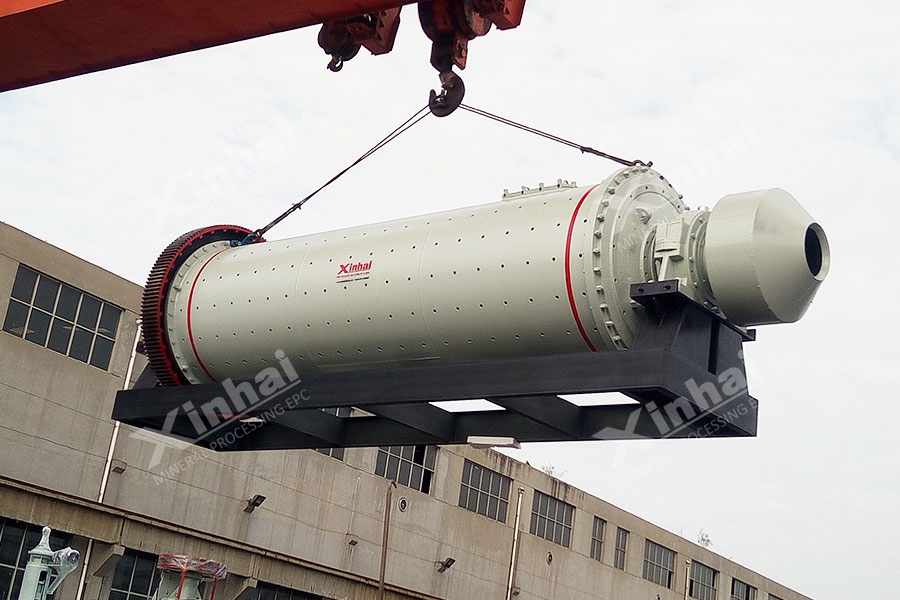

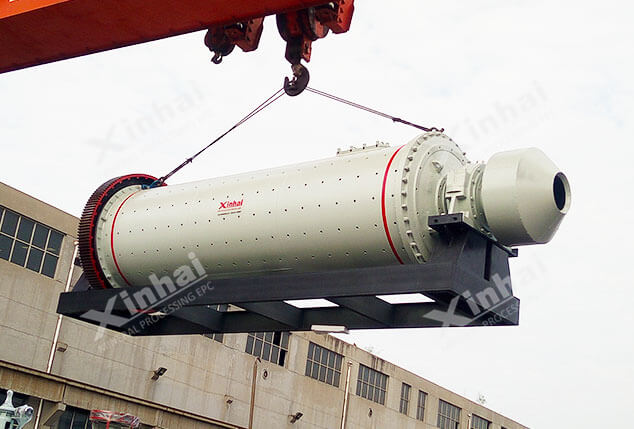

Rod Mill

[Introduction]: Rod mill is a grinding equipment with steel rod as medium

[Capacity]: 0.62~250t/h

[Improvement]: Xinhai rod mills include overflow rod mill, end peripheral discharge rod mill and center peripheral discharge rod mill, which could meet different requirements.

ADVANTAGES

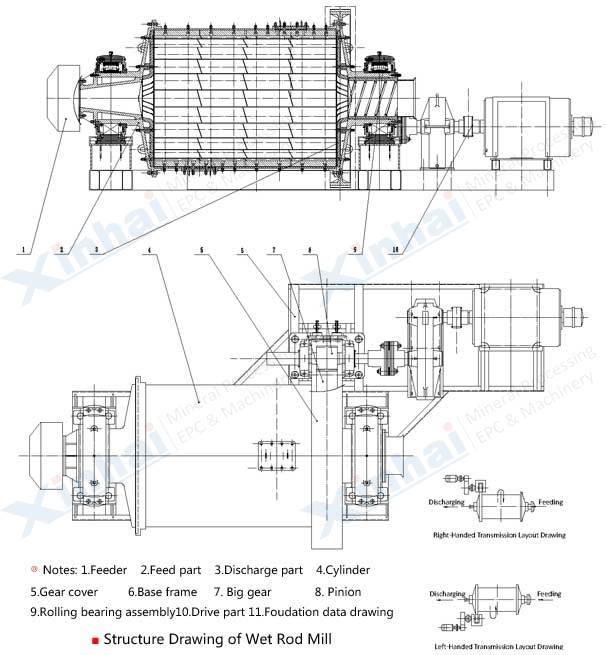

PRODUCT STRUCTURE

(1) Rod mill is usually selected in order to prevent over-grinding in gravity or magnetic separation plant of tungsten tin and other rare metals mine;


(2) In two stages grinding,  the capacity of rod mill in the first stage grinding is larger than that of ball mill;


(3) In some cases, rod mill can replace short head cone crusher.

TECHNICAL PARAMETERS

ModelCylinder
 Diameter
 (mm)
Cylinder
 Length
 (mm)
Motor ModelMotor
 Power
 (kW)
Motor
 Revolution
 (r/min)
Length
 (mm)
Width
 (mm)
Height
 (mm)
Capacity
 (t/h)
Effective
 Volume
 (m3)
Weight
 (kg)
MBY09189001800Y225M-8227304980237020200.62~3.20.95700
MBYg09249002400Y225M-8227305001186514000.81~4.31.26443
MBY122412002400Y280M-8457306450280025000.4 ~4.92.2812308
MBY153015003000JR125-895725793531852280519990
MBYg153015003000JR117-8807257253307022802.4 ~7.5521210
MBYg213021003000JR136-818073581224220307314 ~35942123.5
MBYg213621003600JR137-821073589584320302543 ~6110.845800.5
MBYg243024003000JR138-82807359004.54836.4349011.555795
MBYg273227003200JR157-8320750105095000362015.783110
MBYg273627003600JR1510-8380743107645150362032 ~8617.790441
MBY274027004000TDMK400-32400187.5123005700470043~11020.475000
MBY304030004000JR1510-857074098003900390054~1352690000
MBY324532004500TDMK800-36800167146007000530064~18031113000
MBY364536004500TDMK1250-401250150152008800680080~23041.8139000
MBY365436005400TDMK1600-4016001501590088006800100~25049.7150000
