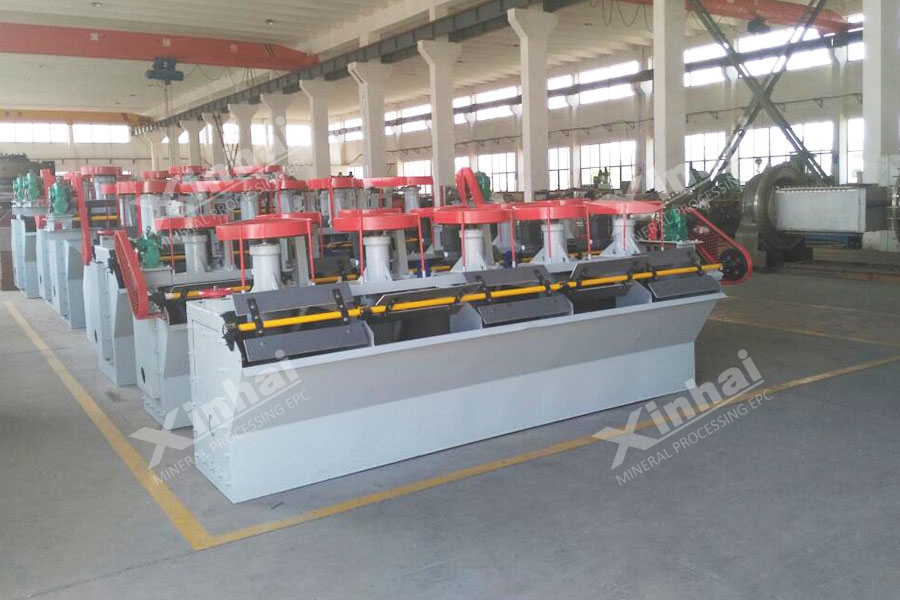

BF Flotation Cell

【Introduction】:
A mechanical agitation type floatation cell unit with self-air suction and combination of slurry suction/no slurry suction
【Volume】:
0.15~ 24m3
【Improvement】:
BF flotation cell has two types: type I and type II. Type I is improved as suction cell referring to model SF; type II is improved as direct flow cell referring to model JJF. Both are briefly called model BF.

【Advantages】

Large air suction volume, low energy consumption

Each tank with air suction, slurry suction and floatation function does not need any accessory equipment to form floatation circle, which is convenient for process flow changing

The reasonable slurry circulation minimizes coarse sand sediments

Auto-control device of slurry volume, convenient adjustment

【Product Structure】

BF floatation cell is composed of impeller, cover plate, main shaft, the center tube, and tank etc..

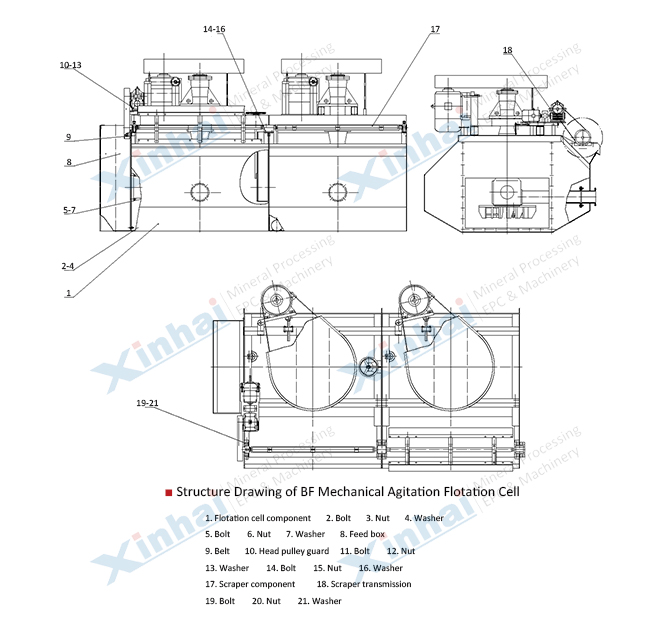

The impeller is installed on tank main beam driven by V-belt and motor. The impeller is composed by double cones that produce strong slurry lower circulation. In addition, slurry auto-control device adjusts liquid surface.

BF flotation cell is widely used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, like gold flotation process, which are subject to roughing and cleaning of large and middle scale floatation plants.

【Technical Parameters】

Model Effective
Volume
(m3)
LXWXH
(mm)
Impeller
Diameter
(mm)
Circular Velocity of Impeller
(m/s)
Air Suction Amount
(m3/m2.min)
Motor Model Motor
Power
(kW)
Capacity
(m3/min)
Single Tank Weight (kg)
BF-0.15 0.15 550X550X600 200 6 0.9-1.05 Y112M-6 2.2 0.06~0.16 270
BF-0.25 0.25 650X600X700 250 Y100L-6 1.5 0.12~0.28 370
BF-0.37 0.37 740X740X750 286 7.2 Y90L-4 0.2~0.4 470
BF-0.65 0.65 850X950X900 300 7.35 0.9~1.10 Y132S-6 3 0.3~0.7 932
BF-1.2 1.2 1050X1150X1100 450 7.02 Y132M2-6
Y132M1-6
5.5
4
0.6~1.2 1370
BF-2.0 2 1400X1450X1120 500 7.5 Y160M-6 7.5 1.0~2.0 1750
BF-2.8 2.8 1650X1650X1150 550 8.06 Y180L-8 11 1.4~3.0 2130
BF-4.0 4 1900X2000X1200 650 8 Y200L-8 15 2.4 ~4.0 2585
BF-6.0 6 2200X2350X1300 700 7.5 Y225S-8 18.5 3.0~6.0 3300
BF-8.0 8 2250X2850X1400 760 Y225M-8 22 4.0 ~8.0 4130
BF-10 10 2250X2850X1700 7.52 5.0 ~10 4500
BF-16 16 2850X3800X1700 850 8.7 Y280S-8 37 8.0 ~16 8320
BF-20 20 2850X3800X2000 Y280M-8 45 10.0 ~20 8670
BF-24 24 3150X4150X2000 920 Y315S-8 55 12.0 ~24 8970

【Successful case】

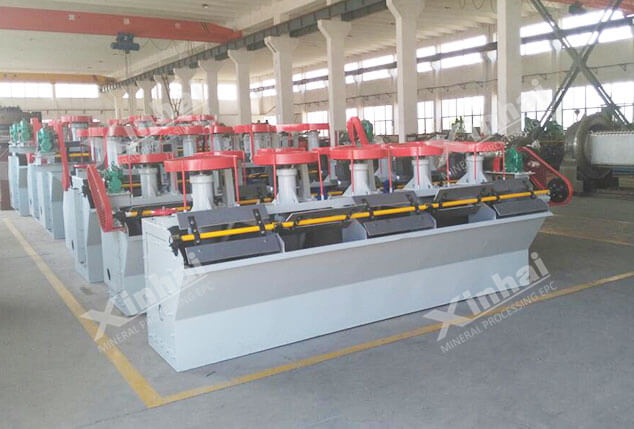

BF-Flotation-Cell

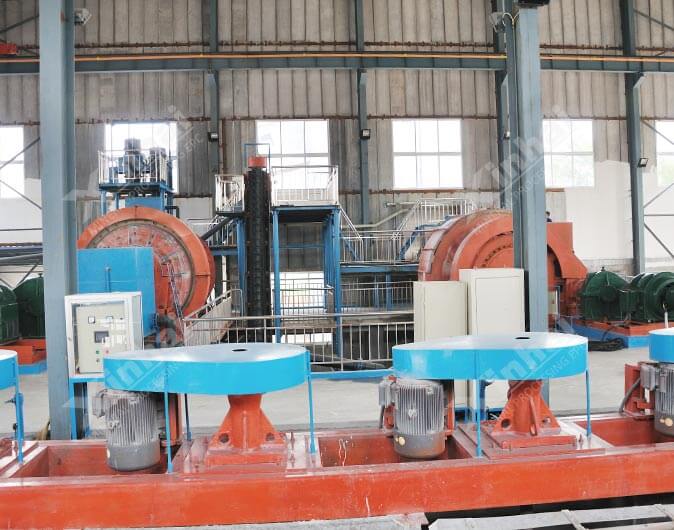

In 2008, an iron ore flotation plant in Sudan purchased Xinhai this type flotation machine. Each index of BF flotation cell is better than 5a flotation cell, single-capacity saves 23.96% power, in the case of the selected iron coarse and concentrate grade is lower than 20%, iron recovery rate increased by 6.58% through re-election of BF flotation cell, the energy consumption reduced by 15% ~ 30%, avoiding unnecessary waste of resources and saving a series of cost for the plant.
