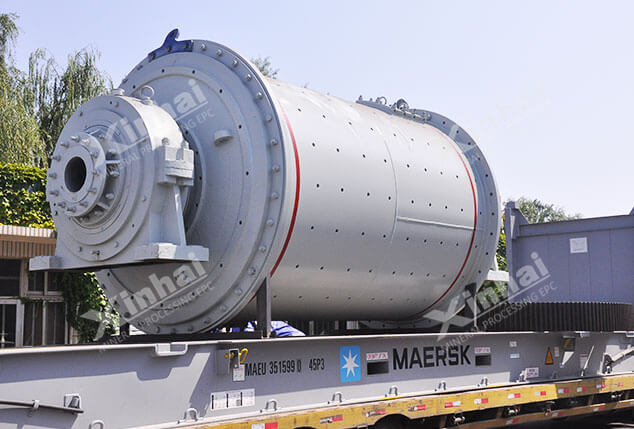

Dry Rod Mill

【Introduction】:
A dry grinder machine with fine discharging fineness.
【 Capacity 】:
64-180t/h
【Improvement】:
Xinhai dry rod mill is developed with the international technical level, that is featured with simple structure, strong production capacity, especially suitable for the fine materials.

【Advantages】

1. Uniform grinding particle size. The product particle size of dry rod mill in the open-circuit grinding operation is almost the same as the product particle size of ball mill in the closed-circuit grinding operation.
2. Adopts the advanced feeding and discharging controlled technology, and adopting the appropriate grinding medium according to the grinding materials, which changes the previous face-contact to line-contact and make the discharging particle size of dry rod mill more uniform.
3. The discharging particle size of dry rod mill can be adjusted according to the customer demand. The dry rod mill is built with fineness control device and screening device, which avoids over-grinding and prevent the unqualified products from mixing in the finished product.
4. The particle size characteristics of dry rod mill are related to the grinding conditions. When the steel rod collides with the ore, the coarse material will be ground first, and then the smaller material, which reduce the over-grinding problem.
5. When the steel rod rises along the lining plate, the fine particle sizes pass through the rod gap, which is also conducive to crushing coarse particle sizes, making the coarse particle sizes concentrate in the grinding location of the steel rod. Therefore, the product of the dry rod mill is more uniform.

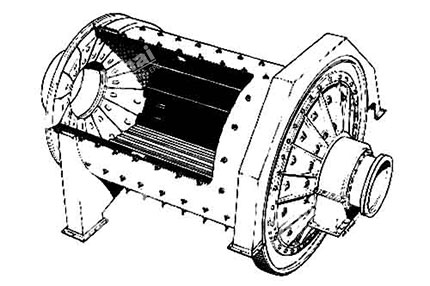

【Product Structure】

The working principle of dry rod mill is the same as that of wet rod mill. The gearing-down of electrical machinery and peripheral gear drives the cylinder body rotates. The appropriate steel rod is installed in the cylinder body as the grinding medium. Under the action of centrifugal force and friction force, the grinding medium is lifted to a certain height and dropped down. The materials are continuously sent into the cylinder body from the feeding port, then crushed by the moving grinding medium, and discharged out of the dry rod mill by the overflow and the continuous feeding.

【Technical Parameters】

Models Cylinder Size(mm) Cylinder Speed
(r/min)
Feed Particle Size
(mm)
Discharging Particle Size(mm) Processing Capacity(t/h) Power(kw) Power(t)
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5.9
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6.7
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 13.9
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 19.8
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 34.9
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 46.5
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 48.7
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 59.7
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 92.5
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 95
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 149

【Successful case】

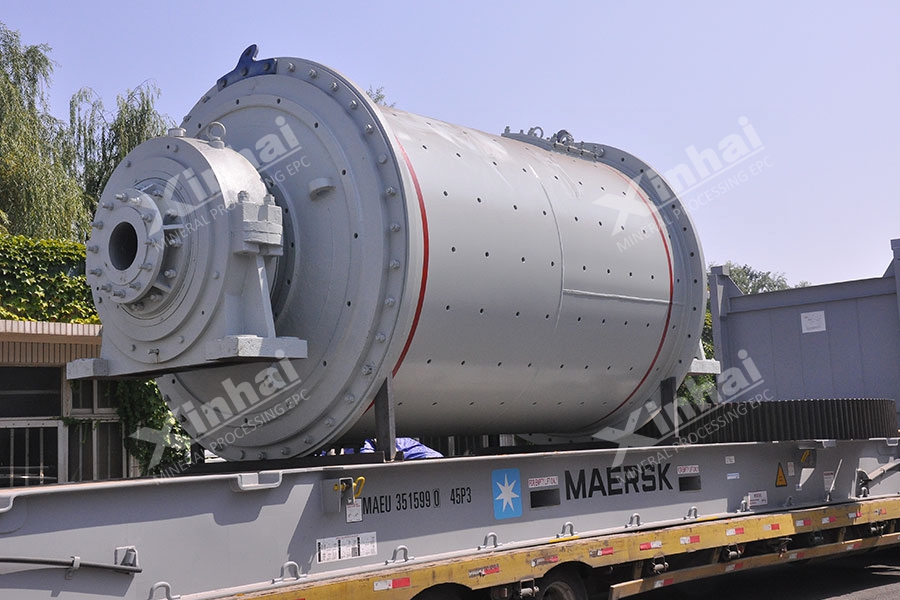

dry-rod-mill

In Shandong sand plant, Xinhai dry rod mill was adopted in the open-circuit grinding operation with 45mm feeding particle size, 0.21mm discharging particle size and 145t/h processing capacity. Up to now, the dry rod mills are still in good situation, without any failure.
