XCI Hydrocyclone working principle

2016-06-29 Xinhai Views (1373)

If you want to know more information, like quotation, products, solutions, etc., please contact us online.

Hydrocyclone is a common classification and concentration equipment in the mineral processing plant at present. It has many advantages of simple structure, easy manufacture, high fine classification efficiency and small area occupation and so on. But it is easily worn and has a short service life. At the same time to fully develop the advantages of hydrocyclone, Xinhai largely overcomes the disadvantaged of hydrocyclone and continue to optimize the design. Finally, XCI hydrocyclone was born which has a large number of advantages.

The working principle of the XC1 type hydrocyclone is similar to that of the ordinary cyclone. The slurry is pressed into the feeding pipe and make a rotary motion in the cyclone. The coarse particles with heave gravity and centrifugal force will make spiral motion along the cylinder and are discharged from the sediment port. Fine particles by small gravity and centrifugal force and continue ore feeding will be pressed to the center of the cyclone and make the upward spiral movement. Finally, it is discharged from the overflow port.

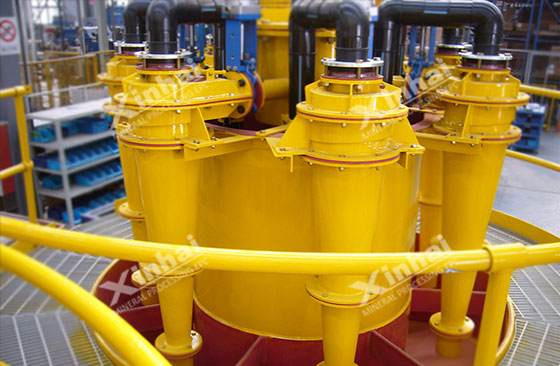

overflow pipe of hydrocyclone

It adopts three-dimensional snail type feeding structure, achieves three dimension feeding from the circle and axis direction, eliminates the confused flow disturb nearby the overflow tube after materials get into the cyclone and improve the classifying efficiency. Square tube feeding type makes materials closer to the wall of the cyclone and causes the least resistance to minerals and largest radiation strength and least abrasion to the feeding box. The unique cone adjusting device at the feeding inlet can adjust the size of the cyclone inlet to improve the classifying efficiency. The cone-adjusting valve increases the number of changeable parts in the inlet tube, avoiding the trouble of changing the whole liner of the cyclone. A professional cyclone selection software will help you to choose a correct type rapidly.

The XCI hydrocyclone can be widely suitable for separation and dewatering operation for all kinds of minerals. If you are interested in the cyclone, please feel free to contact us.
