Mineral Processing EPC+M+O

Xinhai devotes to providing “Turn-key Solutions for Mineral Processing Plant (EPC+M+O)”, namely “design and research - complete equipment manufacturing and procurement - commissioning and delivery - mine management - mine operation”. The essence of “EPC+M+O Service” is to ensure sound work in every link. The model is suitable for most of the mines in the world.

E

ENGINEERING

Test Design
P

PROCUREMENT

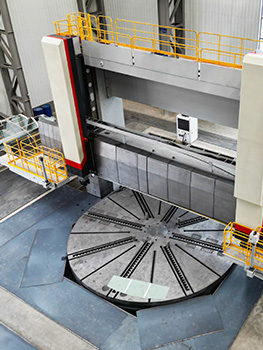

Manufacturing Packing & Shipping
2000+

Serviced Mines Around the World

500+

Mine EPC+M+O Projects

100+

Export Countries & Regions

70+

Mineral Processing Technologies
C

CONSTRUCTION

Installation Training Fulfillment
M+O

MANAGEMENT

Management Operation

Mineral Processing Equipment

Xinhai focuses on the research and development and innovation of mineral processing equipment, and has obtained more than 100 national patents. It strives for perfection and strives to complete the combination of equipment and technology, improve productivity, reduce energy consumption, prolong the stable operation time of equipment, and provide cost-effective services.

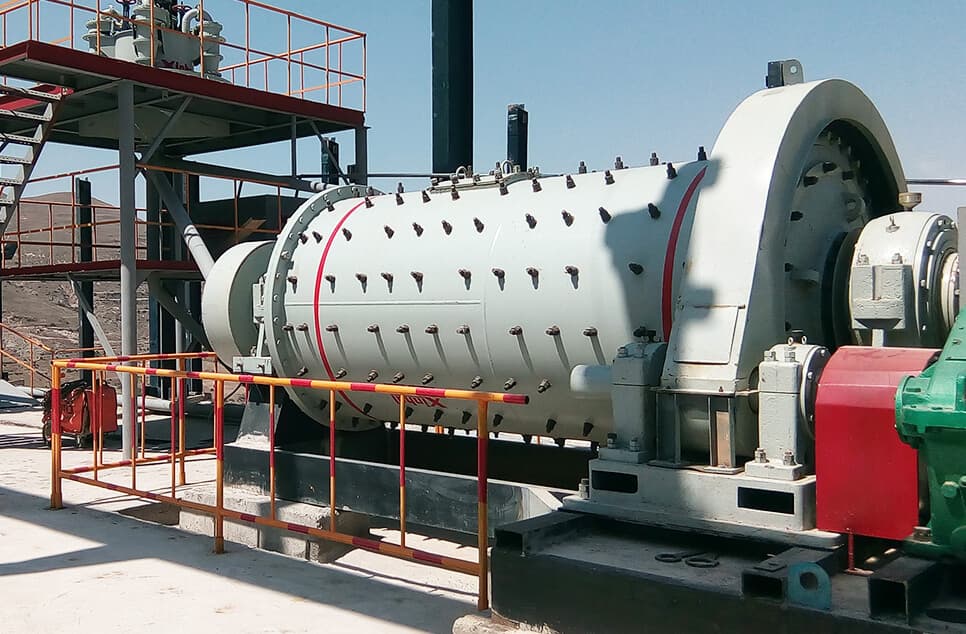

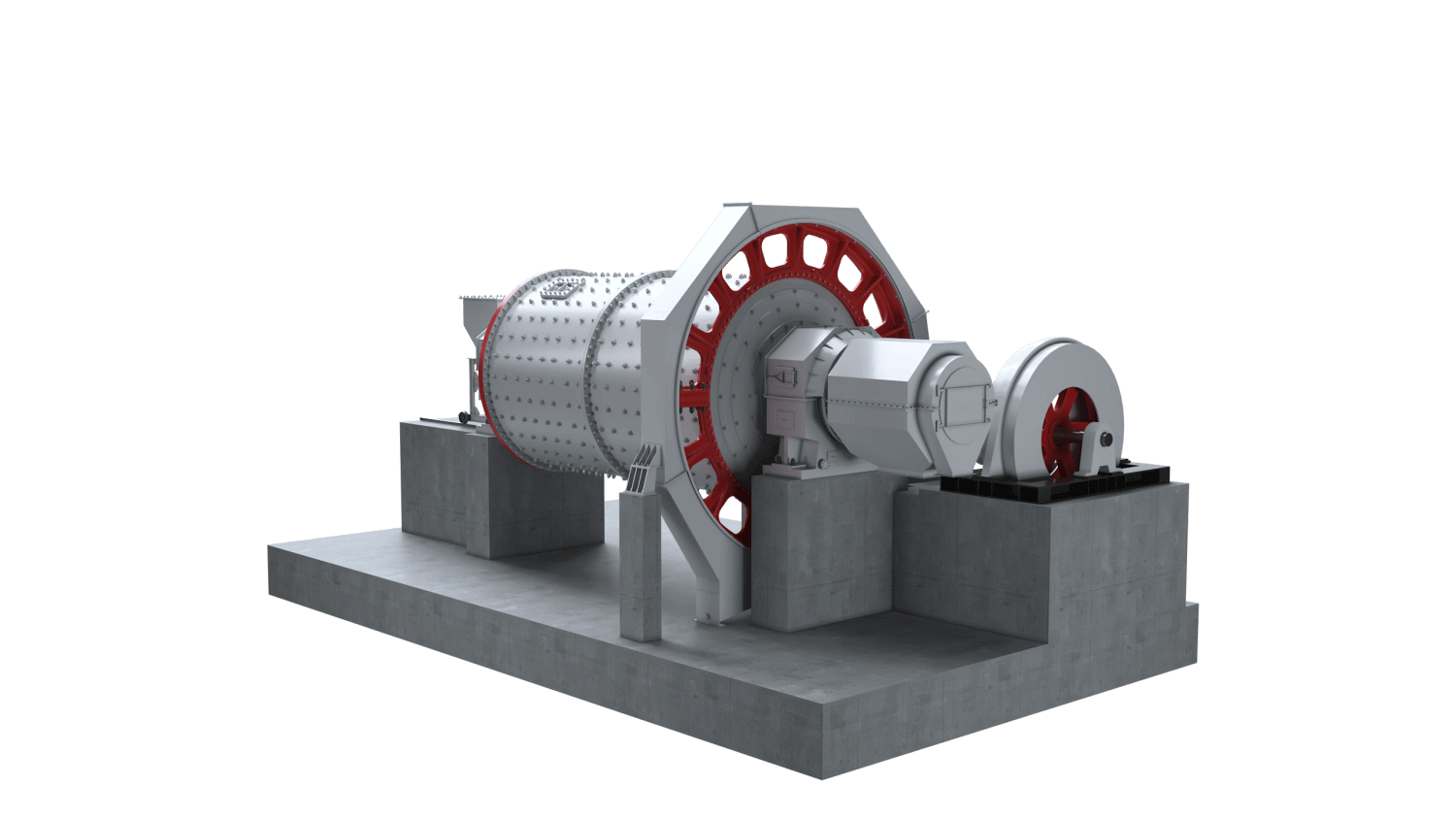

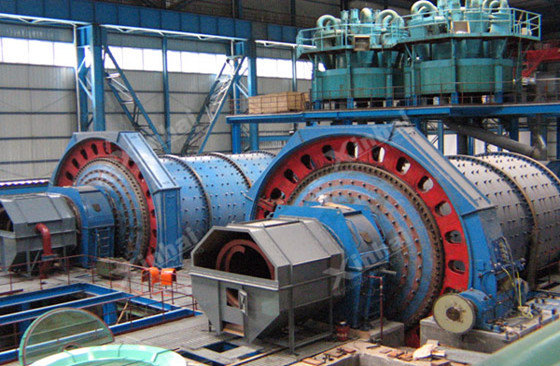

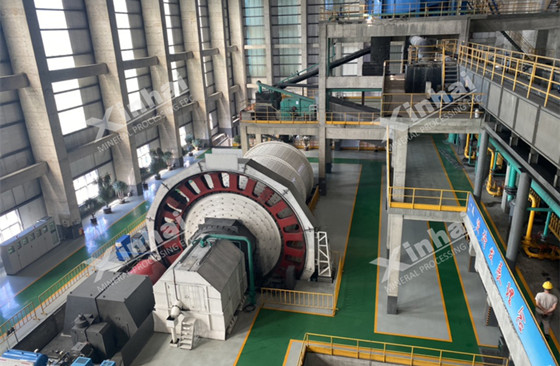

Energy-saving Ball Mill

Processing capacity up to 160t/h;

Drive system with low-speed driving device;

Hydraulic jack device and multiple feeding device choices;

Large and small rack spay mist lubrication system;

Antifriction bearing, the whole frame rake.

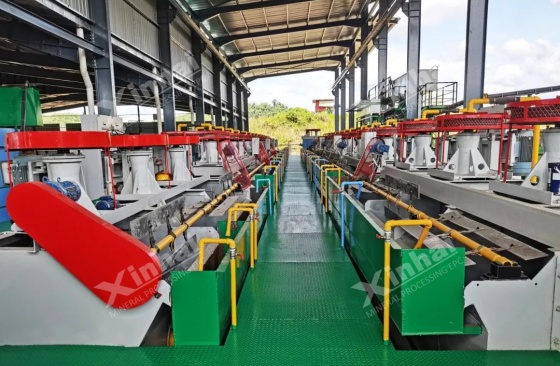

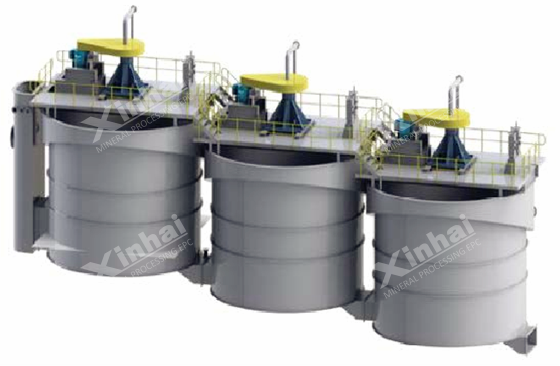

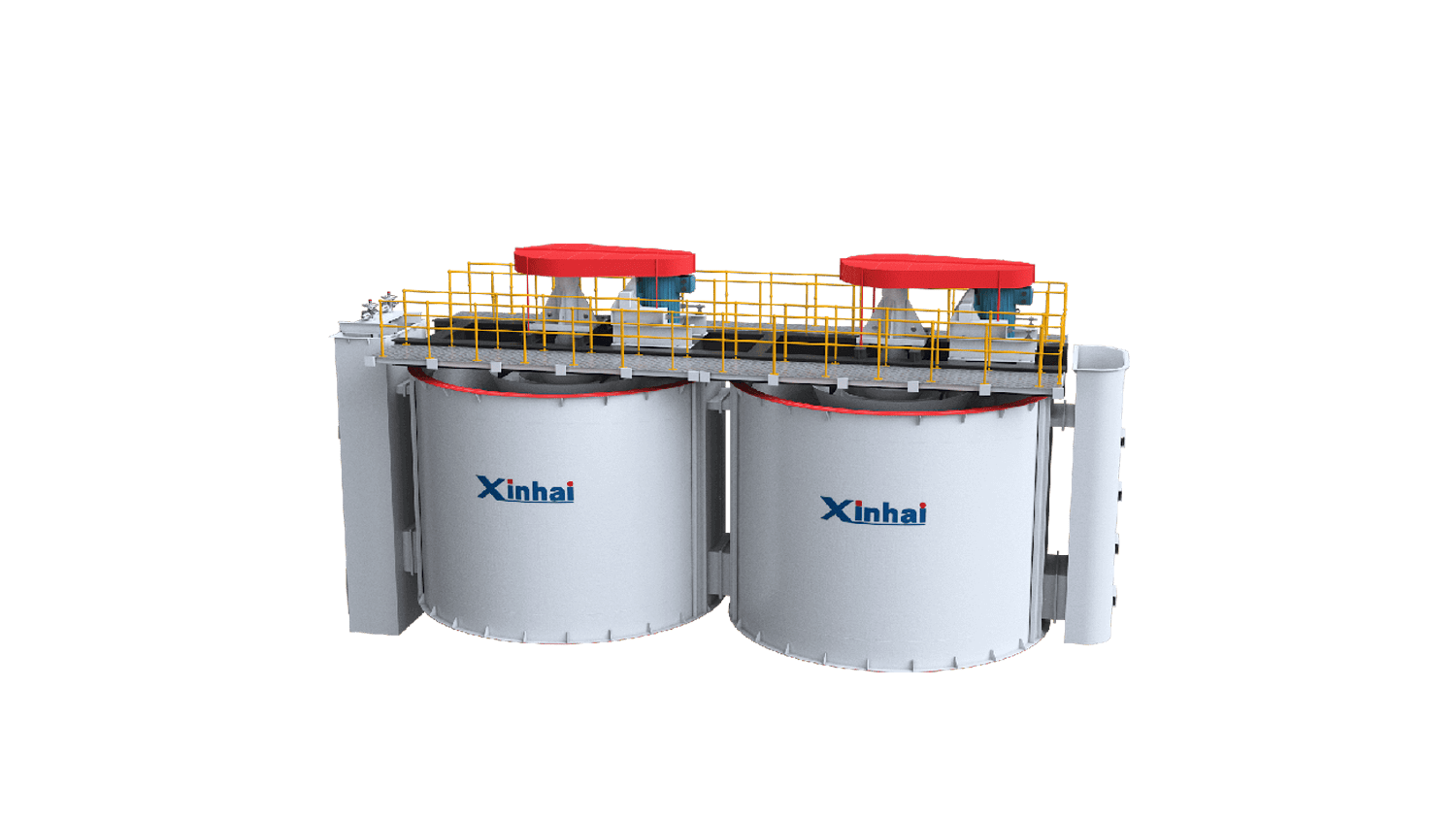

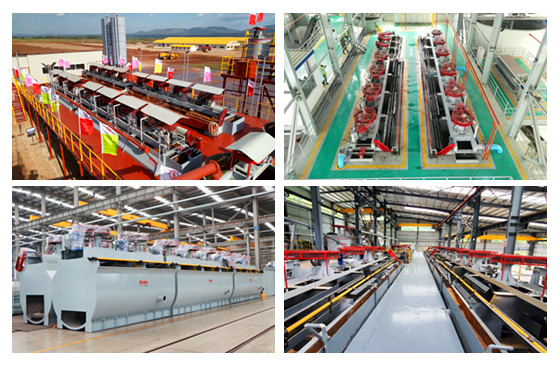

KYF & XCF Flotation Cell

The combination of absorption and constant-current tanks;

Flat device, reducing the basis investment;

Reduce the energy consumption, and reducing the equipment damage;

Special structure, improving the processing effect.

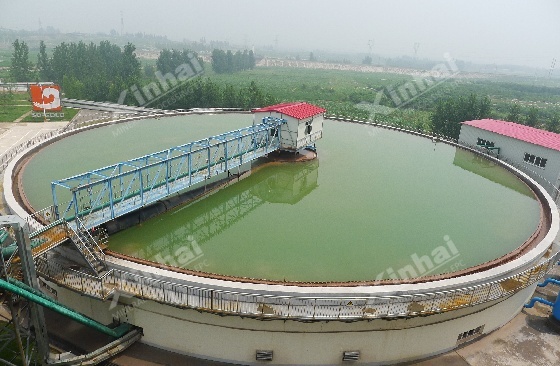

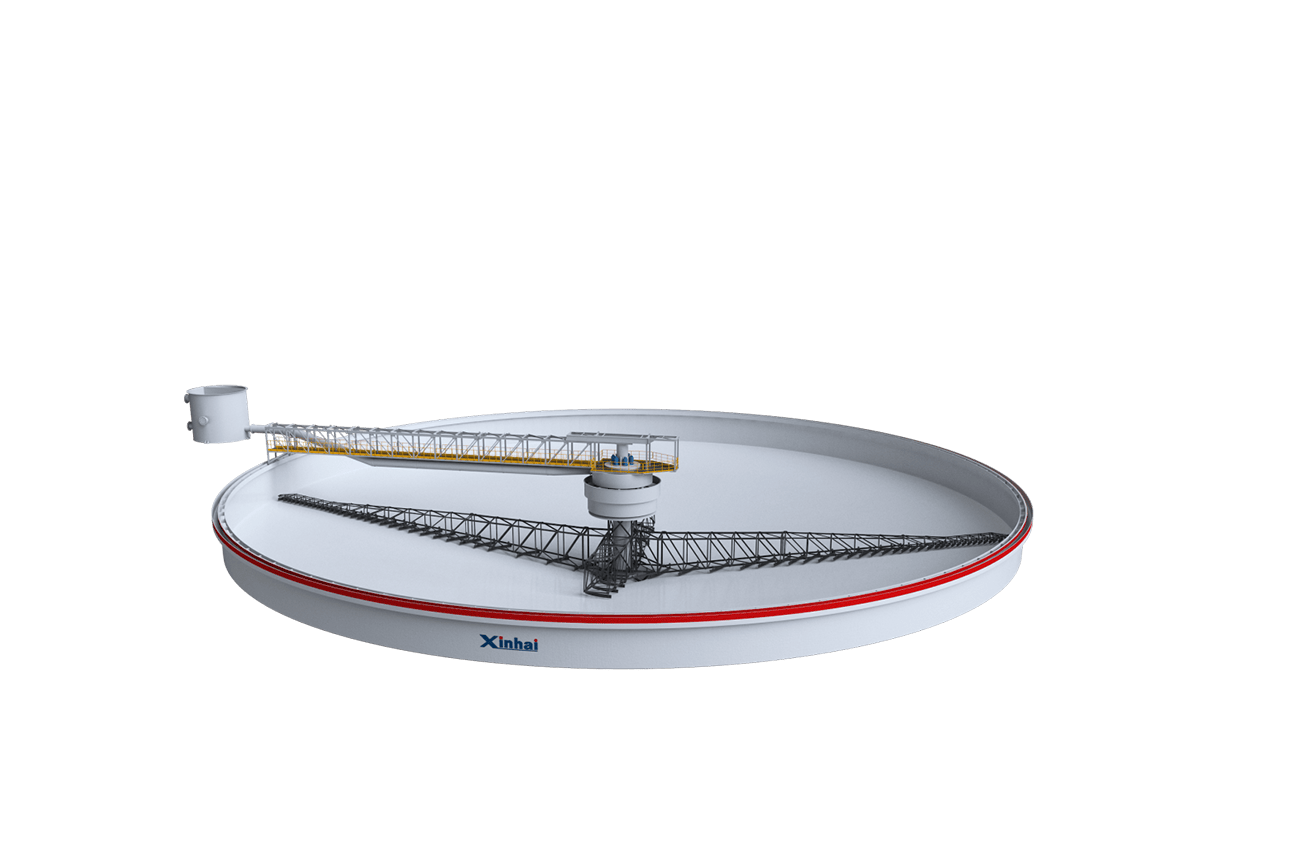

High-efficiency Thickener

Increase the efficient settlement area volume;

Add the feed pipe under the liquid level, deaerating tank, inner over weir, and zigzag overflow weir;

Move the feeding cylinder down;

The shape of rake from line type to curve type.

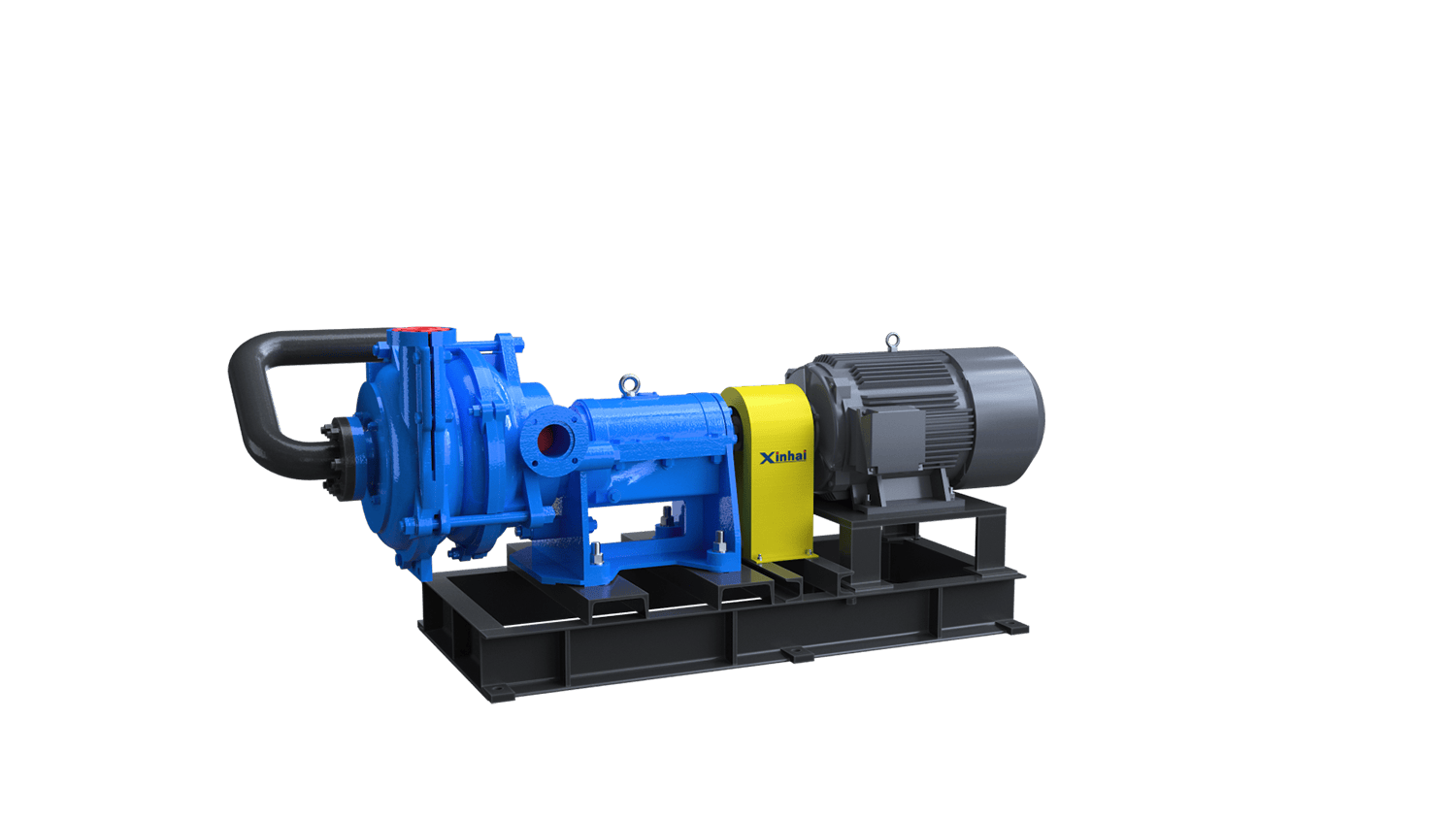

Double Stages Slurry Pump

Double-stage pump design, the head reaches 75 meters;

Wear-resistant rubber lining part, long service life and less faults;

A small proportion of rubber lining part, energy-saving and cost-reducing;

100% shaft seal, no leakage.

Mineral Processing Solution

Xinhai has a Class B design qualification in the metallurgical industry, has rich ore mining, mineral processing, and smelting technology and experience, and has completed the design and research of more than 2,000 mines. We can not only provide customers with reasonable technological process, but also provide customized equipment configuration.

PROCESS

New Energy Mineral

Xinhai Mining can manage all aspects of the entire project construction period according to the needs of customers, organize and coordinate resources in various aspects, so that the project can be constructed and completed on schedule, and reach the standard and production capacity. According to the needs of customers, we can also provide operation contracting or management services during the mine production period to escort the development of the concentrator.

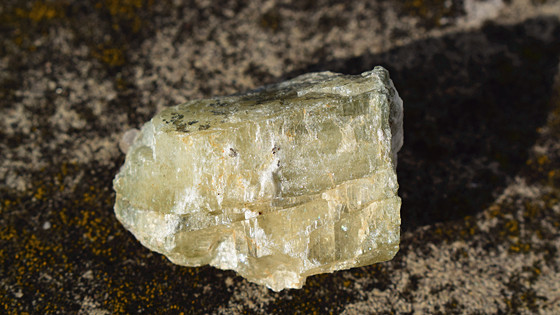

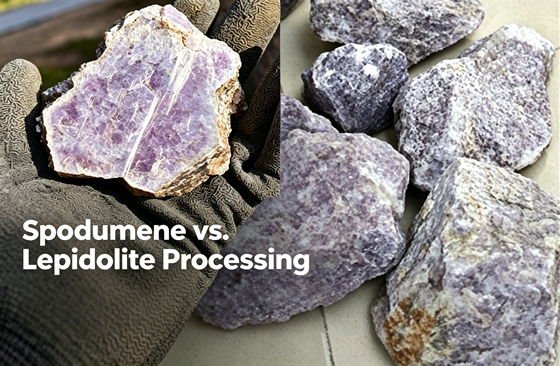

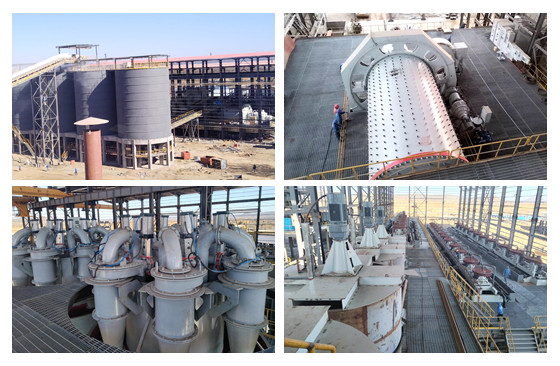

Lithium Ore Production Line Nickel Ore Mining Production Line
PROCESS

Precious Metal

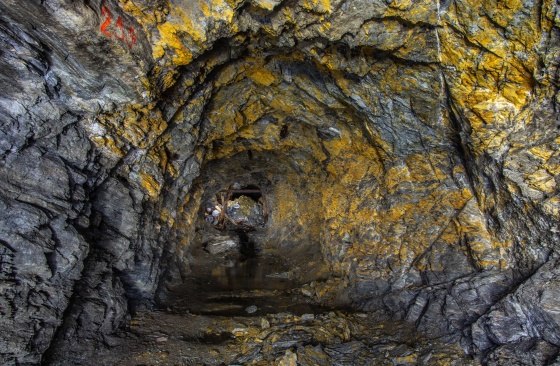

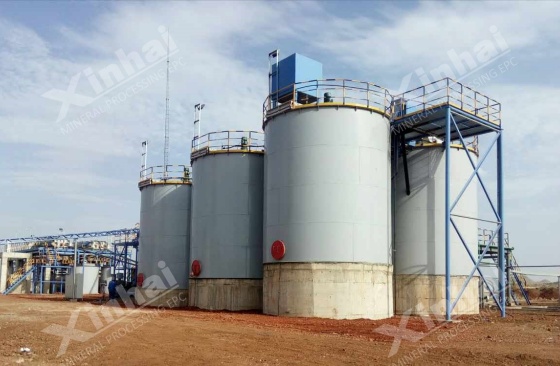

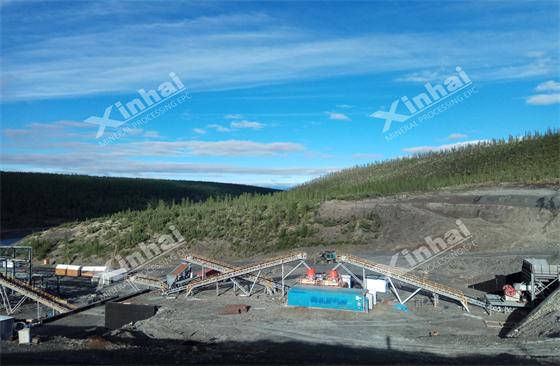

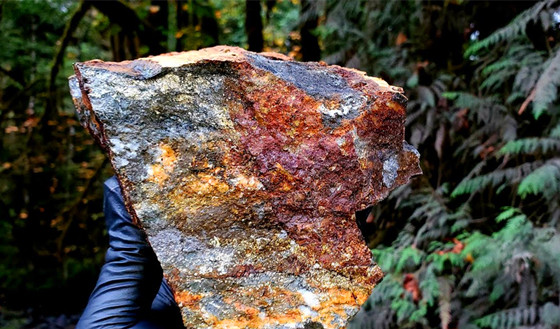

The precious metal minerals are mainly gold and silver mines. Xinhai Mining has more than 20 years of experience in beneficiation for gold and silver mines, especially gold ore beneficiation technology including gold and placer gold selection craft, etc.

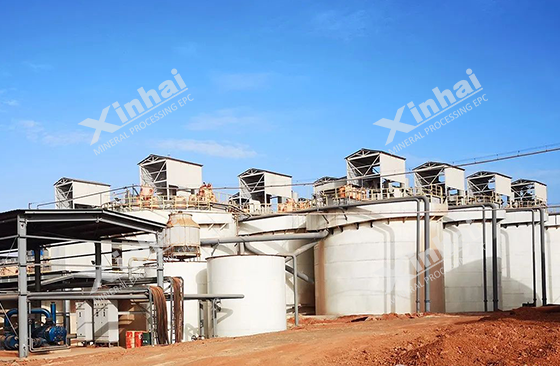

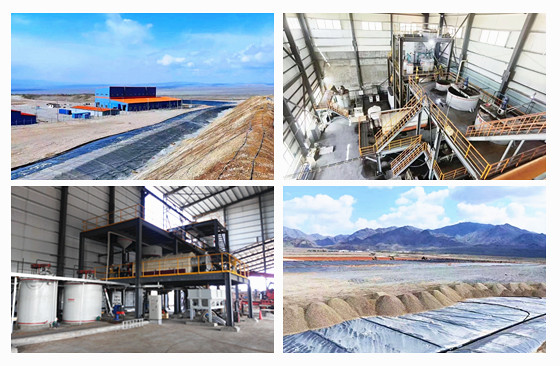

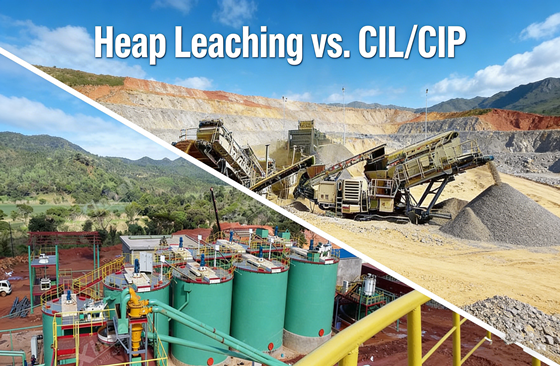

Gold Extraction Method Silver Extraction Method
PROCESS

Non-ferrous Metal

With Class B design qualification, it can provide accurate tests for more than 70 kinds of minerals and design a reasonable beneficiation process. In addition, it can also provide customized complete set of mineral processing equipment and auxiliary parts.

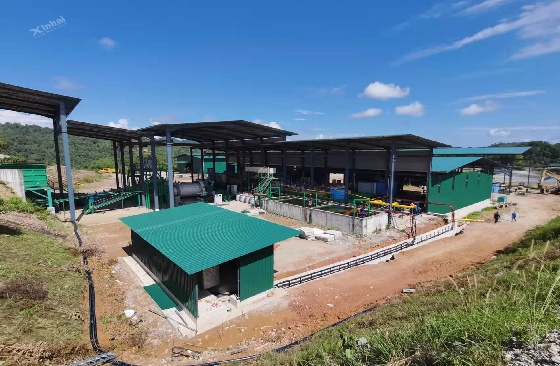

Cu-Pb-Zn Extraction Method Scheelite Extraction Method
PROCESS

Ferrous Metal

Xinhai can provide the all-around and one-stop mineral processing plant service for clients, solving all the mine construction, operation, and management problems, devoted to providing modern, high-efficiency ferrous metal processing machines.

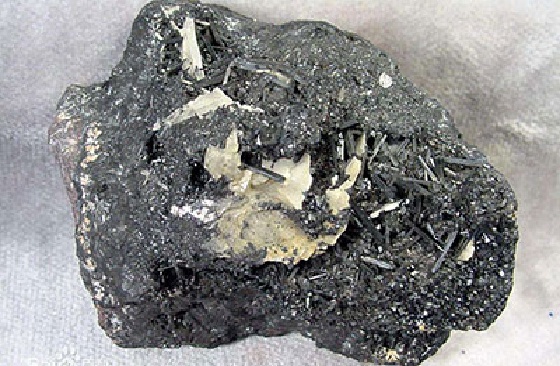

Magnetite Extraction Method Manganese Extraction Method
PROCESS

Non-metal

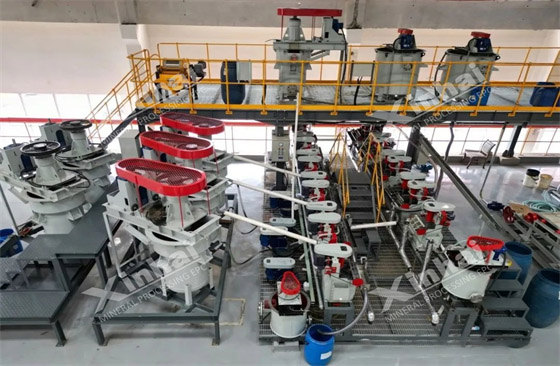

Through mineral processing experiment, the mineral processing flow is customized. Multiple tests are carried out in every link, and make sure the final processing flow to guarantee the successful mineral processing plant construction.

Quartz Sand Extraction Method Graphite Extraction Method
PROCESS

Tailings Treatment

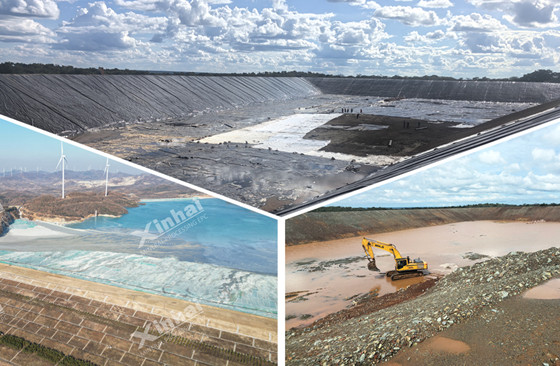

According to tailing processing technology, Xinhai has tailings reprocessing technology and tailings dry stacking. Tailings dry stacking is the self-launched tailings dewatering technology, which is the effective technology in green mine construction.

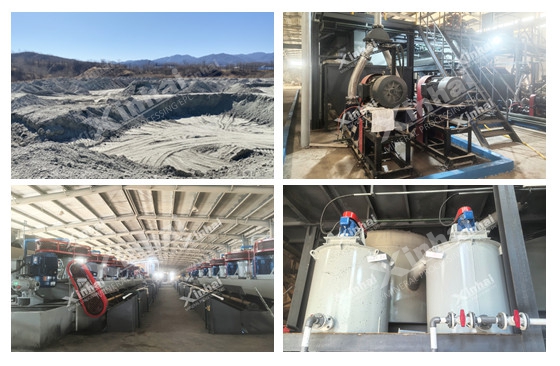

Tailings Re-Processing Method

New Energy
Precious Metal
Non-ferrous Metal
Ferrous Metal
Non-metal
Tailings Treatment

Xinhai Globalization

With more than 2,000 mine design and research, equipment supply projects, more than 500 mining industry chain services (EPC+M+O) projects in more than 90 countries and regions around the world, we are always committed to providing you with one-stop, customized chemical mine solution!
