High Efficiency Agitation Tank
PRODUCT

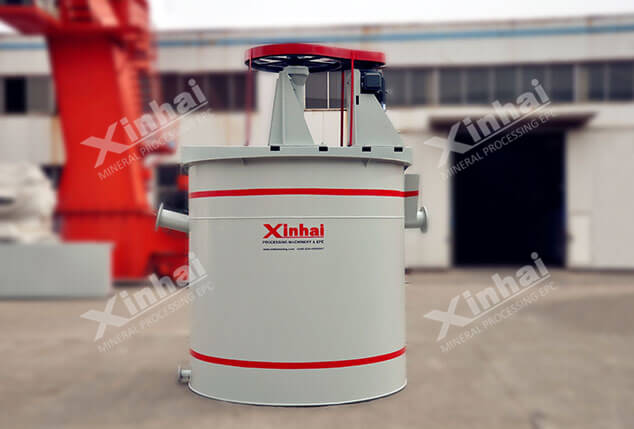

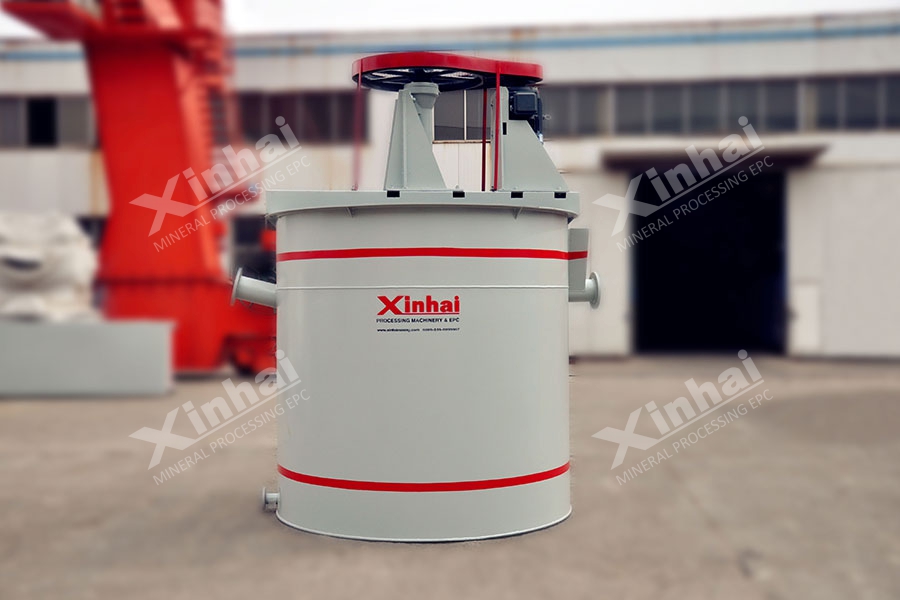

High-Efficiency Agitation Tank

[Introduction]: An agitation equipment which forces the slurry to circulate up and down.

[Capacity]: 0.58~45m³

[Improvement]: Umbrella-shaped impeller presses the slurry, so that the slurry circulates up and down along draft tube, which makes reagents and slurry mix well

Advantages

01

Advanced structure of impeller, strong stirring ability;

02

The impeller of Xinhai high-efficiency agitation tank adopts umbrella-shaped with large diameter and linear velocity to enhance the agitation and circulation capability;

03

The enhancement of circulation capability improves flotation index;

04

The baffle can compress negative pressure to a limited space and improve suction capability. As a result, the circulation capacity is enhanced.

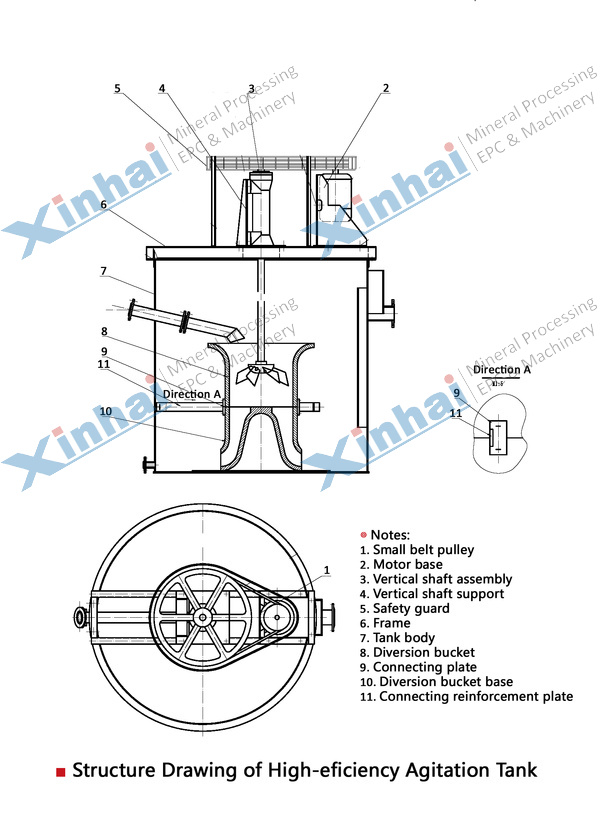

Product Structure

High-efficiency agitation tank is mainly applied in slurry stirring before flotation, chemical and construction industry, cyanide chemical plant, sewage treatment plant, and coal plant etc.. The rotation of the impeller drives the flowing of the slurry, which makes the mineral grains and the reagents well.

Technical Parameters

ModelEffective    Volume (m3)Rotating Speed of Impeller (r/min)Diameter of Impeller (mm)Motor    ModelMotor Power
 (kW)
Weight
 (kg)
GBJ-1000X10000.58530240Y112M-62.2548
GBJ-1250X12501.15350240Y100L2-43820
GBJ-1500X15002.2320420Y132M2-65.51350
GBJ-2000X20005.46240560Y160M-67.53173
GBJ-2500X250011.2232560Y180L-6153939
GBJ-3000X300019.1220700Y225S-818.56676
GBJ-3500X350031248700Y225M-8227581
GBJ-4000X4000451531000Y250M-8379560
