Efficient Thickener
PRODUCT

Efficient Thickener

[Introduction]: Produced by introducing American technique

[Capacity]: 5-1400t/d

[Improvement]: New mechanical structure, strengthening the flocculation of solid particle and supplying flocculent adding system

Advantages

01

Adding the flocculants to increased sedimentation particle size, thus speeding up the sedimentation velocity;

02

Adding the degassing tank to prevent solid particles from attaching to the bubbles;

03

Setting materials receiving plate and cylinder moving down, the slurry fed failing evenly and steadily, effectively prevent the occurrence of the splashing;

04

Unit processing capacity is improved by 4-9 times,and saving 30% of energy.

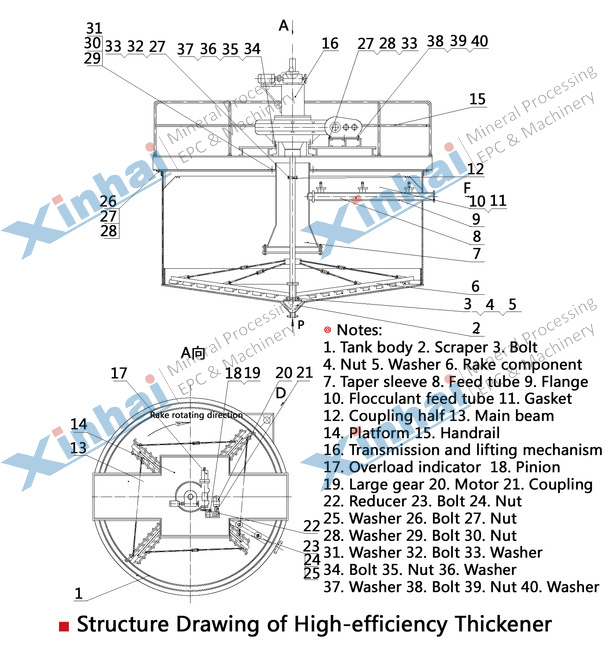

Product Structure

This thickener consists of the round thickener and harrow scrapping machine, the solid particles are suspended in thickener settling by gravity, the pulp in the upper turns into clean water so that the separation can be realized. The slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.

Technical Parameters

ModelInner Diameter of Tank (mm)Tank
 Height
(mm)
Subsidence    Area (m2)Rabble
 Rotating
 Speed
(r/min)
Lifting Height of the Rabble (mm)Driving
 Motor
Model
Driving
 Motor
 Power
(kW)
Lifting
 Motor
Model
Lifting
 Motor
 Power
(kW)
Steel Tank Weight (kg)Weight
(kg)
GX-3.63600170010.21.1200Y100L-61.5Y100L-61.528296650
GX-5.1851822134210.4300Y132S-63PZ0.8AB0.8534210460
GX-66000250028.30.8300Y132M1-64Y132S-82.2650610573
GX-7.57500280044.10.427300Y132M2-65.5Y132S-82.21025817320
GX-99000280063.60.427300Y132M2-65.5Y132S-82.21598023680
GX-121200036001100.35300Y132M-47.5Y100L1-42.22558942756
GX-151500040001770.15300YCT200-4B7.5Y112M-62.23605059000
GX-181800044002540.13400YCT200-4B7.5YTC752A-445.55248573296
GX-202000044003140.13400YCT200-4B7.5YTC752A-445.55936576020
