Home > Product > Automatic Control > Pipeline Sampler

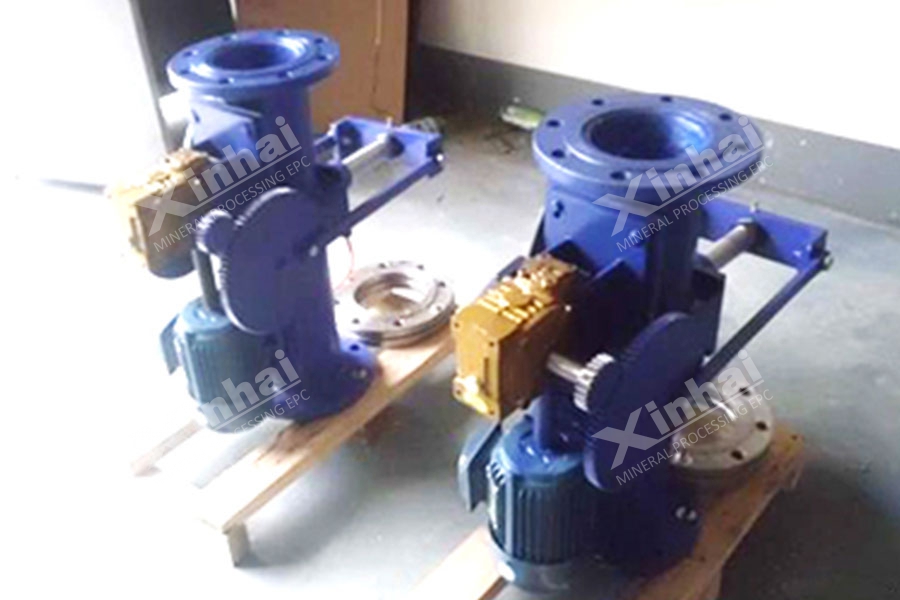

Pipeline Sampler

PRODUCT

Pipeline Sampler

[Introduction]: An automatic sampler for pulp sampling from closed pipelines

[Capacity]: One minute per time

[Improvement]: This product could set sampling time. The minimum sampling time is 1min. The sampling time could be adjusted by requirement of tester. The sample is typical and could show the change of ore pulp (powder) in special time.

Advantages Product Structure Technical Parameters Successful case

Advantages

01

Safe and stable;

02

Simple operation;

03

Convenient maintenance;

04

The size of the sample volume can be adjusted;

05

Long service life.

Product Structure

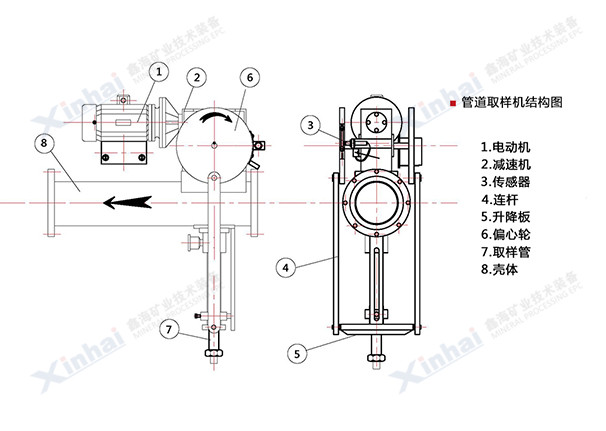

Pipeline Sampler principle

Pipeline Sampler principle

Product Structure

The automatic pipeline sampling machine extracts the mineral sample by the drilling screw sampler, and sends it to the crusher through a closed feed. After crushing, it enters the reduced sample collector, and the reduced sample enters the sample collector. The mine processing system flows back to the mine.

Technical Parameters

If you want to know the product price, feed particle size, production capacity, size, etc., please contact us online service.

Successful case

Pakistan 1,500t/d Copper Mineral Processing Plant

Pakistan 1,500t/d Copper Mineral Processing Plant

Inner Mongolia 700t/d Fluorite Mineral Processing Plant

Inner Mongolia 700t/d Fluorite Mineral Processing Plant

China Tibet 1500tpd Lead-zinc Tailings Dry Drainage Plant

Tibet 1500tpd Lead-zinc Tailings Dry Drainage Plant
