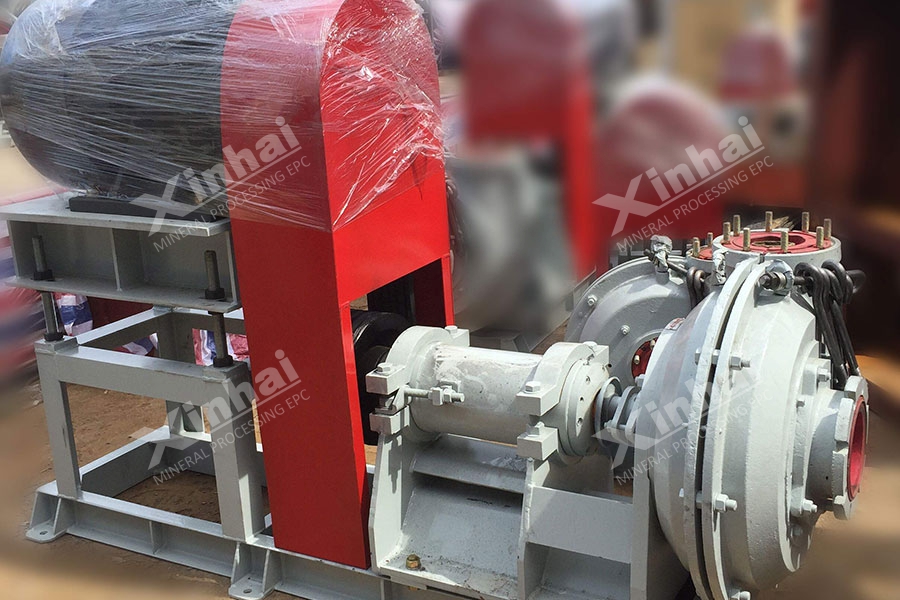

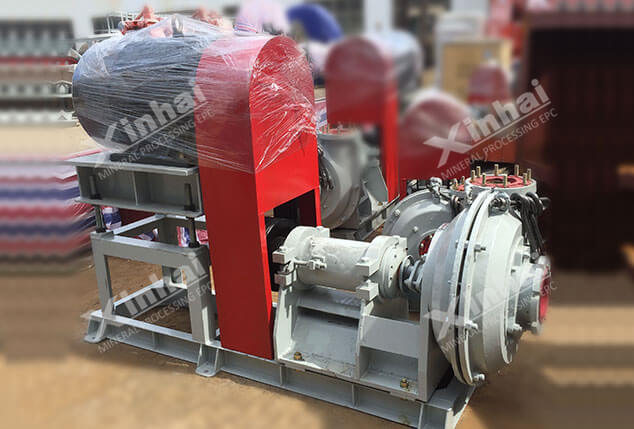

Wear-Resistant Slurry Pump

Wear-Resistant Slurry Pump

[Introduction]: A slurry pump for conveying pulp with concentration below 65%.

[Capacity]: Flow≤1500m³/h

[Improvement]: Slurry pump impeller and the casing are lined with Xinhai high wear-resistant rubber ensuring that the pump body is not subject to wear. In the same project, the service life of Xinhai slurry pump is 2 times longer than other metal pump life reaching the international top quality. The rubber liners wear index has reached 128%.

ADVANTAGES

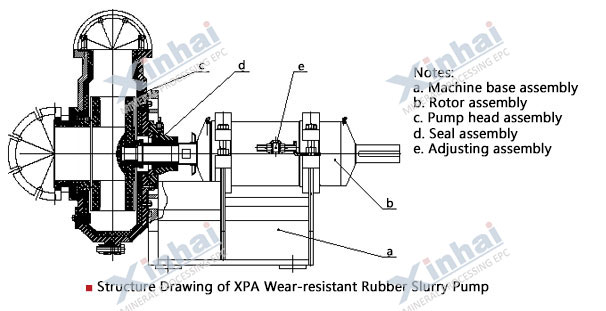

PRODUCT STRUCTURE

The working principle of the  wear-resistant slurry pump is to use the motor to drive the impeller to rotate to force the fluid to rotate, so that the impeller does work on the fluid along its moving direction, forcing the pressure potential and kinetic energy of the fluid to increase. Under the action of the inertial force of the fluid, The center flows to the edge of the impeller, and flows out of the impeller at a high speed, enters the press-out chamber, and is discharged through the outlet pipe.

The main components of wear-resistant slurry pump includes impeller, motor, sheath etc.

TECHNICAL PARAMETERS

Model    & Spec.Flow
 (m3/h)
Max. Head
 (m)
Rotating Speed (r/min)Max. Rated Power (kW)Max. Efficiency
 (%)
Impeller
 Diameter
 (mm)
Weight
 (kg)
Overall Dimension (mm)
XPA    50/5020 ~6038800~24002251200156725X482X491
XPA    80/8030~10045600~21004553256326915X590X595
XPA    100/10060~16050600~16007557340440999 X 648 X 660
XPA    150/125100~26047400~1400110633726081280X736X758
XPA    200/150160~45047450~1200132694337361313X788X822
XPA    250/200300~90046400~12002507845412501600X812X956
XPA 300/250

400~1500

45300~9006007361019561698X966X1083
