Home > Products > Pumps > Submerged Slurry Pump

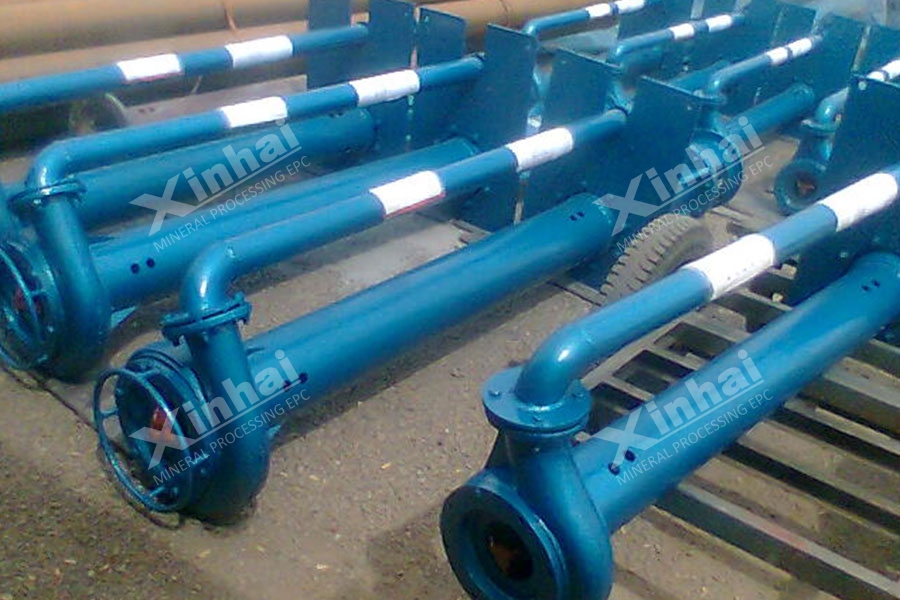

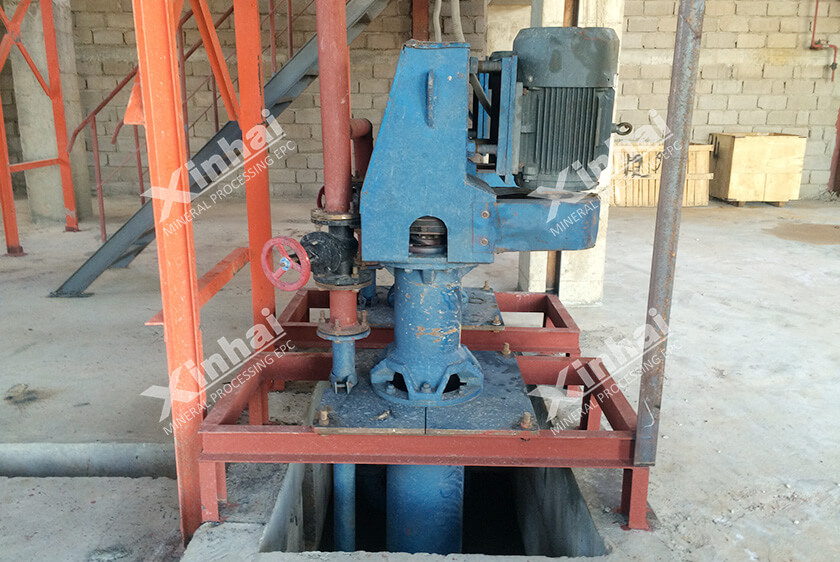

Submerged Slurry Pump

[Introduction]: A submerged slurry pump with high wear resistance.

[Capacity]: Flow≤105m³/h

[Improvement]: Impeller is moulded by wear-resistant rubber developed by Xinhai; wear index reaches 128%.

CHAT

MESSAGE

ADVANTAGES
PRODUCT STRUCTURE
TECHNICAL PARAMETERS
SUCCESSFUL CASE
RELATED PRODUCTS
RELATED NEWS

ADVANTAGES

The design is based on the liquid-solid two-phase flow theory, and the head can reach 118m;
Reasonable design of internal structure avoids the interference of the pulp impact and blockage; It can be applied in a variety of working conditions;
Alloy wear-resistant material is used for the impeller with large diameter and low speed;
Changeable elastic body or clad lining;
It is easy to replace wet parts.

PRODUCT STRUCTURE

The main components of submerged slurry pump includes the impeller, shaft, protective board, pump shell, packing box etc..

TECHNICAL PARAMETERS

Specification	Flow(m³/h)	Head(m)	Rotation Speed(r/min)	Motor Maximum Power(Kw)	Maximum Efficiency(%)	Impeller Diameter(mm)	Outlet Diameter(mm)
40PV-SPR/XH	17.239-39.6	4-26.0	1000-2200	15	40	188	40
60QV-SPR/XH	25.5-105	5.5-30.5	700-1500	30	51	280	65
100RV-SPR/XH	64.8-285	7.5-36	600-1200	75	62	370	100
