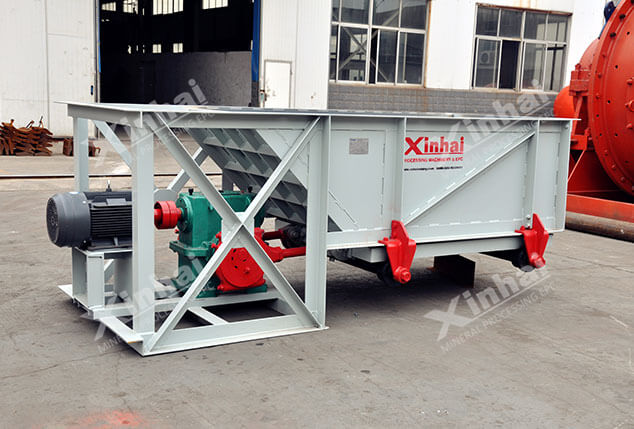

Chute Feeder

【Introduction】:
【 Capacity 】:
【Improvement】:

CONSULT

CONTACT

DOWNLOAD

Advantages
Product Structure
Technical Parameters
Successful case

【Advantages】

Simple structure, even feeding, good continues performance.

Change and control flow and feeding volume at any time.

Stable transmission, high efficiency.

Compact structure, reasonable design.

Excellent quality, wide application.

【Product Structure】

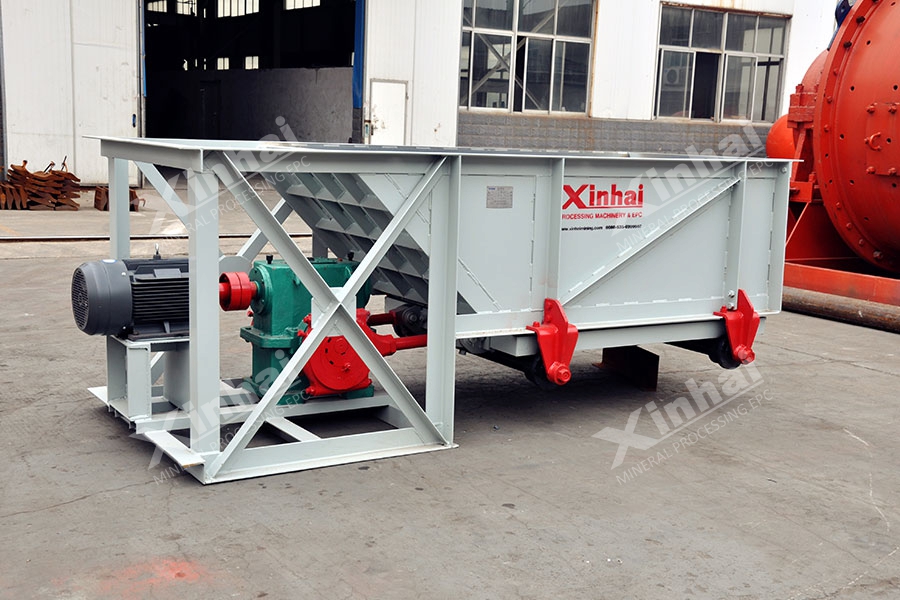

Chute Feeder

Click Image to Zoom

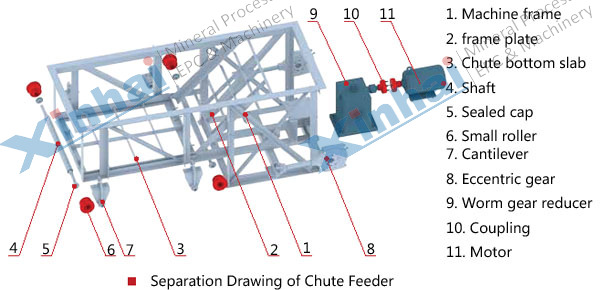

The machine is usually installed underneath the discharging opening of ore bin. Minerals fall on the bushing. The bushing is located at the chute bottom, configured on idler wheel and via eccentric device connected with reducer which is linked to electric motor by coupler. When it works, electric motor drives reducer via coupler; eccentric disk and drain cap which is situated between chute frame bottom and roller begin to do reciprocal and linear motion so as to uniformly feed minerals.

【Technical Parameters】

Model	Outlet Dimension (W X H) (mm)	Max. Feed Size (mm)	Feed Capacity (t/h)	Motor Model	Motor Power (kW)	Weight (kg)
CG300X300	300X300	50	10~20	Y90L- 4	1. 5	265
CG400X400	400 X400	100	10~30	YCT160-4A	2. 2	640
CG600X500	600 X500	200	10~50	Y112M- 4	4	1045
CG700X500	700 X500	200	10~60	Y112M- 4	4	1100
CG1240X980	1240X980	350	36~90	Y160M- 6	7. 5	1710

【Successful case】

A lead and zinc processing plant in Shanxi contacted with Xinhai , dealing with its crushing and screening process. A feeding device that feed ore to jaw crusher is needed before crushing, the pending ore particle size is about 350 mm, so the client chose Xinhai chute feeder. The device is lifting in discharge outlet of the ore bin, and can also set up on the floor according to the equipment requirements. In practice, the flush times of groove bottom reaches 60 times/min, the stroke reaches 200 mm, the feeding is uniform, and adjustable-speed motor provides conveniences to adjust the quantity of ore reserve.
