Electromagnetic Vibrating Feeder
PRODUCT

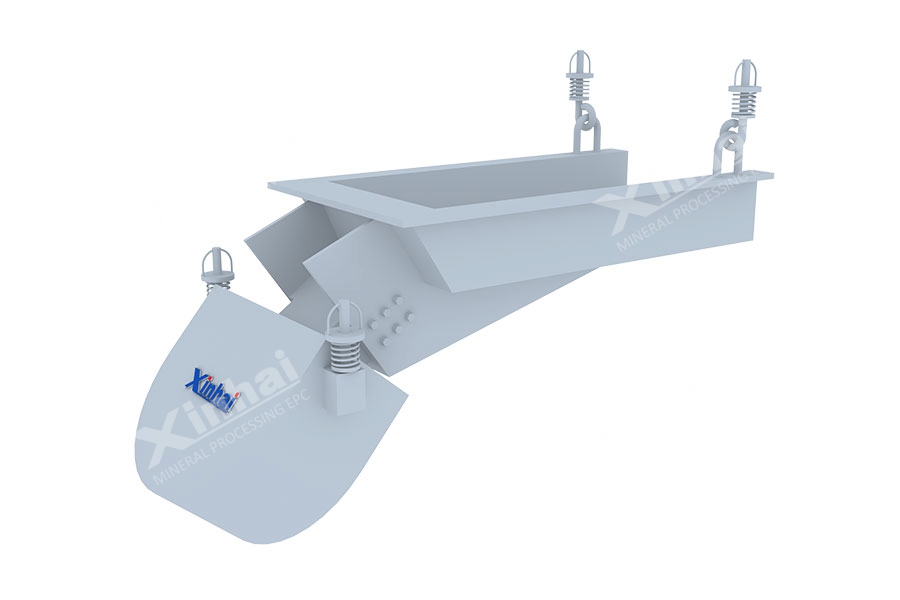

Electromagnetic Vibrating Feeder

[Introduction]: A feeder with simple structure and suitable for non-sticky materials

[Capacity]: 7~1700t/h

[Improvement]: 1, Transporting materials relying on electromagnetic vibrating; 2, Stepless adjustment feeding.

Advantages

01

Small volume, light weight, simple structure, convenient installation, convenient repair, low operation cost;

02

Adoption the principle of the mechanical vibration, and less energy consumption;

03

Change the volume of flow at any time;

04

Centralized control and automatic control of production process;

05

Small wear of feeding tank;

06

Eccentric block is the source of vibration, low noise, less power consumption, good regulation performance, no blanking phenomenon.

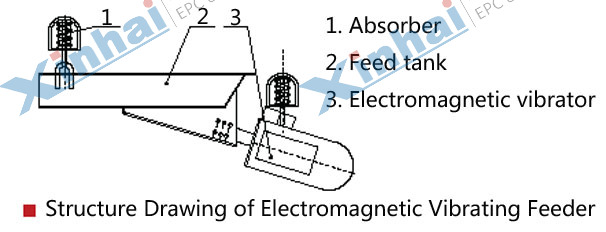

Product Structure

The electromagnetic vibrating feeder utilizes an electromagnetic vibrating device to drive minerals to reciprocate in the direction of dip. When the vertical component of accelerated speed of feeder exceeds accelerated speed, minerals are tossed upward and leap forward in a parabolic fashion. It takes 1/5 second to finish the rising and falling. The chute vibrates for one time and subsequently, the minerals are tossed for one time. The chute vibrates at a frequency of 3000/minute. Correspondingly, minerals are tossed upward and has a leap forward. So minerals can continuously and uniformly move forward and feeding is achieved.

Technical Parameters

ModelTank Dimension (LXWXH) (mm)Feed    Size (mm)Horizontal Feed Amount (t/h)Feed Amount (t/h)Power
 (kW)
Overall    Dimension (LXWXH) (mm)Weight
 (kg)
GZ1600X200X10050570.06910X376X48580
GZ2800X300X12010140.151175X608X600165.5
GZ3900X400X1507525350.21325X578X675223
GZ41100X500X20010050700.451616X762X814462
GZ51200X700X2501501001400.651815X840X980656
GZ61600X900X2502001502101.52410X10925X15001252
GZ71800X1100X25025025035032800X1330X17102017
GZ82200X1300X30030040056043302X1556X19953153
GZ92400X1500X3003506008405.53515X1776X22003750
GZ102500X1800X37550075010504X23630X2500X22356491
GZ112800X2000X375100014005.5X24060X2640X29197680
GZ123000X2200X40012001500155260X2860X25638840
GZ133200X2500X450130016006394X3040X28649920
GZ143500X2500X4505501500170018.57475X3802X300011000
