Two Core TSF Monitoring Subsystems
Unified Four-layer Architecture with a Shared Digital Twin, Data, and Early Warning Platform
The solution adopts a standardized four-layer architecture. Both the Slope Monitoring System and the TSF Online Monitoring System share a common digital architecture, enabling unified data collection, centralized analysis, and closed-loop safety management.
-
Monitoring Layer：
Covers all critical monitoring targets, including open-pit slopes, waste dumps, TSF embankments, and storage areas.
-
Data Acquisition Layer：
Collects real-time field data through intelligent sensors and monitoring devices.
-
Data Processing Layer：
Performs data transmission, fusion analysis, multi-level early warning, and historical data management.
-
Visualization Layer：
Provides 3D visualization, remote monitoring, risk assessment, and regulatory reporting.

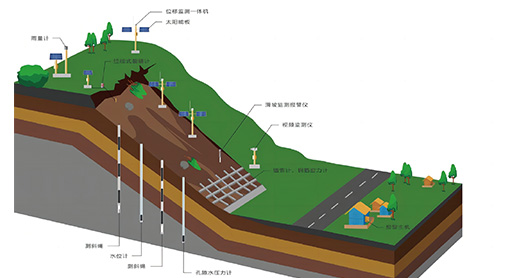

Xinhai Slope Monitoring System
Xinhai Slope Monitoring System is an integrated monitoring and early warning platform for open-pit mine slopes, waste dumps, TSF embankments, and natural slopes. It combines high-precision GNSS positioning, 3D laser scanning, Synthetic Aperture Radar (SAR), IoT sensing, big data analytics, and digital twin technology to establish a complete workflow for monitoring, analysis, early warning, and decision support.
System Architecture
- Monitoring Layer：
Open-pit slopes · Waste dumps · TSF embankments · Surrounding natural slopes
- Field Data Acquisition Layer：
GNSS positioning · 3D laser scanning · Synthetic Aperture Radar · Wireless communication · Surface displacement · Internal displacement · Stress monitoring · Crack monitoring · Groundwater level · Rainfall · Blast-induced vibration
- Data Management Layer：
Multi-source data fusion and analysis · Intelligent early warning engine · Three-level alert thresholds (Yellow / Orange / Red) · Alert notifications · Automatic report generation · Historical data archiving
- Visualization Layer：
3D visualization platform · Real-time monitoring dashboard · Remote access · Comprehensive risk assessment
Customer Value of Xinhai Intelligent TSF Monitoring System
Integrated Protection Across the Entire Tailings Storage Facility
-
Integrated risk management
combines slope monitoring and TSF online monitoring to simultaneously control slope instability, seepage, and overtopping risks.
-
24/7 unattended monitoring
continuously collects monitoring data, reduces manual inspections in high-risk areas, and improves operational safety.
-
Intelligent multi-level early warning
supports configurable Yellow, Orange, and Red alert thresholds with synchronized multi-channel notifications.
-
Digital twin visualization
provides a 1:1 three-dimensional model for real-time remote monitoring of equipment, monitoring data, and potential hazards.
-
Enterprise and regulatory system integration
stores monitoring data locally while synchronizing with enterprise management platforms and government supervision systems.
-
Digital safety management and reporting
automatically archives historical records and generates safety reports, making risks traceable and potential hazards predictable.
