Magnetic Drum

PRODUCT

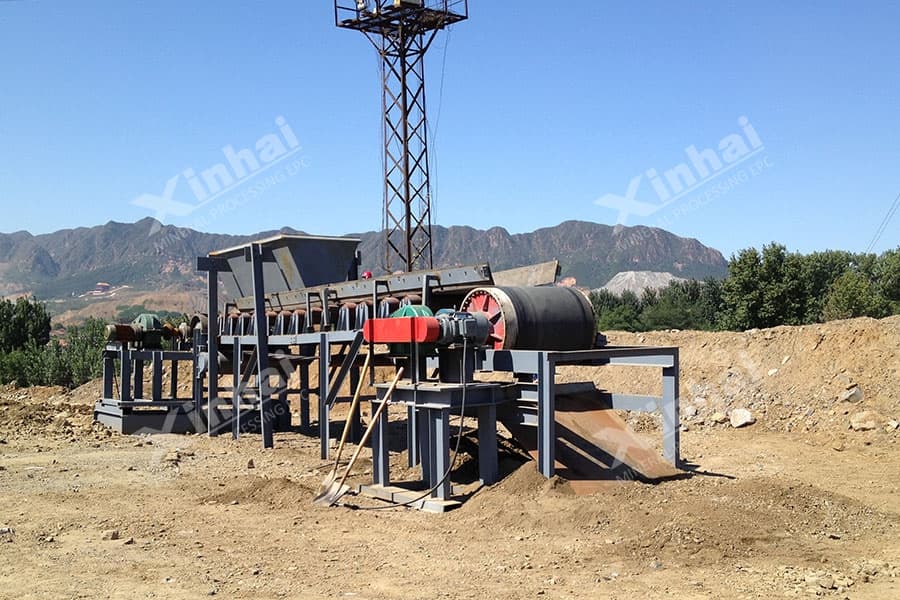

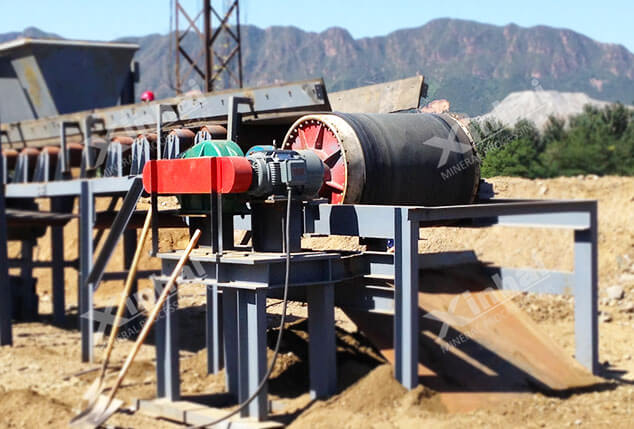

Magnetic Drum

[Introduction]: A dry magnetic separator for strong magnetic minerals with coarse particles, and it is also called magnetic pulley.

[Capacity]: 100t/h-350t/h

[Improvement]: Cylinder could be lined with Xinhai wear- resistant rubber to prolong the service life

Advantages Product Structure Technical Parameters Successful case

Advantages

01

Large feeding particle size (450-0mm), no classification before feeding;

02

High strength and high reliability of the mechanical structure guarantee the normal work of the magnetic drum in a variety of harsh environment;

03

The demagnetization rate of the magnetic density within 8 years is no more than 5%;

04

Can not only be the driving roller but also the driven roller.

Product Structure

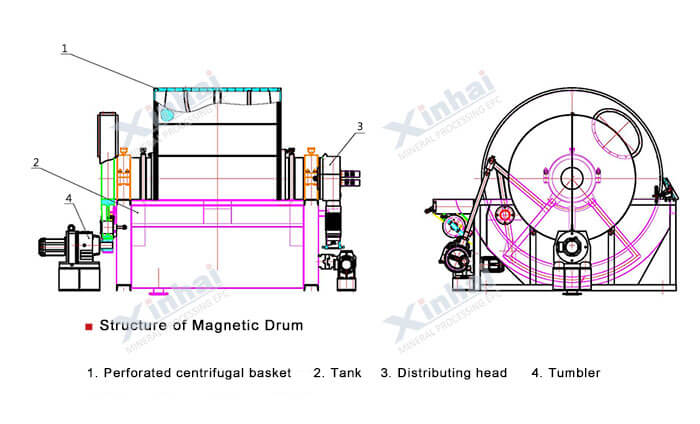

Magnetic Drum principle

Magnetic Drum principle

Product Structure

The materials are uniformly fed to the belt. When materials go through the permanent magnetic drum, the non-magnetic and low-magnetic particles will leave the belt surface because of the centrifugal force and gravitation. Meanwhile, strong-magnetic particles are absorbed to the belt by the magnetic force and then fall into the magnetic trough when the belt leaves the magnetic pulley.

Technical Parameters

Model & Spec.	Diameter of Cylinder (mm)	Length of Cylinder (mm)	Width of Belt (mm)	Surface Magnetic Density (mt)	Capacity (t/h)	Feed Size (mm)	Total Weight (t)
CTGG-0812	800	1200	1000	300~500	≤100	≤200	2.1
CTGG-0814	800	1400	1200	300~500	≤120	≤200	2.6
CTGG-0816	800	1600	1400	300~500	≤150	≤200	3.2
CTGG-0818	800	1800	1600	300~500	≤180	≤200	3.9
CTGG-1018	1000	1800	1600	300~500	≤270	≤250	4.4
CTGG-1218	1200	1800	1600	300~500	≤350	≤300	5.0

Successful case

Shanxi 1,200t/d Iron Mineral Processing Plant

Shanxi 1,200t/d Iron Mineral Processing Plant

Anhui 600t/d Iron Mineral Processing Plant

Qinghai 450tpd Gold Processing Plant Project
