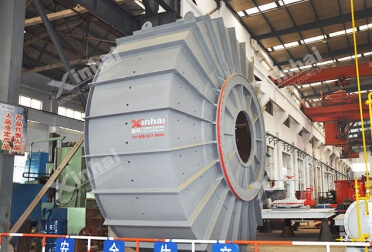

Energy Saving Ball Mill

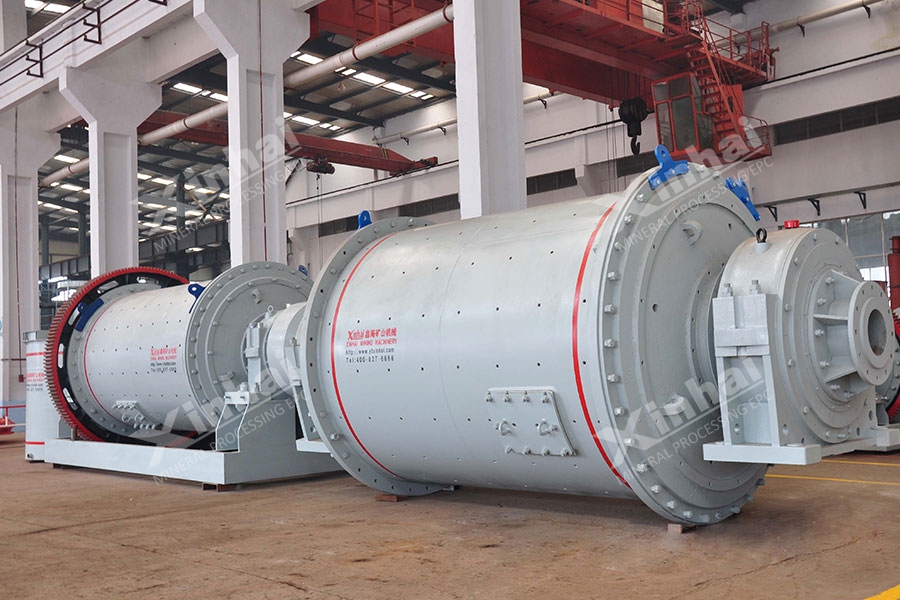

Overflow Type Ball Mill

Overflow Type Ball Mill

[Introduction]: A ball mill with simple structure and auto-flowing pulp discharge.

[Capacity]: 0.17~170t/h

[Improvement]: Overflow type ball mill is equipped with slow transmission system. When the ball mill starts, the low-speed slow transmission runs first, and the high-speed main motor drive system runs later, which not only saves energy, but also reduces the impact on the ball mill equipment and the grid system.

ADVANTAGES

PRODUCT STRUCTURE

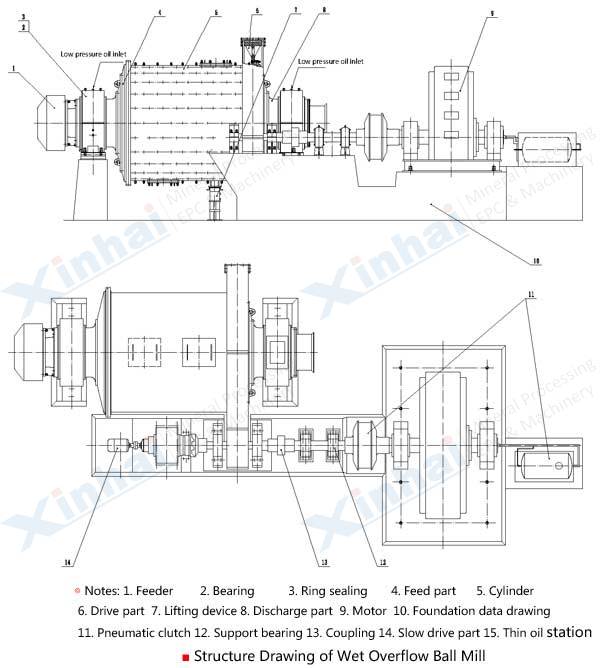

Principle of the overflow ball mill: the main component is a cylinder with diameter and length at a reasonable proportion. Driven by the transmission device, the cylinder rotates with the materials fed from the cylinder inlet and crushed by the falling impacts and autogenous grinding of the steel balls and ores in the cylinder. Due to the continuously feeding materials, the pressure pushes materials to the outlet and the grinded materials are discharged from the cylinder outlet. Qualified materials flow from the cylinder outlet. In wet grinding, the materials are taken out by the water flow. There are backpitch impellers in the hollow shaft, which can make the balls and coarse ores in the overflow return to the mill. With a simple structure, higher operation rate, and rolling bearing, the energy conservation is significant.

Generally used in the grinding of ores with finer fineness.

TECHNICAL PARAMETERS

ModelCylinder
 Diameter
 (mm)
Cylinder
 Length
 (mm)
Motor ModelMotor
 Power
 (kW)
Length
 (mm)
Width
 (mm)
Height
 (mm)
Effective
 Volume
 (m3)
Max. Ball Load (t)Weight
 (kg)
MQY09189001800Y225M-8225080230020150.91.666078
MQY121212001200Y225S-818.55788299425401.142.411473
MQY122412002400YR280S-8556112279425402.283.812308
MQY151515001500JR115-8605766294526002.26.415424
MQY153015003000JR125-89579792945260051018690
MQY212221002200JR128-81558070484037956.61447800
MQY213021003000JR137-821088704840379592047220
MQY213621003600JR137-821093004840379510.82252010
MQY214521004500JR148-6310110294738.6330013.523.858305
MQY243024003000JR1410-828097104778412012.12365880
MQY272127002100JR1410-828094005600470010.72463900
MQY273627003600TDMK400-32400130495800468017.83296570
MQY274027004000TDMK400-32400118505667449620.44078800
MQY323132003100TDMK630-36630127506760515021.445107660
MQY324532004500TDMK630-366301435672005152.532.865130283
MQY325432005400TM1000-36/26001000158006760520037.273121000
MQY364536004500TM1000-36/26001000150007200632641.876135000
MQY365036005000TM1250-40/32501250171577755632646.486145000
MQY366036006000TM1250-40/32501250190007755632655.7102154000
MQY369036009000TDMK1800-301800280004600560083163212000
MQY386738006700TDMK1600-301600190008200710070130186000
MQY406740006700TDMK1800-301800156009600730078138207000
MQY456145006100TDMK2200-3022001820010500760093151238000
