Flotation

•

  SF Flotation Cell

  【Introduction】: SF flotation cell is a mechanical agitation type flotation equipment with self-slurry suction and self-air suction

  【Volume】: 0.37～20m3

  【Improvement】: Both sides of the impeller with back rake blades ensures double circulating of slurry inside the flotation tank. Forward type tank, small dead end, fast foam movement

  SF flotation cell is a mechanical agitation type flotation equipment with self-slurry suction and self-air suction

•

  JJF Flotation, Wemco Flotation

  【Introduction】: A self-air suction mechanical stirring floatation cell without slurry suction (Referring to the design of USA wemco flotation machine)

  【Volume】: 2～20m3/min

  【Improvement】: Shallow groove, the stator lower than the impeller, large slurry circulation volume, low energy consumption; the stator is a cylinder with an elliptical hole which is conducive to the dispersion and mixing of pulp and air. Umbrella shaped dispersion cover with hole keeps the pulp surface stable.

  A self-air suction mechanical stirring floatation cell without slurry suction (Referring to the design of USA wemco flotation machine)

•

  BF Flotation Cell

  【Introduction】: A mechanical agitation type floatation cell unit with self-air suction and combination of slurry suction/no slurry suction

  【Volume】: 0.06～ 24m3/min

  【Improvement】: BF flotation cell has two types: type I and type II. Type I is improved as suction cell referring to model SF; type II is improved as direct flow cell referring to model JJF. Both are briefly called model BF.

  A mechanical agitation type floatation cell unit with self-air suction and combination of slurry suction/no slurry suction

•

  KYF Air Inflation Flotation Cell

  【Introduction】: An air-inflation mechanical agitation floatation cell without slurry suction (This type of cell is designed referring to Finland Autoquenpu OK floatation cell).

  【Volume】: 1～38m3

  【Improvement】: Taper impeller with its blades sloping backward at certain angle, simple structure, strong agitation ability, and low energy consumption The impeller is equipped with holey cylinder air allocator. The air scattering is uniform and the mixing effect of air and slurry is good U-shaped tank, little sedimentation of sand

  An air-inflation mechanical agitation floatation cell without slurry suction (This type of cell is designed referring to Finland Autoquenpu OK floatation cell).

•

  XCF air inflation flotation cell

  【Introduction】: An air inflation mechanical agitation floatation cell with slurry suction（as suction cell of KYF floatation cell).

  【Volume】: 1～38m3

  【Improvement】: The features of structure and performance of the cell is similar to KYF flotation cell. The difference is that there is a stator specially set above the impeller to form a special negative pressure area. It has the function of automatic suction slurry with a little higher energy consumption.

  An air inflation mechanical agitation floatation cell with slurry suction（as suction cell of KYF floatation cell).

•

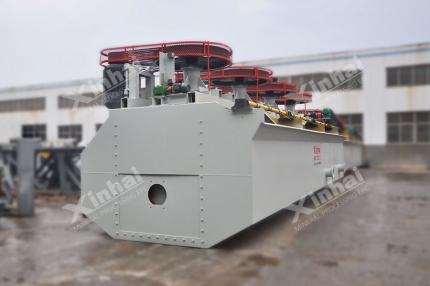

  XJB Bar Flotation Cell

  【Introduction】: A bar flotation cell with self-air suction and mechanical agitation

  【Volume】: 1～4m3

  【Improvement】: There is a convex bench and an arc-shaped steady flow plate. The convex bench works as the guide groove, which makes the mixture of air and slurry rush to the bottom of tank. And then with the steady flow plate the mixture spreads in the tank uniformly, moving in the shape of W.

  A bar flotation cell with self-air suction and mechanical agitation
