XCF air inflation flotation cell
PRODUCT

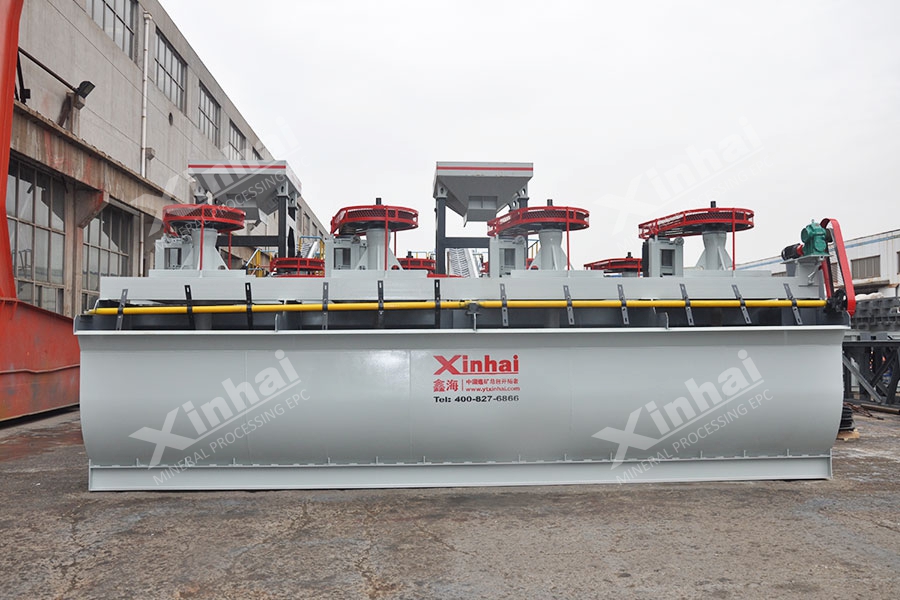

XCF Air Inflation Flotation Cell

[Introduction]: An air inflation mechanical agitation flotation cell with slurry suction（as suction cell of KYF flotation cell).

[Capacity]: 0.2～38m³/min

[Improvement]: The features of structure and performance of the cell is similar to KYF flotation cell. The difference is that there is a stator specially set above the impeller to form a special negative pressure area. It has the function of automatic suction slurry with a little higher energy consumption.

Advantages Product Structure Technical Parameters Successful case
CHAT
CHAT
MESSAGE

Advantages

01

Xinhai flotation equipment has simple structure and strong stirring capacity.

02

The air is evenly dispersed. Air and slurry combination is fine.

03

Less tailings deposits, low peripheral speed, and low energy consumption.

04

It can be combined with KYF flotation cell in combined flotation unit as a slurry suction tank.

05

The structure features of XCF flotation cell is similar with KYF flotation cell. The difference is that a stator is specially provided above the impeller to form a special negative pressure zone, self-priming pulp.

06

During flotation process, the reasonable use of flotation reagent can extract valuable minerals and gangue minerals more effectively.

Product Structure

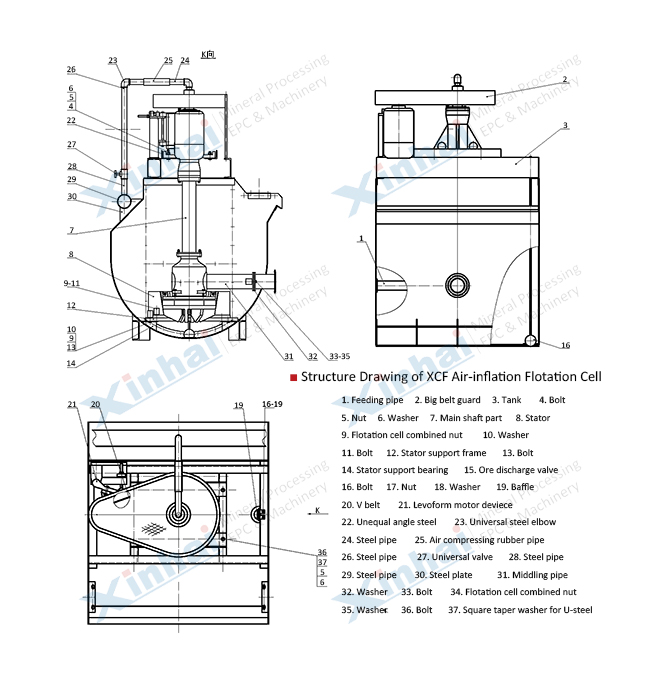

XCF air inflation flotation cell structure as shown in the diagram, is composed of tank, large isolation plate impeller with top and bottom blades, seat stator radial blade, split disc cover, split center tube, connecting tube with air-bleed hole, bearing body, hollow main shaft and the air adjustable valve.

Deep groove body with open and closed two structures; the bearing body with seat and hanging type XCF air inflation flotation cell is applied in roughing and scavenging of large and middle scale dressing plant aiming to non-ferrous metal, ferrous metal and nonmetal minerals.

Technical Parameters

ModelEffective
 Volume
 (m3)		Capacity
 (m3/min)		Impeller
 Diameter
 (mm)		Impeller
 Revolution
 (r/min)		Air Pressure of Blower (kPa)Max. Air Inflation Volume
 (m3/m2.min)		Motor Power for Agitation
 (kW)		Motor    Power for Scraper
 (kW)		Weight
 (kg)
XCF-110.2 ~1400358≥ 12.625.50.751154
XCF-220.4 ~2470305≥ 14.727.51.11659
XCF-330.6 ~3540266≥ 19.82111.52259
XCF-441.2 ~4620225≥ 19.82151.52669
XCF-883.0 ~8720175≥ 21.62221.53868
XCF-10104~10720192≥ 21.62301.54800
XCF-16164~16860160≥ 25.52371.56520
XCF-24244~24950153≥ 30.42371.58000
XCF-383810 ~381050136≥ 34.32551.511000
