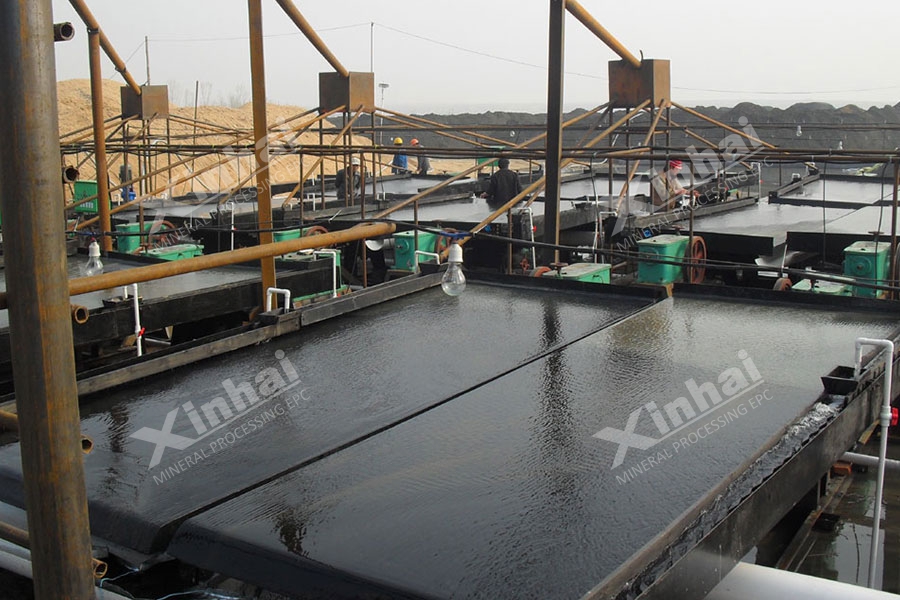

Concentrating Table (Shaking Table)

[Introduction]: Concentrating table (shaking table) is a gravity separation equipment of separation different weight mineral by asymmetric reciprocating motion

[Capacity]: 0.1~1.8 t/h

[Improvement]: The cam lever type head is adopted; the stroke is adjusted by changing the position of sliding head on rocker arm; jig impulse times is controlled by the smoothing motor pulley.

ADVANTAGES

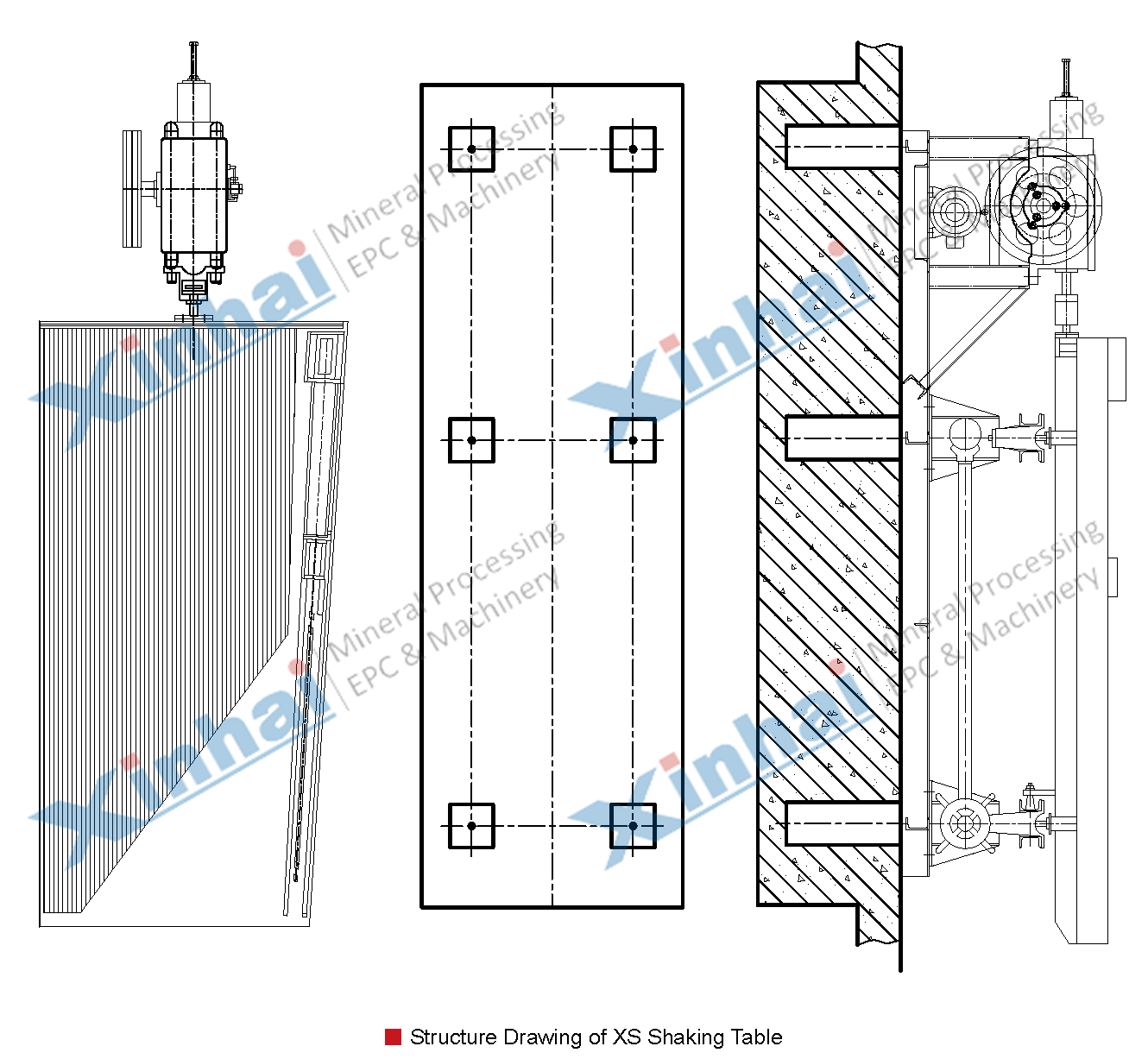

PRODUCT STRUCTURE

The working principle of gold concentrating table (shaking table) is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.

TECHNICAL PARAMETERS

ModelXS 7.6XS 4.08XS 1.95XS    0.5
Bed    Surface TypeCoarse    Sand Bed SurfaceFine    Sand Bed SurfaceSlurry    Bed Surface3 Kinds Of Bed Surfaces Selectable
Beneficiation    Area of Bed Surface (m2)7.67.67.64.081.950.5
Bed Surface DimensionLength (mm)450045004500300021001100
Width of Driving End (mm)18501850185013201050500
Width of Concentration End (mm)1550155015501100850430
Max. Feed Size (mm)20.50.074Ore    Sand -2 Slurry -0.1Ore Sand-2 Slurry -0.074Ore    Sand -2 Slurry -0.074
Capacity (t/h)1 ~1.80.5 ~10.3~0.50.4~1.50.3~0.80.05~0.2
Feed Density (%)20 ~3018 ~2515 ~2010 ~30
Stroke (mm)16 ~2211 ~168~166~3012 ~289~17
Jig Frequency (r/min)220250280210~320250~450280~460
Water Consumption (t/h)0.7 ~10.4 ~0.70.4    ~0.70.3~1.50.2 ~10.1~0.5
Notch Groove Section ShapeRectangleSawtooth WaveTriangleRectangle,    Sawtooth Wave and Triangle Selectable
Motor Power (kW)1.11.11.11.11.10.55
