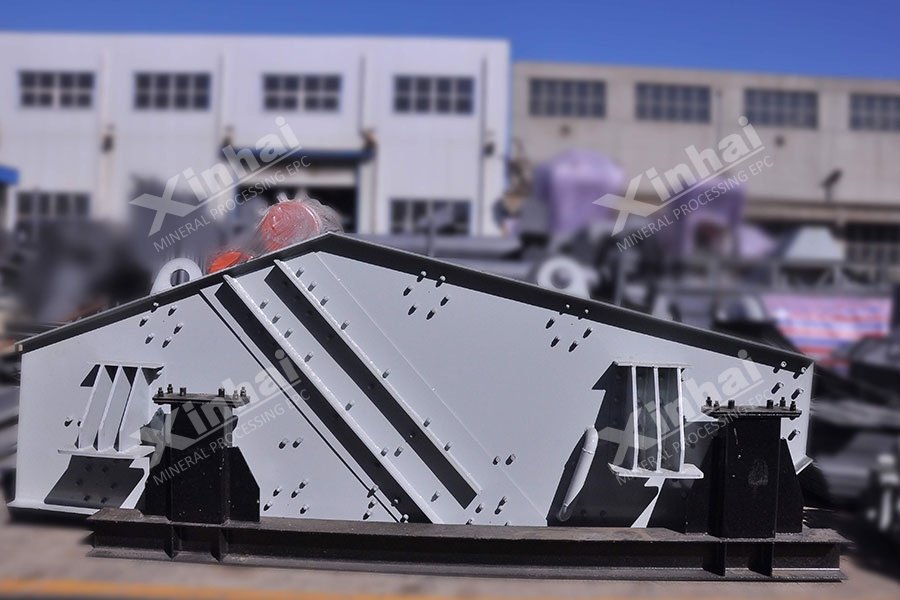

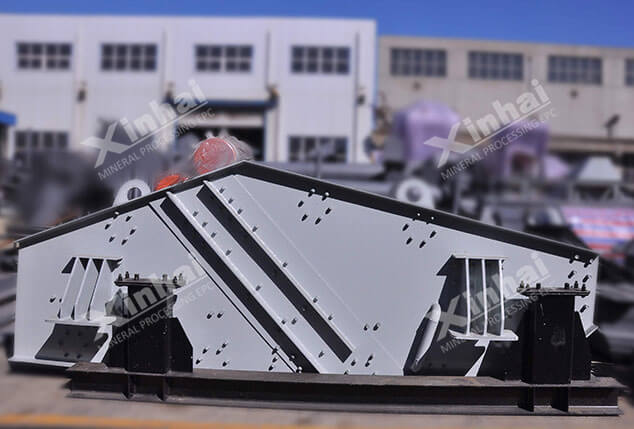

Auto Centering Vibrating Screen
PRODUCT

Auto Centering Vibrating Screen

[Introduction]: A traditional and widely used vibrating screen machine.

[Capacity]: 20~300t/h

[Improvement]: Elastic location limit part is made of Xinhai wear-resistant rubber. Adopting the new patent technology: a seat type vibrating screen jacking device, Patent No. 201120562516.7

Advantages

01

Large amplitude, high screening efficiency;

02

Offering Xinhai wear-resistant screen mesh with the service life of 3-10 times longer than steel’s, and 2 times than PU’s;

03

High elastic wear-resisting rubber spring, long life, low noise, easy maintenance;

04

The eccentricity of large pulley and eccentric shaft is 3-5mm, which increases the stability of transmission;

05

The counterweight mass and amplitude can be adjusted;

06

The two types of vibrating screen, pedestal type and hanging type.

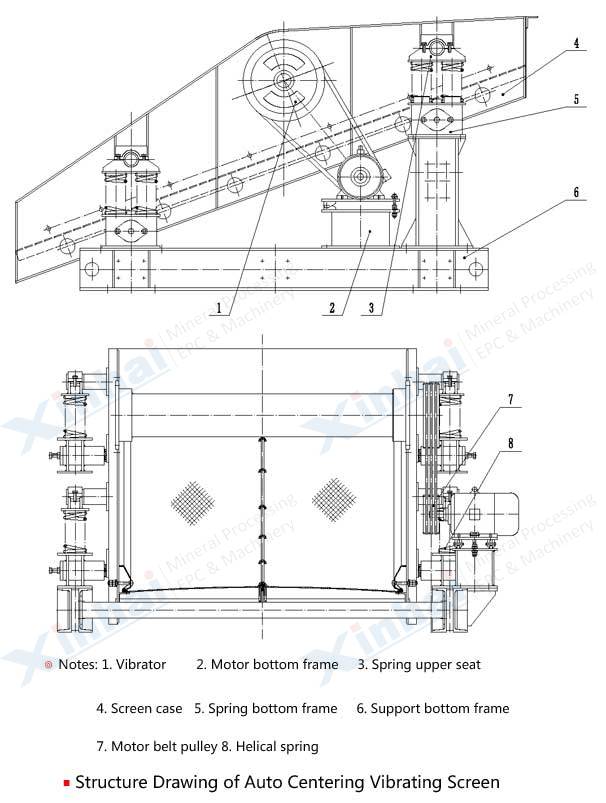

Product Structure

Driven by the motor through the pulley, the eccentric main shaft integrated with the screen box rotates and generates centrifugal force, and drives the vibration of circular trail of the screen box.

Technical Parameters

ModelSpec.Max. Feed Size (mm)Capacity
(t/h)
Motor ModelMotor Power
(kW)
Weight
(kg)
Remarks
SZZ0918900 X18004020 ~25Y100L1-42.2420Hanged
SZZ091810 ~30553Pedestal
2SZZ091820 ~40570Pedestal
SZZ12251250X2500100100Y132S-45.51017Hanged
SZZ12251001466Pedestal
2SZZ1225100~1501320Hanged
2SZZ1225100~1501870Pedestal
SZZ15301500X300090~200Y132M-47.51850Hanged
SZZ15302665Pedestal
2SZZ15302963Hanged
SZZ15401500X400010090~200Y160L-4152865Pedestal
2SZZ15401500X400040090~200Y160L-4153412Pedestal
SZZ18361800X3600150100~300Y160M-4114500Hanged
2SZZ1836Y180M-418.55616Pedestal
