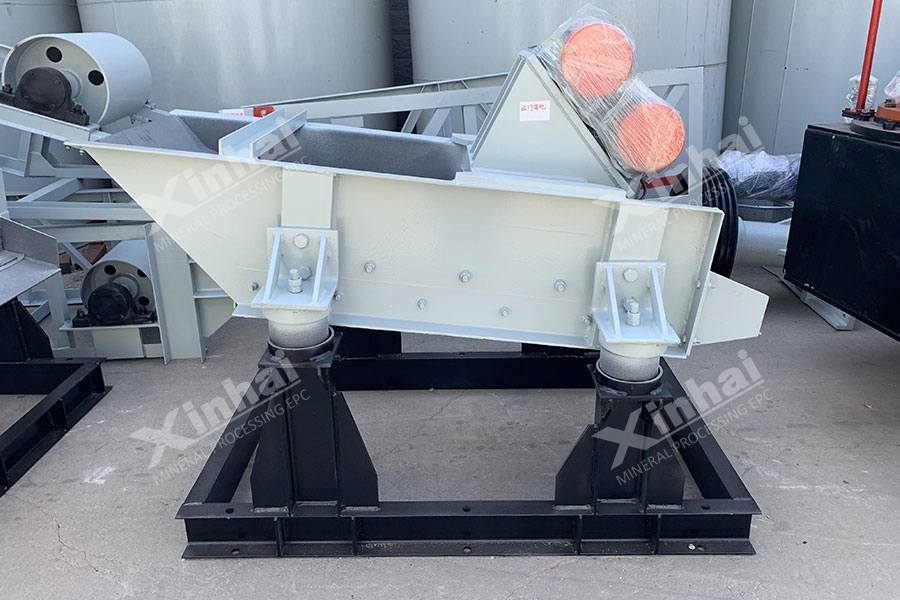

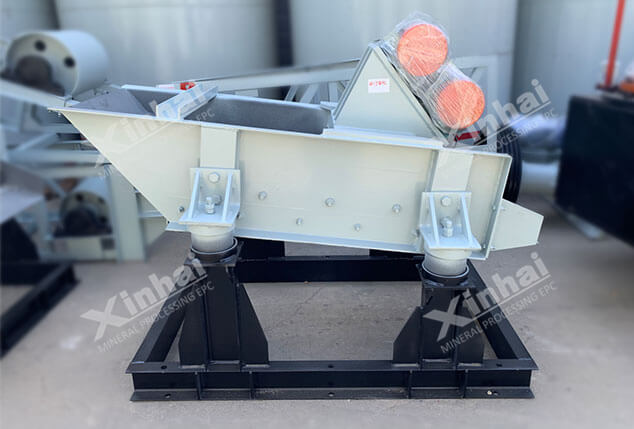

Linear Vibrating Screen

Linear Vibrating Screen

[Introduction]: Linear vibrating screen is a vibrating screen that the screen box makes the reciprocating movement along the directional linear, used for fine screening.

[Capacity]: 20~300t/h

[Improvement]: The screen angle of Xinhai linear vibrating screen is adjustable. Vibrating motor as vibration exciter, low energy consumption.

ADVANTAGES

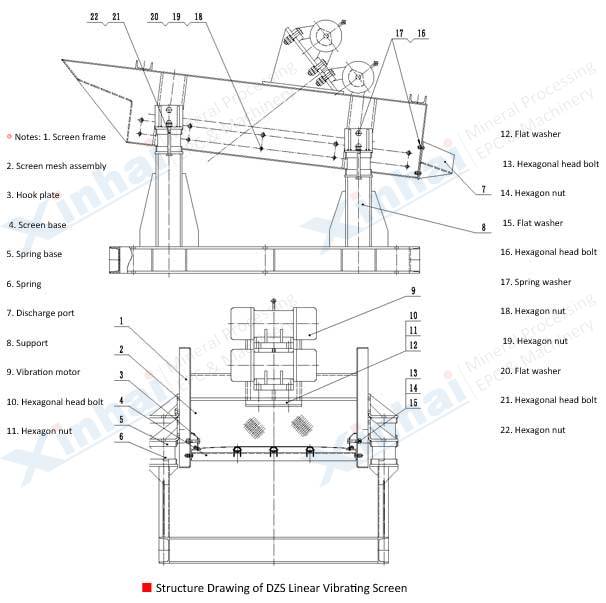

PRODUCT STRUCTURE

DZS linear vibrating screen is driven by double vibration motors.

While two vibration motors doing synchronous rotation or counter rotation, the exciting force generated by eccentric block is canceled out with transverse exciting force, and the longitudinal exciting resultant force is passed on the whole screen surface of liner vibrating screen. In this way, the motion track of vibrating screening machine is a straight line. There is an inclination between the exciting force direction and screen surface, under the action of the resultant force of exciting force and material gravity, the materials on screen surface of liner vibrating screen are thrown up and jumped forward in a straight line. In this way, the materials screening and classifying are achieved.

TECHNICAL PARAMETERS

ModelScreening Area (m2)Amplitude (mm)Motor ModelMotor Power (kW)Rotating Speed (r/min)
DZS04120.4X1.22~4YZS-3-60.25970
DZS04150.4X1.5
DZS06120.6X1.2
DZS07180.7X1.8YZO-10-60.75960
DZS08160.8X1.6
DZS09120.9X1.2
DZS09180.9 X 1.8YZU-10-60.75
DZS10181.0X1.84~6YZU-16-61.1950
DZS10201.0X2.03~5YZO-20-62
DZS12251.25X2.5YZU-16-61.1
DZS15301.5X3.0YZU-20-6B1.5960
2DZS15301.5X3.0YZO-20-62950
DZS15361.5X3.6YZU-20-6B1.5960
2DZS09180.9 X 1.84~6YZU-25-6B1.5960
2DZS10181.0 X 1.82~4YZU-20-6B1.5960
