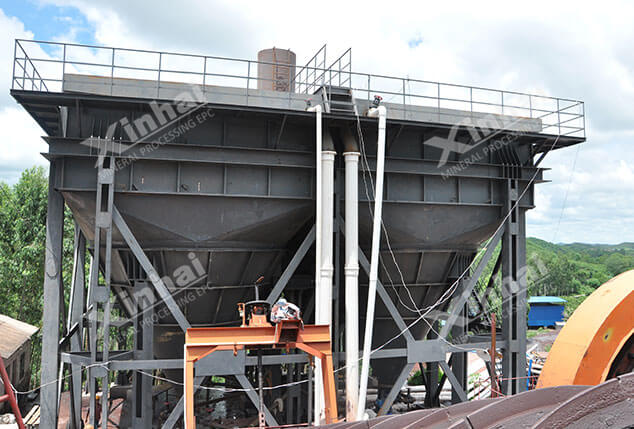

Tilted Plate Thickener
PRODUCT

Tilted Plate Thickener

[Introduction]: A slurry gravity thickener designed with tilted plate in sedimentation area

[Capacity]: 20~3500m²

[Improvement]: The stirring device is installed in the center of tiled plate thickener; the vibrator is installed on the outer wall of cone to accelerate the thickening and avoid blockage.

Advantages

01

The vibrator reduces the blockage by high frequency vibration and impact;

02

Installing underflow valve to increase the concentration of underflow;

03

The tilted plates installed in thickener are good for large equipment and reducing the height which improve capacity by 2-3 times;

04

The equipment can be used not only for concentration and return water, but also for classification and desliming, adding flocculants to pre-treat the ore slurry, and also can be used as a high-efficiency thickener,

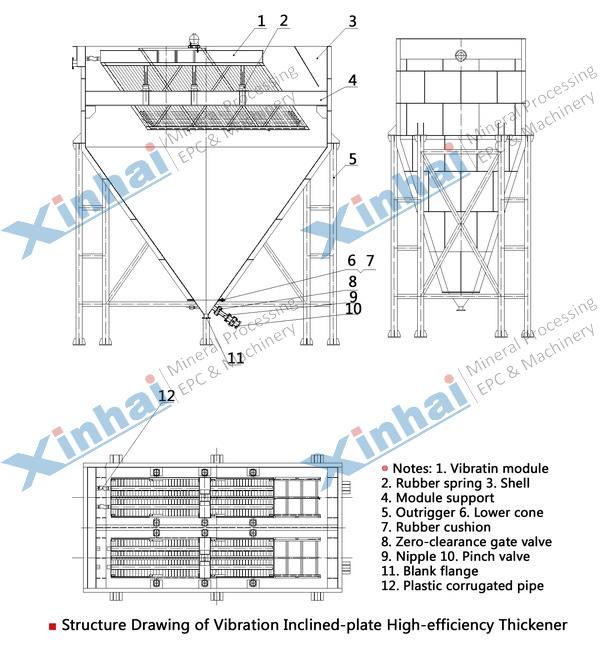

Product Structure

Firstly, the mineral liquid is mixed uniformly and then carried into the thickener. Secondly, by the action of cohesive and gravitational force, the majority of overflows are overflowed through the overflow groove. The minority of overflows form a small cyclone inside the settling area and subsequently are compressed in the compressive area. As a result, granules are compressed by the gravity and then fall down, while clear liquid moves upward. Finally, concentrations are discharged from the lower underflow tube.

Technical Parameters

ModelSubsidence Area (m2)Cone Hopper NumberLength (mm)Width (mm)Height (mm)
ZQN16161369011004360
ZQN31311376024604360
ZQN50501369033005260
ZQN63631556024605630
ZQN1001001556035605500
ZQN1251251551044005660
ZQN1501501771037607890
ZQN2002001771048808160
ZQN2502501771060008500
ZQN3003001800070207890
ZQN4004001771092607890
ZQN50050017710115008500
ZQN60060011488070207890
ZQN80080011488092608160
ZQN100010001、2、414880114608500
ZQN200020004、814880229208500
