Xinhai Froth Flotation Process

Based on 20 years of experience in mineral processing industry, Xinhai has been committed to the development and innovation of froth flotation process, aiming at providing professional flotation cell and comprehensive service, including from previous beneficiation test analysis, middle flotation process design and equipment selection, and later installation and debugging. Currently, Xinhai has provided the advanced professional Xinhai froth flotation process for many mineral processing projects at home and abroad.

Xinhai flotation process

Introduction:

Froth flotation process is one of the most widely mineral processing method used in the production. It uses the difference of physical and chemical properties in mineral surface, and rely on air bubbles buoyancy in the pulp to realize mineral separation process. On the basis of the flotation separation, Xinhai has developed a series of flotation reagents, which not only reduce 10% reagent consumption, but also increase 20% flotation efficiency.

Application:

Xinhai froth flotation process can be widely used in non-ferrous metal, ferrous metal and nonmetal minerals, especially used in roughing and scavenging of large and medium-sized flotation plant. It can process non-ferrous metals, such as gold, silver, copper, iron, tungsten, lead, zinc, tin, molybdenum, nickel, tantalum, niobium and manganese ore; and also process nonmetal minerals, such as fluorite, talc, etc.

If you have any questions, please contact us by the following ways, and we will provide you with better help!

Xinhai Flotation Cell

If you have any questions, please contact us by the following ways, and we will provide you with better help!

A key factor of flotation index - Flotation Reagents

Compared with common flotation reagents, Xinhai special flotation reagents not only enhances the mineral surface hydrophobicity, mineral adhesive fastness and selectivity on the bubble, but also improves more 25% mineral flotation separation speed, which plays a very important role in flotation separation efficiency and flotation index.

If you have any questions, please contact us by the following ways, and we will provide you with better help!

Case -- Iran 300tpd Gold Froth Flotation Plant

In May 2016, Iranian client commissioned Xinhai Mine Research Institute to conduct beneficiation test after collected 50kg samples in the site. After tested the ore properties of sample ore, Xinhai lab concluded that the ore was gold-bearing quartz vein deposit, the metal mineral were pyrite, limonite and natural gold. The ore grade is 5.61g/t.

  • Beneficiation Test
  • Beneficiation Test
  • Beneficiation Test
  • Beneficiation Test

Xinhai mineral processing plan: After finished the test in July, Xinhai Mine Research Institute carried on the preliminary exploration of its processing conditions. After compared froth flotation process with cyanide leaching process, Xinhaia Mine Research Institute found that the gold recovery rate in froth flotation process was far higher than in cyanide leaching process. Therefore, after consulting with the client, Xinhai decided to adopt two-stage closed circuit crushing, one-stage grinding and single froth flotation process to get the gold concentrate. After the grinding, then one roughing, three scavenging, three concentration, the process got 87.16% recovery rate of gold concentrate.

Selection of Flotation Cell:

According to the beneficiation test and froth flotation process requirements, Iran 300tpd gold froth floatation plant needed the following flotation cell model:

Equipment Name Type Unit Quantity Power (KW) Voltage (V)
Flotation cell SF-8 3 3*30 380
Flotation cell JJF-8 7 7*22 380
Flotation cell SF-4 3 3*15 380
Flotation cell JJF-4 9 9*11 380
Flotation cell SF-2.8 33 33*11 380

If you have any questions, please contact us by the following ways, and we will provide you with better help!

In August 2016, Xinhai sent professional engineers to the site to learn about the mineral resources and construction conditions. Considered its location, mineral characteristics, the project needs to solve the following problems:

1) The project was located in the Iranian plateau, which was about 2,000 meters above sea level. The weather was cold in the winter, which needed to take into consideration;

2) The investment fund was limited, so the project needed to be completed as soon as possible.

After many experiments and technical discussions, Xinhai technical engineers put forward reasonable solutions:

1) Adopted reasonable and compact layout. Makes full use of the high difference to complete self-flow layout in the workshop design, meanwhile, makes the industrial plants as compact and warm as possible, which is easy to produce in winter.

2) Optimized froth flotation process, improved efficiency. According to ore characteristics, Xinhai timely controlled the dosage of flotation reagents, especially the dosage of xanthate, strictly controlled concentration density, and greatly improved the gold concentrate grade. At the same time, in order to complete the project construction fast and efficient, Xinhai personnel decisively abandoned home holiday arrangement, worked hard in the first line, so completed the construction of plant workshop 15 days in advance.

  • Iran 300tpd Gold Floatation Project
  • Iran 300tpd Gold Floatation Project
  • Iran 300tpd Gold Floatation Project
  • Iran 300tpd Gold Floatation Project

If you have any questions, please contact us by the following ways, and we will provide you with better help!

Xinhai production plant was producing flotation cell of this project. The flotation cell of this project was finished in Xinhai manufacturing plant, and was prepared for packaging.

  • Equipment Manufacturing
  • Equipment Manufacturing
  • Equipment Manufacturing
  • Equipment Manufacturing

If you have any questions, please contact us by the following ways, and we will provide you with better help!

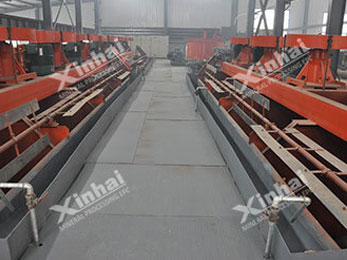

After manufactured and purchased the flotation cell, Xinhai installation and commissioning technicians started equipment installation and commissioning.

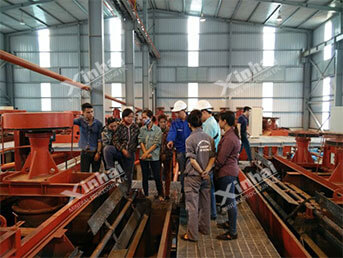

To help Iranian workers to operate as soon as possible, Xinhai technicians showed on-site training for plant workers, explained equipment operation notes, helped customers quickly establish own technical team, laid foundation for later stable operation.

  • Worker Training

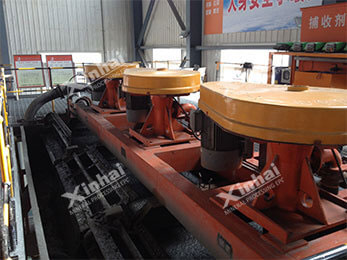

  • flotation cell
  • Installation and Commissioning

If you have any questions, please contact us by the following ways, and we will provide you with better help!

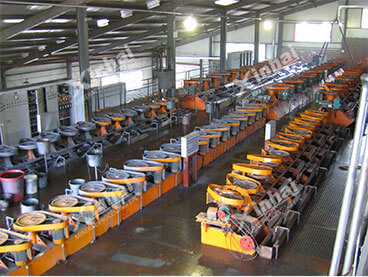

In Iran 300 tpd gold froth flotation project, the ore grade was 5.61 g/t, gold concentrate grade was 78.85 g/t, flotation recovery rate was as high as 87.16%, the final recovery rate was up to 87.16%,the customers gave high praise for these results. From the beneficiation test, mine design, equipment manufacture, installation and debugging to the worker training and standard reached, Xinhai provided a series of froth flotation process service.

  • Designed Capacity Reached
  • customer
  • flotation cell

If you have any questions, please contact us by the following ways, and we will provide you with better help!

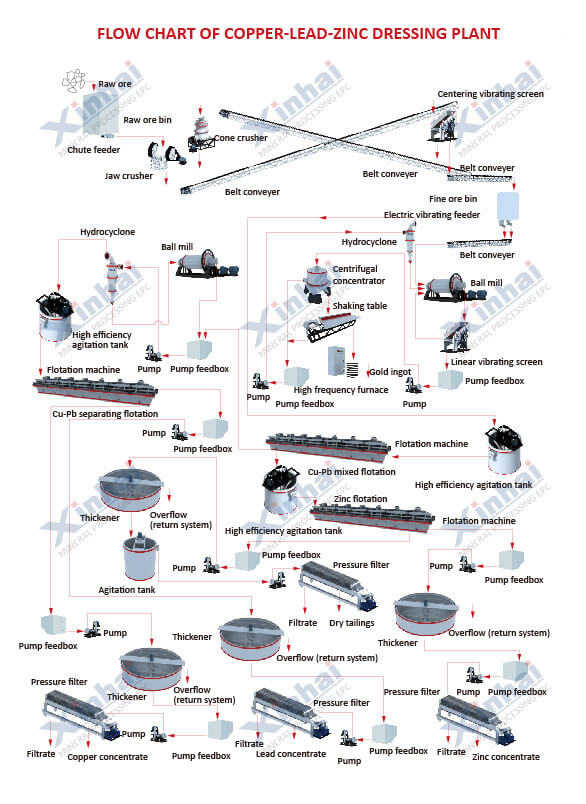

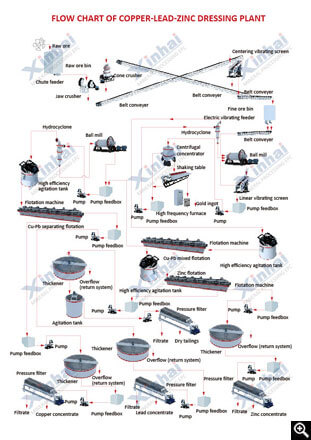

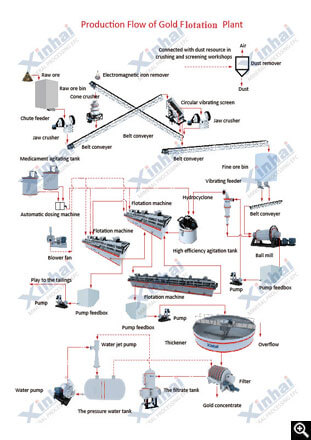

Xinhai Froth Flotation Processes Flow
