Low-Iron Quartz Extraction Method for Photovoltaic Glass

2023-01-18 XinHai Views (41)

If you want to know more information, like quotation, products, solutions, etc., please contact us online.

Photovoltaic glass is an essential material for solar power generation. It is a special glass that can use solar radiation to generate electricity and has related current extraction devices and cables. The main raw material for making photovoltaic glass is low-iron quartz sand. In recent years, with the continuous development of the photovoltaic industry and the continuous increase of enterprise production capacity, the demand for photovoltaic upstream materials has also attracted much attention. In the beneficiation process of low-iron quartz sand, the main purpose is to remove iron impurities in the quartz ore. At present, the purification methods of low-iron quartz sand for photovoltaic glass mainly include: magnetic separation, flotation, acid leaching, microbial leaching and ultrasonic method. Next, Xinhai Mining will introduce to you in detail the above five low-iron quartz extraction methods for photovoltaic glass.

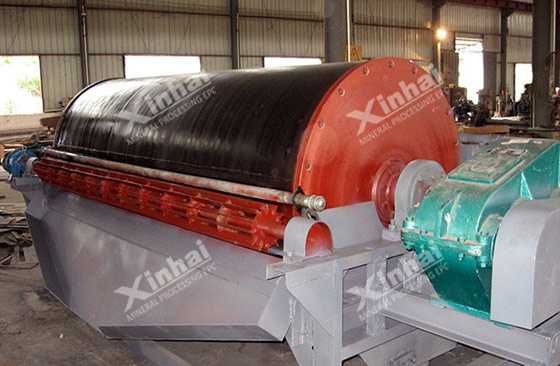

01Magnetic separation of low-iron quartz sand

Hematite, limonite, magnetite and goethite are the main iron-containing impurity minerals in quartz sand. Most magnetic substances can be magnetized in a magnetic field. Magnetic separation is mainly based on this characteristic to remove iron-containing impurity minerals in quartz sand. Magnetic separation can be mainly divided into strong magnetic separation and weak magnetic separation.

Strong Magnetic Separation: This method deals with quartz sand mainly containing weak magnetic impurity minerals such as hematite, limonite, and biotite. Generally, a wet strong magnetic separator or high gradient magnetic separation with a capacity of more than 10,000 Oersted is used. machine can be selected.

Weak magnetic separation: This method is suitable for processing strong magnetic minerals containing magnetite. Generally, it is better to use a medium magnetic machine or a weak magnetic machine for separation.

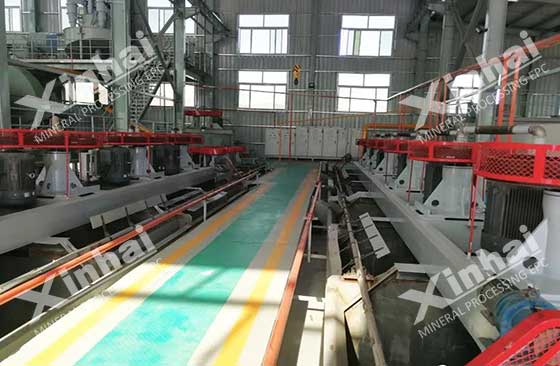

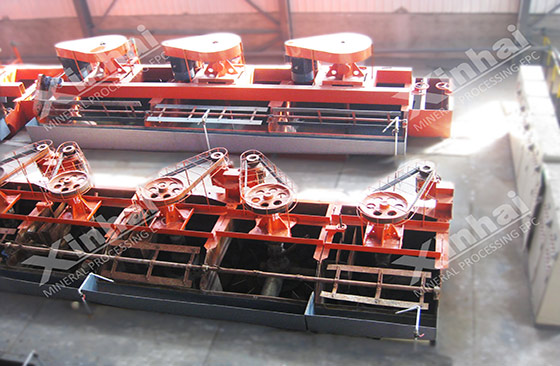

02Low-iron quartz sand flotation separation

The flotation separation method is mainly to reduce the iron content in low-iron quartz sand through the difference in physical and chemical properties between quartz sand and gangue mineral particles.

Among them, it is mainly used to remove secondary iron, feldspar, mica and clay minerals. According to the different activators used, the flotation method can be divided into three types: fluorine and acid method, fluorine-free and acid method, and fluorine-free and acid-free method. Among them, the fluorine-containing acid method using hydrofluoric acid as the activator is more typical, using amine cationic collectors to carry out flotation under strong acidic conditions. NaOH can be used to suppress quartz when flotation of iron ions. During flotation of feldspar and mica, H2SO4 can produce positioning adsorption on the surface of feldspar, and can also activate feldspar and mica at the same time.

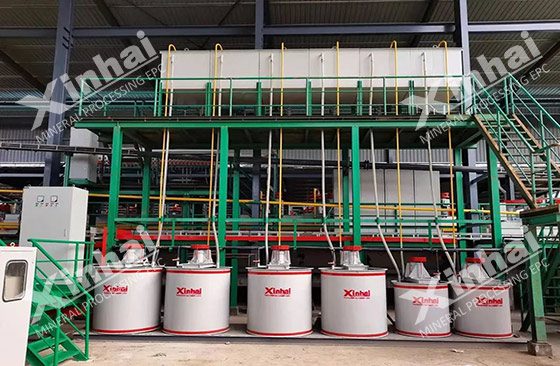

03Low-iron quartz sand acid leaching method

The acid leaching method mainly uses the characteristics that quartz is insoluble in acid and other impurity minerals are easily soluble in acid to remove iron impurities and non-metallic impurities in quartz sand and realize the purification of quartz sand. There are two commonly used acid leaching methods: single acid leaching and mixed acid leaching.

Single acid leaching method: the purification effect is limited, and it is suitable for quartz sand with relatively simple impurity minerals.

Mixed acid leaching method: Generally, two or more acids are mixed in a certain proportion to synergistically remove various impurity minerals in the quartz sand. The impurity removal efficiency is higher and the purity of the quartz sand is better.


04Microbial leaching method of low-iron quartz sand

Microbial leaching method is a new type of quartz sand purification method, which dissociates iron oxide on the surface of quartz sand by utilizing the physiological function of microbial flora. Among them, Penicillium, Pyriformis, Aspergillus niger, Pseudomonas, Bacillus, Bacillus polymyxa, Lactobacillus, etc. have good removal effect on iron oxide on the surface of quartz sand. Among them, the effect of Aspergillus niger on removing iron is better, and the removal rate of Fe2O3 is above 75%. As a new purification method, microbial leaching has the advantages of environmental protection and energy saving, but the leaching time is long and the leaching efficiency is low, which limits its industrial application.


05Ultrasonic method of low-iron quartz sand

The ultrasonic method uses shock waves generated in water to separate quartz sand from iron impurities, and is mainly suitable for removing coated iron from quartz sand. In addition, the propagation of ultrasonic waves in water will also increase the contact between quartz sand and acid solution, accelerate the dissolution of iron in quartz sand, promote the full reaction of the two, and improve the removal effect of iron. In actual production, the cost of ultrasonic technology is relatively high, and it is mostly used in the removal of iron from quartz sand with higher purity.


Driven by the demand growth of the new energy photovoltaic industry, the production capacity and output of the upstream quartz sand industry are also showing a continuous growth trend, and the demand for photovoltaic quartz sand will continue to increase in the future. Quartz extraction is an important link in the production of high-quality photovoltaic glass. Xinhai Mining recommends that first conduct research and test on the chemical composition of quartz sand, refer to scientific beneficiation test results, formulate a suitable and efficient beneficiation process, and choose the purification process with the lowest cost and the simplest process, so as to improve the production of quartz sand concentrate rate and product quality control purposes.
