Copper Sulphide Ore Extraction Process and Equipment

2023-07-03 Xinhai Views (424)

If you want to know more information, like quotation, products, solutions, etc., please contact us online.

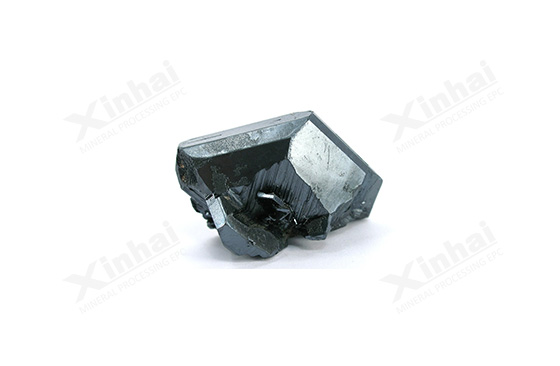

Copper sulfide, as one of the important secondary copper minerals, is commonly found in copper deposits. Copper sulfide is dark gray to black with a metallic luster. It usually exists in the form of fine granular or massive aggregates. Copper sulfide is formed by altering other copper minerals in the presence of oxygen. It can be produced by the weathering and oxidation of primary copper sulfides such as chalcopyrite or sulphurite. In terms of its composition, copper sulfide consists of copper and sulfur atoms. It has a high copper content, typically about 80% copper, and is therefore a valuable source of copper.


Use the table of contents below to navigate through the guide:

01Copper sulphide ore extraction process

Due to its dense and compact nature, it is relatively easy to separate from gangue (undesirable minerals and impurities) during ore processing. The copper sulphide ore extraction process for copper sulphide typically involves multiple steps to extract and concentrate the copper content. The following is a general overview of the copper sulfide beneficiation process:

1. Crush and Grind: First crush the copper sulfide ore into smaller particles, and then grind it into fine powder. This step increases the surface area of the ore, facilitating subsequent mineral separation.


2. Flotation: Mix copper sulfide ore powder with water and chemicals (including collectors and foaming agents). Air bubbles are then introduced into the mixture, causing the copper sulfide particles to attach to the air bubbles to form a foam. The froth, which contains copper sulfide concentrate, is skimmed from the top of the flotation cell.

3. Concentration and filtration: The copper sulfide concentrate obtained from flotation is usually further processed to remove excess water. This is usually achieved through a concentration process, where the concentrate is mixed with a flocculant, which causes the solid particles to settle. The settled material is called thickener, which is then separated from the remaining water by filtration.

4. Smelting: The copper sulfide concentrate is heated together with flux and reducing agent in a high-temperature furnace for smelting. The smelting initiates a chemical reaction that separates the copper from impurities and produces a molten mass of copper.

5. Refining: The molten copper lumps obtained from smelting go through refining processes, such as converter refining and electrolysis, for further treatment to remove impurities and obtain high-purity copper. These refining processes involve oxidation, reduction and electrolytic separation to produce copper anode plates or other desired copper products.

It should be noted that the specific beneficiation process for copper sulphide may vary depending on the characteristics of the ore, the desired copper concentration grade and the processing technology available. The above overview provides a general overview of a typical beneficiation process for copper sulphide.


02Copper sulfide beneficiation equipment

In the beneficiation process of copper sulfide ore, a variety of machines and equipment can be used to complete the different stages of processing. The following are some of the machines commonly used in copper sulfide ore beneficiation:

1. Jaw Crusher: Jaw Crusher used to initially crush copper sulfide ore into smaller particles. It is usually used as primary crushing equipment in the beneficiation process.

2. Cone Crusher or Impact Crusher: These equipment can be used for secondary or tertiary crushing of copper sulfide ore to further reduce its particle size.

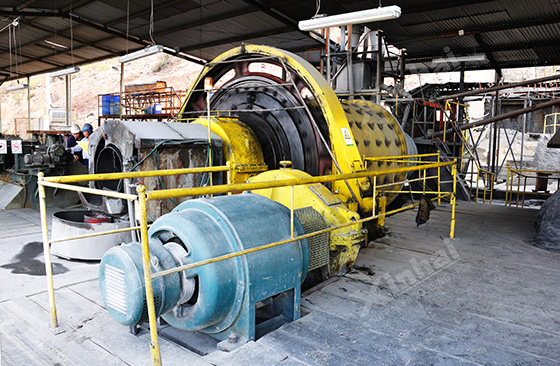

3. Ball mill: Copper sulfide ore may be ground in a ball mill, which is a rotating cylinder filled with steel balls. The grinding action helps to release further copper sulfide particles, facilitating subsequent mineral separation.

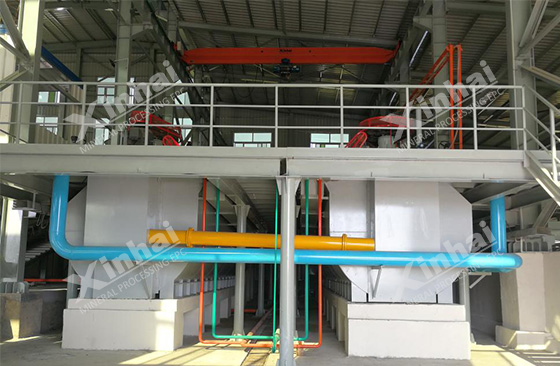

4. Flotation machine: Flotation machines include equipment such as mechanical flotation cells or flotation columns, which are usually used in the flotation process. They generate air bubbles, which promote the attachment of copper sulfide particles to the air bubbles, and realize the separation of copper sulfide and gangue minerals.

5. Concentrator: The concentrator is used to remove excess water from the copper sulfide concentrate obtained from flotation. It facilitates the settling of solid particles and separates the concentrate from the water.

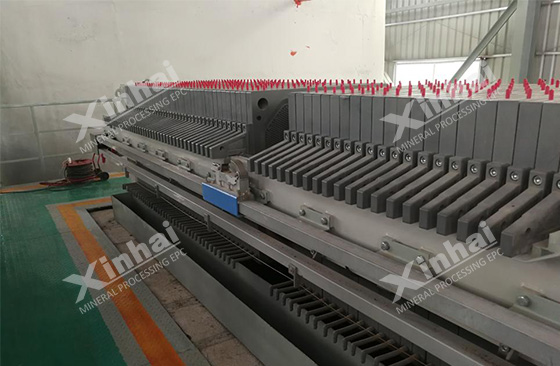

6. Filter: Usually, a filter is used to filter and separate the concentrated copper sulfide concentrate from the remaining water.

7. Melting Furnace: Copper sulfide concentrate can be processed in a smelting furnace, which is a high-temperature furnace used to melt the concentrate and separate the copper from impurities.

8. Electrolytic refining tank: An electrolytic refining tank, such as an electrolytic cell or tank-type electrolytic equipment, is used in the electrolytic refining process to purify copper obtained from smelting.


It should be noted that the specific machines used for the copper sulphide ore extraction process may vary depending on factors such as the size of the operation, available technology and process requirements. Different plants may employ different equipment configurations based on their specific needs.

The above is the beneficiation process and equipment of copper sulfide ore. The ore properties and characteristics of each copper mine are different, and the beneficiation process and equipment adopted are also different. The specific process and equipment should be based on the specific characteristics of the ore. Xinhai Mining recommends to conduct copper ore beneficiation test analysis. According to the test results, copper ore beneficiation solutions and equipment can be customized. Welcome to consult.
