Spodumene is one of the main sources of lithium. It is found in muscovite-type and lepidolite-type granite pegmatites. It is a metasomatic mineral in the process of pegmatite action. It is often associated with lepidolite, beryl, niobium-tantalum iron ore, tourmaline, muscovite and other symbiosis. And all of them are silicate minerals. In mineral processing technology, spodumene often uses flotation method to purify lithium ore. You can learn about spodumene flotation method from the following.

Spodumene in the nature

Generally, the spodumene with industrial value can be processed by flotation separation, especially the spodumene in the form of fine-grained dissemination. When processing the spodumene with flotation separation method, you can add "three alkalis and two soaps" to complete the ore beneficiation.

Use the table of contents below to navigate through the guide:

01Tri-alkali

It refers to sodium hydroxide (NaOH), sodium carbonate (Na2CO3) and sodium sulfide (Na2S), which are used as regulators for spodumene flotation. Among them, Na2CO3 and Na2S are used to eliminate the influence of molten salt ions in the pulp. The highly alkaline medium formed by NaOH can scrub the surface of spodumene. Its dosage, adding location, and the concentration of Ca2+ in the water used in the beneficiation process will all have an impact on the flotation of spodumene.

spodumene ore stones

02Two soaps

It refers to oxidized paraffin soap and naphthenic acid soap, which are used as collectors for spodumene, and also have foaming properties. However, its dosage will change with the hardness of the water. When the water quality is soft, naphthenic acid soap is not conducive to flotation. On the contrary, the flotation effect is significantly increased.

The flotation separation methods of spodumene can be divided into positive flotation method, reverse flotation method and joint flotation method.

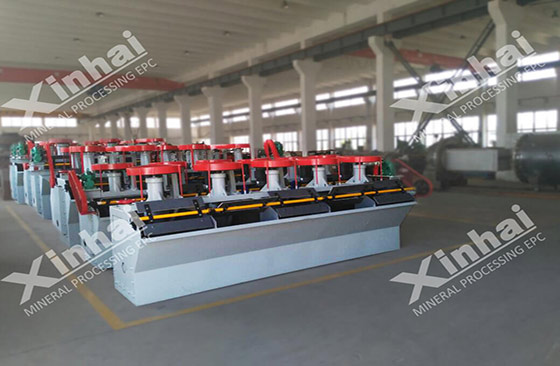

Mechanical stirring flotation machine.in xinhai machinery

031. Spodumene positive flotation process

The positive flotation of spodumene is completed in an acidic medium, so it is also called "acid method". An anionic collector is often used, and the ground minerals are added to a strong acid medium for high-concentration and strong stirring. The high-concentration pulp is treated with sodium hydroxide, and the pulp is removed under the action of acidity. After several times of scrubbing and desliming, fatty acid or soap collectors are added to directly float spodumene.

Since the added sodium hydroxide reacts with the silicate gangue minerals in the slurry, and generates sodium silicate (water glass) inhibitor. Therefore, the sulfur dioxide (SiO2) leached from the surface of the spodumene is activated, while the gangue minerals form insoluble compounds due to the activated cations (iron, calcium, copper, etc.) on the surface, which are then inhibited to achieve flotation of spodumene.

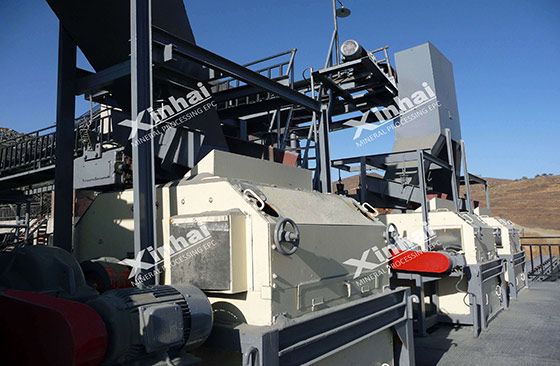

Magnetic Separation Dry Separator at work

042. Spodumene reverse flotation process

The spodumene reverse flotation process is completed in an alkaline medium, also known as "alkali method". It mainly uses lime, starch and dextrin as inhibitors, and sends oil as a foaming agent. Under the alkaline condition(pH value is 10.5-11.0), dextrin modifier can effectively inhibit spodumene. Then amine cation collectors are used to collect silicate gangue minerals such as quartz, feldspar, and mica to realize reverse flotation.

Sometimes, in order to obtain qualified spodumene concentrates, products containing some iron will be concentrated before flotation, and then hydrofluoric acid and fatty acid collectors (resin acid soaps) are added to flotate spodumene concentrates.

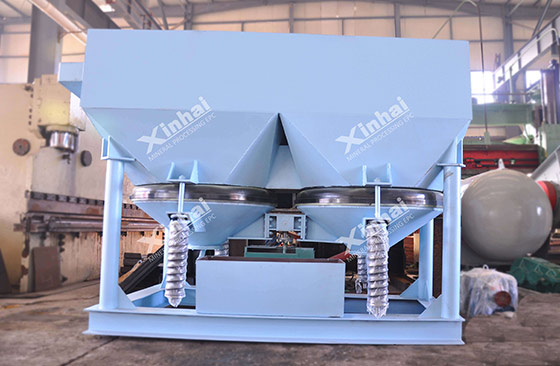

Jig machine from xinhai shipment

053. Spodumene combined flotation process

If it is difficult to obtain qualified spodumene concentrate from lean, fine and miscellaneous spodumene by a single flotation method, a joint flotation method is required. Currently, the commonly used flotation-magnetic separation method and flotation-magnetic separation-gravity separation method.

Flotation-magnetic separation method: First, oxidized paraffin soap and naphthenic acid soap are used as combined collectors, and NaOH is used as pH adjuster. Then the iron is removed by strong magnetic separation to obtain spodumene concentrate with low iron content.

Flotation-magnetic separation-gravity separation method: After the milled material is slurried, it enters the gravity separation process (remove the tantalum, niobium and other products). Lawan is slurried, and the spodumene concentrate is floated under the condition of high alkalinity, and then purified by strong magnetic separation to remove iron impurities.

The above are flotation methods for spodumene beneficiation. In addition, the methods that can effectively recycle spodumene include: hand selection method, gravity separation method, magnetic separation method and thermal cracking method (hot crushing method). In the actual ore beneficiation plant, the beneficiation process of spodumene should be determined according to the properties of its ore. Therefore, we recommends that the beneficiation test should be carried out first, and the appropriate beneficiation process should be scientifically and reasonably customized according to the test results to avoid that inappropriate mineral processing results in a waste of resources.
