Xinhai: Your Specialist Partner for Mineral Processing Design

Mineral processing design is essential to help mining projects do well in business. They also keep operations safe. Plus, they boost efficiency and aid steady growth. When mining a certain deposit, teams gather info from engineering, economics, geotechnics, and ore traits. They do this to pick solid mining methods and top design choices. Good planning lets mines pull out resources well. At the same time, it handles safety, eco concerns, and profits over time.

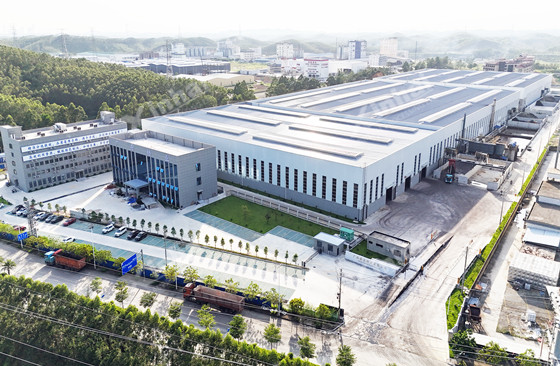

01What Is Mineral Processing Design?

Mineral Processing Plant Design refers to the systematic planning and engineering process for constructing and operating a beneficiation plant. It aims to efficiently transform low-grade raw ore into marketable or further refinable high-grade concentrate. The core of the design lies in establishing a scientific and rational process flow that maximizes the removal of gangue, improves mineral grade, and ensures the entire process is economically feasible, technologically reliable, and easily implementable.

02Key Elements of Mineral Processing Plant Design

Mineral processing plant design goes step by step. It sharpens ideas as it goes. And it trims risks in the project. A smart design path often has feasibility studies, preliminary design, detailed construction drawings, and safety setups. This way, the plant gets built on basics like good tech, fair costs, and clean work.

1. Feasibility Study

The feasibility study sets up choices for the project. It looks as if tech works and money adds up. Tech plans include the processing flowsheet. They also touch on early checks for civil works, electrical systems, and automation. For money side, it eyes investment guesses and profit outlooks. Tools like net present value and payback period help decide if it's worth it. Take a gold mine in South America we did last year. We figured a payback there in just 2.5 years, which sealed the deal for investors. At Xinhai, we mix in what clients want from the start. Our big store of project data helps. And comparing options gives advice that's ahead of the curve yet doable

2. Preliminary Design

Once the project gets the go-ahead, preliminary design digs deeper into feasibility findings. It details tech plans more. This part makes full write-ups and drawings. Equipment picks and setups get mostly locked in. Cost estimates shift to more accurate budgets. These results feed into buying gear through tenders. They also shape later construction drawings. From our EPC work, Xinhai pays close attention to how parts fit together. And if it's easy to build.

3. Safety Facilities Design

This fits as a main chunk of preliminary design. Safety facilities zero in on health, safety, and eco risks. It lists out hidden dangers in the process flow and gear setups. Then, it offers fixes through engineering and management steps. Such a design is a must for clearing government safety checks. It's also the base for real safety built in. Xinhai threads HSE ideas throughout the design. This keeps projects on track. And it sets up safety that lasts.

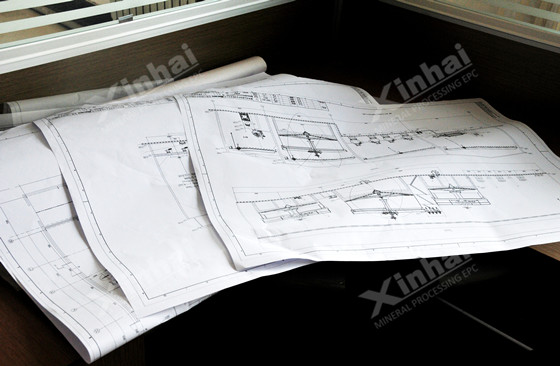

4. Construction Drawing Design

Construction drawings change plans into clear guides for site work. They hold equipment install plans, piping and instrumentation diagrams, civil structure drawings, and electrical wiring schematics. This step ties tightly with buying and building schedules. It handles small changes that pop up. Xinhai taps advanced 3D team platforms. They control tweaks well. This drops build errors like misses or clashes. In turn, it guards quality and keeps things on track.

Xinhai goes beyond full mine EPC+M+O services. We can hand out single bits, too, like feasibility studies, preliminary design, or construction drawings. It depends on where your project sits. We link design smoothly to big project goals.

03Why Mineral Processing Plant Design Matters

1. Builds Economic Viability

Spot-on design forms the base for money calls. Pick gear right, tally engineering amounts, and guess use rates. This nails down the full costs and running expenses. Link it to recovery gains for tight money checks. Then, you size up profits smartly. It skips risks right from the top. For example, our calcs showed 15% lower ops costs in one iron ore setup than rivals, thanks to wise pump choices.

2. Guides Engineering Execution

Design papers act as the official map for building. They lay out site plans, process piping, equipment bases, and load on structures.

This hands exact rules for gear buys, civil jobs, and setup tests. It lifts quality and builds pace. Think of a tailings plant we drew up—those specs cut install time by 20%, no kidding.

3. Manages Project Risks Systematically

Good design spots tech, safety, and eco risks early. It heads them off. Solid flowsheet tests stop shutdowns from bad picks. Built-in safety and green parts hit rule marks. They back steady runs long-term. We've seen it: one client's plant dodged a $2M fix bill because we flagged a ventilation snag upfront.

4. Enables Smart Future Operations

Now's the time to process designs, think ahead. They add smarts in. We mix automation controls, online checks, and digital twins. This builds plants that run smoothly and are clear. And we leave spots open for growth or new tech. In a recent lithium job, we wired in sensors that now track output in real time, saving 10% energy daily.

04Core Technologies in Mineral Processing Design

Mineral processing design pulls from many fields. It stays fresh and steady. We lean on these main techs:

• Ore Characterization Techniques: This means mineralogical analysis, detailed lab tests (batch and locked-cycle), and even pilot tests. They give raw facts for flowsheet builds.

• Process Simulation and Optimization: Tools like METSIM or JKSimMet run flowsheet sims and mass balances. They guess how the system acts. And tweak settings before go-live.

• Engineering Design and Analysis: CAD/3D modeling and BIM let teams work together. FEA checks stresses on the key gear and builds.

• Automation and Intelligent Control: We blend DCS/PLC systems, online analyzers, and digital twin platforms. This handles production auto and smart.

• Environmental and Sustainability Technology: The Key is Dry Tailings Storage, Water Recycling, and Eco-Friendly Reagents. They cut the eco mark as low as possible.

05Selected Mine Design Case Studies

Xinhai holds strong skills in open-pit and underground mine design, equipment integration, and full services. We've handed off many jobs around the world. Here are a few fresh picks:

1. Xinjiang 50,000 tpd Low-Grade Titanomagnetite Processing Plant: Innovative flowsheet design enabled economic recovery of low-grade ore.

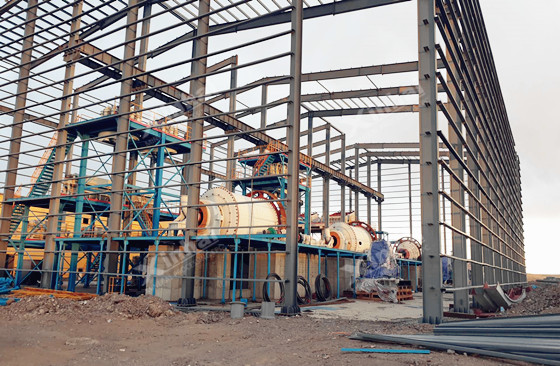

2. Nigeria 6,000 tpd Lithium Spodumene Mining and Processing Feasibility Study and Construction Drawings: Key technical docs and blueprints supported financing and build-out.

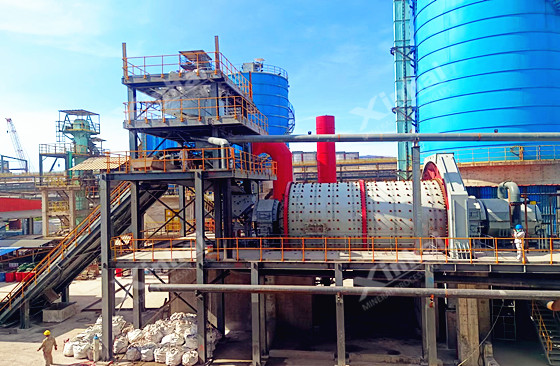

3. Tajikistan 10,000 tpd Silver Polymetallic Ore Validation Tests and Mining-Processing Construction Drawings: Lab tests and integrated design ensured comprehensive recovery from complex ores.

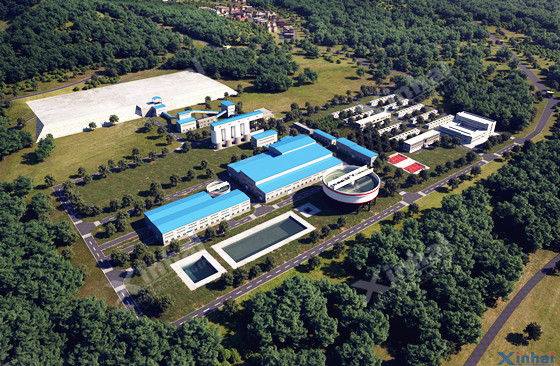

4. Zimbabwe 2 Mtpa Gaika Gold Mine Processing Tests and Mining-Processing Feasibility Design: Solid basis for development decisions on this large gold project.

Whether you're fresh from ore scouting in feasibility studies, refining an old plant's flowsheet, or starting a major mine build from scratch, xinhai mineral processing epc provides services tailored to your needs. Reach out to our technical advisors now for sharp ore tests and first project ideas. Let smart design kick your mine toward wins!
