Gold Mine Gravity Separation, Flotation and Cyanidation Equipment

2024-04-04 Xinhai Views (234)

If you want to know more information, like quotation, products, solutions, etc., please contact us online.

In the process of gold mine beneficiation, reasonable configuration of equipment is crucial to the normal and smooth progress of the beneficiation process. High-quality equipment ensures efficient operation of the production line, high productivity and gold recovery rates, while minimizing downtime and operating costs. In order to select suitable gold ore beneficiation equipment, factors such as equipment reliability, durability, performance, energy efficiency, ease of maintenance, etc. should be fully considered. Select a reputable supplier with a track record of delivering high-quality equipment and thoroughly evaluate equipment specifications, technical support and after-sales service to ensure the gold mineral processing operation proceeds properly. The following will introduce you to the equipment used in gold mine gravity separation, flotation and cyanidation operations to help you set up a gold mine beneficiation production line.

Use the table of contents below to navigate through the guide:

01Gold mine gravity separation process equipment

The gravity separation process mainly separates concentrate from gangue minerals based on the density difference between gangue minerals and gold particles. Commonly used equipment in gold mine gravity separation include the following:

1. Jig: Uses pulsating water flow combined with gravity to separate particles of different densities. Gold particles are heavier and settle faster on the jig bed than the lighter gangue minerals.

ore gravity separation system

2. Shaking table: Use vibration motion to separate gold from gangue minerals based on differences in particle density. Gold particles are concentrated along shallow valleys, while lighter gangue minerals are washed away.

3. Spiral concentrator: Use centrifugal force to separate minerals according to their density. When the slurry flows down the spiral groove, the heavier gold particles settle to the bottom, while the lighter particles are pushed upward and discharged from the top.

4. Centrifugal concentrator: Use centrifugal force to separate gold particles from gangue minerals. The slurry is fed into a rotating bowl, where high centrifugal force causes denser gold particles to concentrate on the bowl walls.

hydrocyclone classifying system

5. Hydraulic classifier: Uses water flow and gravity to separate particles based on their settling speed. The gold particles settle faster due to their higher density, allowing them to concentrate while the lighter gangue minerals are carried away.

02Gold mine flotation process equipment

The gold mine flotation process uses the differences in surface properties of gold-bearing minerals and gangue minerals to separate them. The equipment used in the gold ore flotation process is as follows:

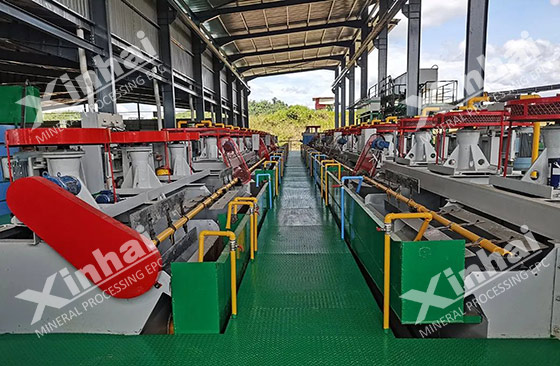

working ore flotation machine

1. Flotation machine: The flotation machine is usually arranged into several tanks and contains a pulp level control system, an aeration system and a foam removal system. Flotation machines include mechanical flotation machines, column flotation machines and pneumatic flotation machines. Different flotation machines are selected according to specific ore characteristics and processing requirements.

2. Flotation reagents: Reagents are chemicals added to the flotation process to selectively separate gold-bearing minerals from gangue minerals. Commonly used flotation reagents in gold ore processing include collectors, frothers, activators, inhibitors and modifiers. These reagents change the surface properties of minerals, making them more or less hydrophobic, allowing selective flotation.

3. Grinding equipment: Ball mills or rod mills are often used to reduce the particle size of ores to a suitable range in preparation for flotation. Proper grinding ensures optimal release of gold-bearing minerals from gangue minerals, thereby increasing flotation efficiency.

gold ore agitation system

4. Agitation equipment: used to ensure proper mixing of slurry and reagents in the flotation tank. Adequate stirring helps promote the attachment of collector molecules to gold-bearing minerals and enhances flotation kinetics.

03Gold mine cyanidation process equipment

In the cyanidation process of gold ore, cyanide equipment is used to facilitate the dissolution of gold from the ore using cyanide. The following are some of the key equipment used in the cyanidation treatment of gold ore:

Laos gold mineral processing plant

1. Leaching tank: used to mix gold ore with cyanide solution and oxygen in a controlled environment. Stirring in the tank promotes the dissolution of gold from the ore into the cyanide solution.

2. Agitation equipment: used to ensure proper mixing of ore, cyanide solution and oxygen in the leaching tank. Proper stirring helps maximize contact between gold particles and cyanide solution, thereby enhancing gold dissolution kinetics.

3. Cyanide Mixing and Distribution System: Cyanide mixing and distribution system is used to prepare and deliver cyanide solution to the leach tank in a safe and efficient manner. These systems typically include cyanide storage tanks, metering pumps, and distribution piping.

gold ore processing system

4. Carbon in leach (CIL)/carbon in slurry (CIP) systems: CIL and CIP systems are commonly used to recover gold from cyanide leaching solutions. These systems involve adsorbing dissolved gold onto activated carbon and then using elution and electrolytic extraction processes to desorb and recover the gold from the carbon.

6. Thickener: The thickener is used to separate the solid residue (cyanide tailings) from the gold-containing cyanide liquid after leaching. Thickeners help achieve high solids content in tailings, thereby reducing the volume of solution that needs to be treated and disposed of.

The above is a brief introduction to gold mine gravity separation, flotation and cyanidation equipment. The configuration of specific equipment needs to be adjusted according to the actual process. Xinhai Mining can customize gold ore beneficiation processes and equipment for you. We can provide you with efficient gold ore beneficiation equipment to help you efficiently process gold ore and improve gold ore utilization and recovery rates.
