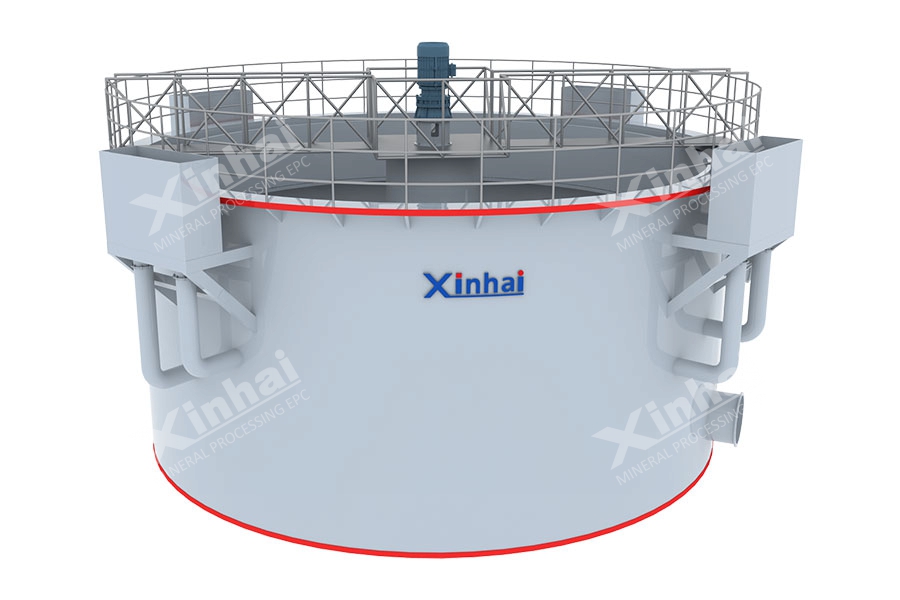

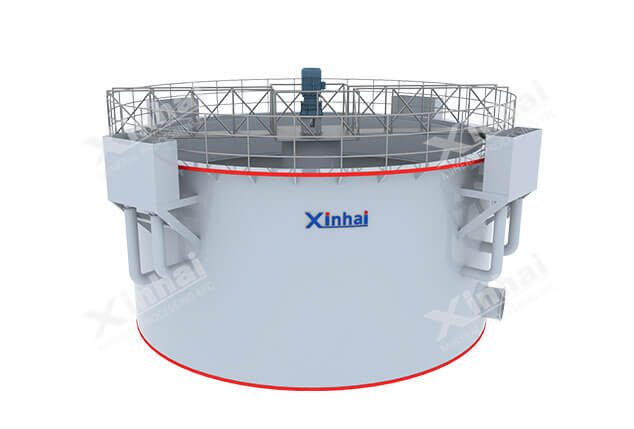

Washing Thickener

Washing Thickener

[Introduction]: Washing thickener for solid-liquid separation of gold leaching liquid

[Capacity]: 10-250t/d

[Improvement]: 1, Countercurrent washing, large capacity, and high washing efficiency; 2, Small floor space; 3, Stable production and convenient operation.

ADVANTAGES

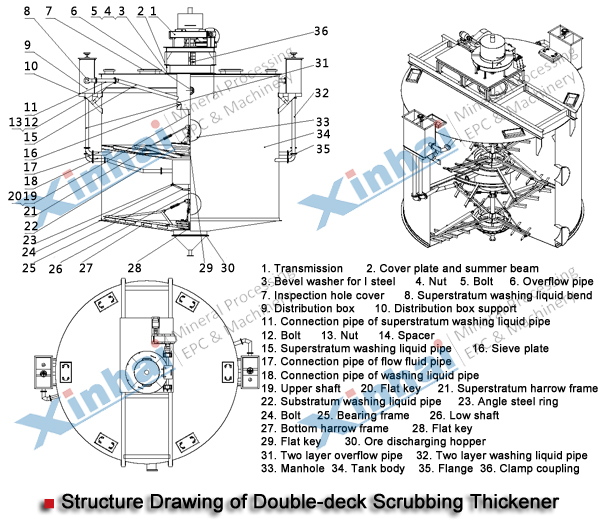

PRODUCT STRUCTURE

Xinhai washing thickeners include a two-layers washing thickener and a three-layers washing thickener. Taking the three-layers washing thickener as an example, the pulp is fed by a feeding tube, and the pulp that settles freely in the rake area is further concentrated by the pressure of the scraper blade, gradually scraped towards the center of the pond, then enters the next layer pond through the mudding slot. The clear water is entered into the lowest layer for washing the material through the distribution box, the bottom of the overflow is returned to the upper layer for washing the material through the distribution box. The overflow of the first layer is discharged through the downflow dam, and the material after two times of washing is discharged through the bottom.

TECHNICAL PARAMETERS

Spec.

Diameter
 (m)

Depth of Center Tank (m)

Subsidence Area (m2)

Revolution of Harrow Frame (r/min)

Capacity
 (t/d)

Motor    Model

Motor
 Power
 (kW)

Weight
 (kg)

Remarks

2NZS6

6

5.34

56.5

0.25

≤ 50

Y112M-6

2.2

13360

Excluding the pond weight

2NZS7

7

5.41

77

≤ 56

14200

2NZS8

8

6.08

100.7

0.28

≤ 68

Y132M1-6

4

50449

Including the pond weight

2NZS9

9

5.91

127.3

≤ 88

54628

2NZS12

12

6.87

226

0.2

≤ 160

Y132M2-6

5.5

40400

Excluding the pond weight

2NZS15

15

6.95

353.3

0.15

≤ 250

51470
