What Mineral Processing Equipment Is Used in Beneficiation of Iron Ore?

2023-06-19 Xinhai Views (420)

If you want to know more information, like quotation, products, solutions, etc., please contact us online.

Iron ore beneficiation is a critical step in the extraction and production of iron, which involves multiple processes and machinery to convert raw ore into products that can be used for manufacturing and industrial purposes. This article will provide an in-depth look at the equipment used in the iron ore beneficiation process, emphasizing their importance and function.

Use the table of contents below to navigate through the guide:

01Iron ore crushing and grinding equipment

The first stage of iron ore beneficiation is to crush and grind the ore in order to enter the subsequent process. Use a crusher suitable for raw ore to crush the ore into a smaller particle size suitable for grinding. Jaw crushers and cone crushers are commonly used for primary crushing. They reduce ore to manageable sizes, allowing for efficient subsequent processing.


After crushing, the ore is further ground to fine particles using grinding equipment. Autogenous mills, semi-autogenous mills, ball mills and rod mills are commonly used grinding equipment. These machines use mechanical force and abrasion to reduce ore size, causing valuable minerals to be dissociated from the gangue material.

It is worth noting that in order to avoid the waste of useful ore resources, the problems of "over-crushing" and "over-grinding" should be avoided during the crushing and grinding process. Therefore, before ore processing, it is necessary to understand the physical and chemical properties of the ore itself.


02Iron ore screening and classifying equipment

Screening is an important step in iron ore beneficiation. It divides ore into various particle size levels, which is convenient for screening out ore particles that meet the particle size requirements of beneficiation. Vibrating screens and drum screens are often used to achieve efficient sorting. They help remove oversized particles to ensure that the ore meets the requirements for subsequent processing.

Classification is to further screen out ores that meet the requirements of the mineral processing process. The commonly used classification equipment in this process includes hydraulic cyclones and spiral classifiers. The mineral processing plant should select appropriate classification equipment according to the processing capacity and process of the ore.


03Iron ore magnetic separation equipment

Magnetic separation is a crucial process in iron ore beneficiation to remove magnetic impurities and increase iron content. Magnetic separators, such as drum magnetic separators, magnetic drums and dry magnetic separators, use magnetism to separate the magnetic and non-magnetic components of ore. This concentrates the iron ore and removes unwanted impurities, improving the quality of its concentrate.


04Iron ore gravity separation equipment

The gravity separation method is commonly used in the beneficiation of coarse-grained and medium-grained iron ore. These techniques exploit the difference in specific gravity between valuable minerals and gangue materials. Jigs, shakers and spiral chutes are commonly used for gravity separation. They efficiently separate heavy minerals and facilitate the concentration and recovery of iron ore particles.


05Iron ore flotation separation equipment

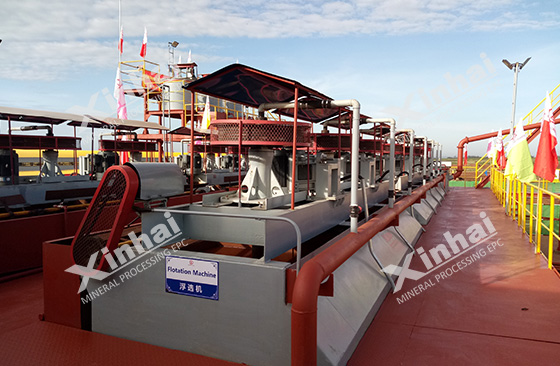

Flotation is a widely used technology in iron ore beneficiation, especially for fine-grained ore. The process relies on the chemical and physical properties of the ore and involves the selective adsorption of gas bubbles on valuable minerals. Flotation cells, collectors and frothers are used to separate and concentrate desired minerals while suppressing unwanted gangue material. In order to improve the flotation efficiency, the concentrator should choose a suitable reagent system, reagent addition method and flotation system.

06Iron ore dehydration and filtration equipment

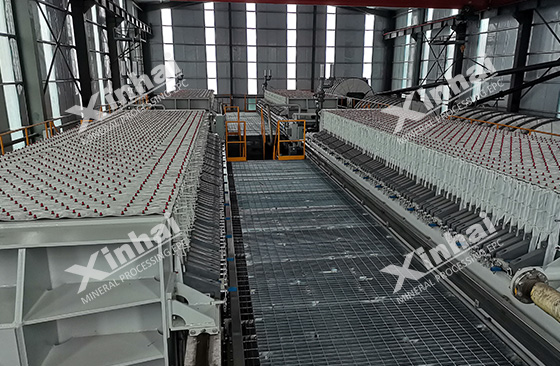

Once the beneficiation process is complete, dewatering and filtration equipment play a key role in preparing the iron ore concentrate for transport and storage. Concentration equipment, such as thickeners, remove excess water in concentrated ore, reduce volume, and improve processing efficiency. Filtration equipment, such as vacuum filters and pressure filters, further remove moisture and impurities, ensuring a high-quality end product.


Iron ore beneficiation is a complex process that requires a series of machinery to convert raw ore into a valuable concentrate. The machinery mentioned in this article plays a key role in the process and they are used to separate valuable and gangue minerals, improve ore quality and prepare iron ore for various applications. Crushing and grinding equipment, screening and grading equipment, magnetic separation equipment, gravity separation equipment, flotation equipment, and dehydration and filtration equipment are key equipment commonly used in iron ore beneficiation. Each machine plays an important role in the efficiency and success of the entire process, which ultimately produces high-quality iron ore concentrate. There are many kinds of iron ore in nature, and different sorting techniques are used for different iron ores. Xinhai Mining recommends that the concentrator should conduct a beneficiation test analysis on the ore samples before determining the beneficiation process, which is convenient for the determination of the subsequent beneficiation process plan and the selection of equipment.
