5 Operation Points of Screening Equipment

2022-04-08 XinHai Views (437)

If you want to know more information, like quotation, products, solutions, etc., please contact us online.

Screening equipment mainly relies on its vibration characteristics to complete classification, dewatering and desliming operations in mineral processing plants. Due to the complex working environment of the screening equipment, continuous work for a long time and heavy load, the screening equipment will inevitably be damaged or even fail. In order to ensure the normal screening operation of the mineral processing plants and prolong the service life of the screening equipment, it is necessary to use the screening equipment correctly.

Then, what are the operating points that should be paid attention to in the daily operation the screening equipment?

screening equipment in Iran gold processing plant.jpg

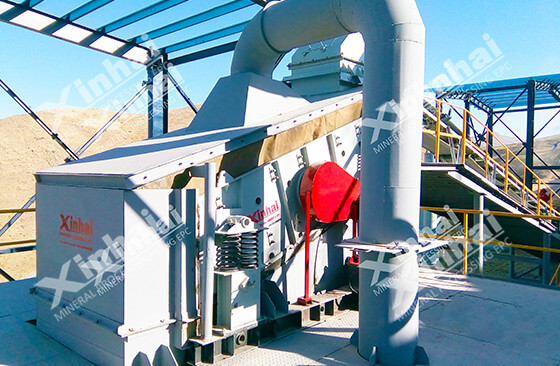

(Screening equipment in Iran gold processing plant)

01Check the screening equipment before starting

The operator of the screening equipment should fully understand and be familiar with the structure and working principle of each part of the screening equipment. Before starting the screening equipment, the operator should prepare for driving, check the condition of the transmission belt or tire coupling, the condition of the screen mesh and the condition of other parts and components. For example, whether the connecting parts such as screws are tight, whether the electrical components fail, whether the main shaft of the vibrator is flexible, and whether the bearing lubrication is good.

screening equipment in Zimbabwe gold processing plant.jpg

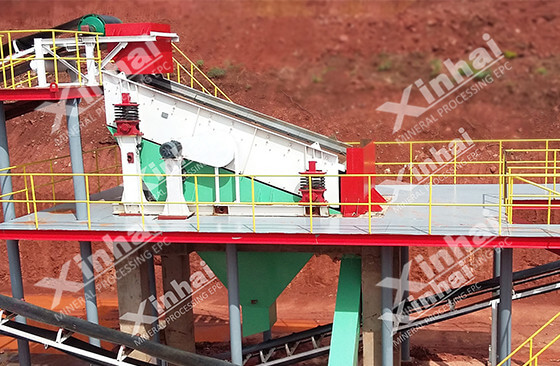

(Screening equipment in Zimbabwe gold processing plant)

02Start and stop the screening equipment correctly

Screening equipment is often used in crushing and screening process or washing process, and requires no-load start and stop. Therefore, operators need to follow the principle of starting in the reverse process and stopping along the process.

When starting the screening equipment, it is necessary to close the knife switch, connect the line to the power grid, and press the start button. Except for special accidents, the screening equipment is not allowed to stop with material. When parking, press the stop button.

Xinhai linear vibrating screen.jpg

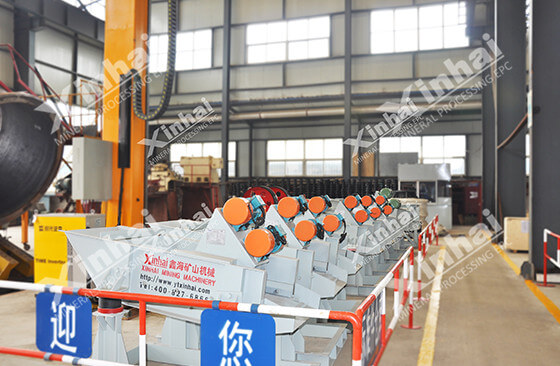

(Xinhai linear vibrating screen)

03Carry out lubrication of the screening equipment

The lubrication of the screening equipment mainly refers to the lubrication of the vibrator bearing, the transmission gear (partially forced synchronous linear vibrating screen), and the transmission motor. The lubrication of the vibrating screen is divided into two types: grease lubrication and thin oil lubrication.

For vibrators lubricated with grease, high-quality lithium-based grease with a temperature range of -30~120°C should be used. Under normal working conditions, generally add 150~200g of grease to each vibrator within 24 hours. If the working environment of the vibrator is harsh, grease can also be added every 8 hours, and it is recommended to use a high-pressure grease gun for oiling. For vibrators and gears lubricated with thin oil, high-quality gear oil can be used. Use no. 70 industrial gear oil when the ambient temperature is less than 5°C. Use no. 90 industrial gear oil when the ambient temperature is greater than 5°C. The amount of fuel should depend on the structure of the vibrator. When the oil is added to remove the oil level inspection rod, a small amount of continuous oil drops will meet the requirements.

For the newly installed screening equipment, the lubricating oil needs to be replaced once after 80 hours of operation, and the lubricating oil should be replaced once every 300 hours thereafter. In winter and summer, because the temperature difference is too large, it is recommended to use lubricating oils with different viscosities. In addition, when filling oil, be sure to clean around the nozzle of the oil gun and the oil filling port, so that no dust can enter the oil cavity.

Auto centering vibrating screen.jpg

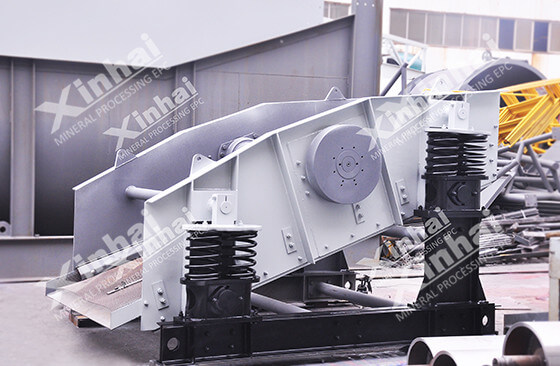

(Xinhai auto centering vibrating screen)

04Determine the rotation direction of the vibrator

For the round vibrating screen, the rotation direction of the vibrator can be rotated in the direction of the material flow or in the opposite direction of the material flow. When rotating in the direction of the material flow, the speed of the material passing through the screen surface is faster, which is beneficial to improve the processing capacity of the circular vibrating screen. When rotating against the direction of the material flow, the speed of the material passing through the screen surface is slow, and the material is prone to block holes. At this time, it is necessary to appropriately increase the inclination of the screen surface. For the self-synchronizing linear vibrating screen, the two eccentric masses are generally driven by two motors respectively. The characteristics of the two motors must be the same, and the rotation directions must be opposite. For the forced synchronous linear vibrating screen, the rotation direction is not clearly defined.

YA Round vibrating screen.jpg

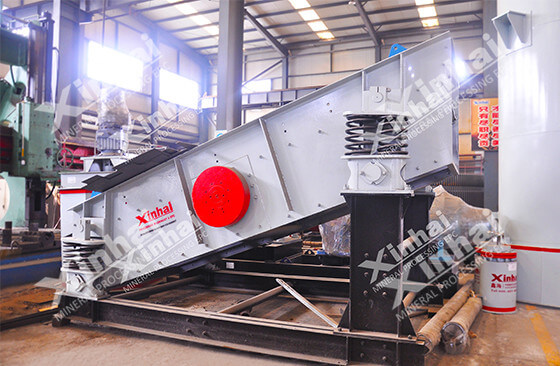

(Xinhai YA round vibrating screen)

05Adjust the amplitude of the screening equipment in time

During the production process, if the operator finds that the amplitude of the screening equipment does not meet the requirements of the screening operation, it must be adjusted in time.

For example, if the screening equipment uses block eccentric vibrators, the operator can adjust the angle between the main and auxiliary eccentric blocks. The smaller the included angle, the larger the exciting force and the larger the amplitude. Conversely, the larger the included angle, the smaller the exciting force and the smaller the amplitude. If the screening equipment uses a shaft eccentric vibrator, the operator can increase or decrease the counterweight on the flywheel and pulley to increase or decrease the amplitude of the vibrating screen.

DZS linear vibrating screen.jpg

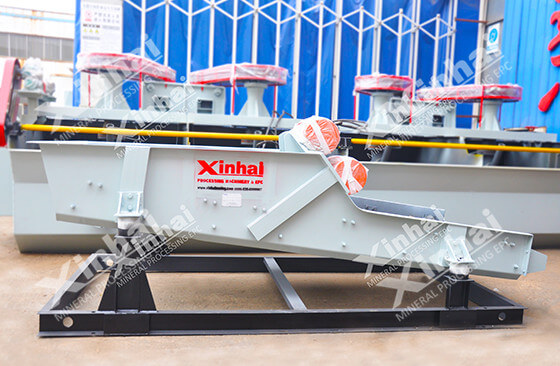

(Xinhai DZS linear vibrating screen)

To Wrap Up

The above are the five main points that need to be paid attention to in the daily operation of screening equipment. It is recommended to find a professional equipment manufacturer for purchase, and operate according to the technical parameters given by the manufacturer. At the same time, the operator needs to be familiar with its various technical parameters, and can make corresponding adjustments according to production changes at any time to ensure the working efficiency of the screening equipment.
