Home Home > Case > Henan 650 tpd Gold Mineral Processing Plant
CASE

Henan 650 tpd Gold Mineral Processing Plant

This project was a renovation project of the mineral processing plant which was mainly about the technical renovation of the main plant (grinding, flotation).

Xinhai Solution Main Equipment Project Result Project Site
CHAT
CHAT
MESSAGE

Xinhai Solution

01

The original facilities are used for crushing system, and the crushed material was sent into the ball mill in the main plant through the belt to enter the grinding system. It used the closed-circuit grinding system composed of the ball mill and cyclone.

02

 Then the pulp entered the flotation system after adding reagents and size mixing. It used the process of one-roughing, three-scavenging, four-concentration for flotation, which produced flotation gold concentrate and flotation tailings respectively.

03

The flotation gold concentrate was pumped into the original concentrate dehydration system, and the flotation tailings were pumped into the original tailings conveying system. The product of this project was flotation gold concentrate.

Main Equipment

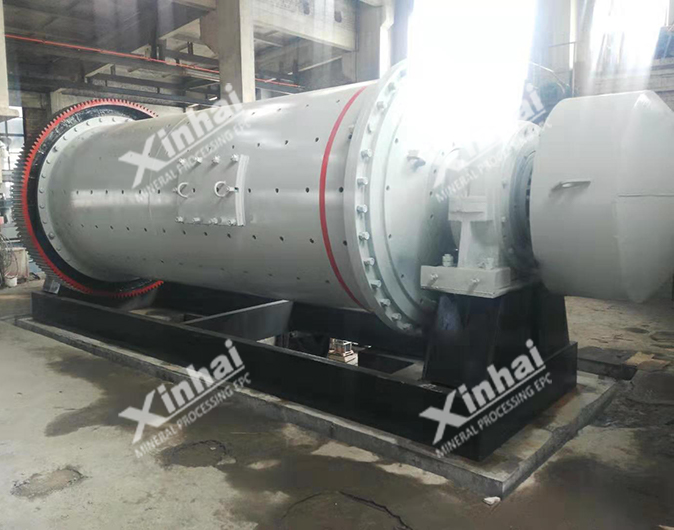

Overflow Type Ball Mill
Overflow Type Ball Mill

A ball mill with simple structure and auto-flowing pulp discharge.
SF Flotation Cell
SF Flotation Cell

SF flotation cell is a mechanical agitation type with slurry suction and air suction.
BF Flotation Cell
BF Flotation Cell

A mechanical agitation type floatation cell unit with air suction and combination of slurry suction/no slurry suction
KYF Air Inflation Flotation Cell
KYF Air Inflation Flotation Cell

An air-inflation mechanical agitation flotation cell without slurry suction (This type of cell is designed referring to Finland Autoquenpu OK flotation cell).

Project Result

Related CASES

Anhui 1000t/d Quartz Processing Plant Project

Gansu Tianluo 500 tpd Lead-Zinc Mineral Processing Plant

Tanzania 25t/d Gold Gravity Separation Plant

Graphite Processing Test Project in Tanzania
