5 Kinds of Magnetite Iron Ore Beneficiation Technologies

2023-12-14 Xinhai Views (152)

If you want to know more information, like quotation, products, solutions, etc., please contact us online.

Magnetite iron ore is often used in iron and steel metallurgy to produce iron and steel, and to manufacture various machinery, tools, construction materials, and electric equipment. In addition, magnetite is also widely used in the fields of science and engineering, such as the manufacture of magnets and electromagnetic devices, the production of magnetic materials, and as a magnetic indicator in earth science research. Overall, magnetite is a very important mineral resource that plays an important role in industry and science. Therefore, reasonable selection of magnetite beneficiation technology and improvement of resource recovery rate are important ways to ensure magnetite resources. This article will introduce you to several common magnetite iron ore beneficiation technologies to help you understand magnetite beneficiation technology.

Use the table of contents below to navigate through the guide:

01Magnetite iron ore magnetic separation technology

Magnetic separation is the most common magnetite iron ore beneficiation technology. Since magnetite ore is a ferromagnetic ore, it can be separated from non-magnetic impurities by a magnetic separation process. The process usually includes the following steps:

dry-magnetic-separator-machine-on-site (2).jpg

The magnetite ore is first crushed into smaller particles, and then finely ground into powder to increase the surface area for effective magnetic separation. The ground ore is processed by magnetic separation equipment. Various types of magnetic separation equipment are used in this process, such as magnetic drums, magnetic plates, and high-intensity magnetic separation equipment. These devices generate magnetic fields that separate magnetic minerals from other ores. Magnetite and other magnetic minerals are attracted by magnetic fields and attach to magnetic surfaces. These magnetic particles then move with the rotating drum or other magnetic surface, while the nonmagnetic minerals are unaffected. Magnetite and other magnetic minerals are collected separately from non-magnetic tailings. The collected magnetic concentrate is dehydrated and dried to obtain the final magnetite concentrate.

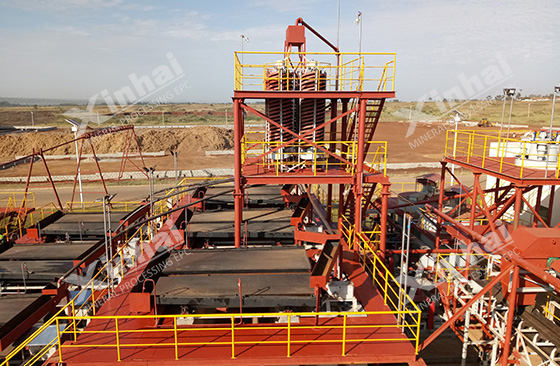

02Magnetite iron ore magnetic-gravity separation technology

Magnetic iron ore gravity separation is a supplement to the magnetic separation process, mainly used to further improve the grade of magnetite ore. Magnetic gravity separation can be divided into two stages of rough selection and fine selection, which are realized by multi-stage magnetic separators. The combined process usually includes the following steps:

1. Magnetic separation: After the pretreatment of crushing and grinding, the magnetite ore enters the magnetic separator for magnetic separation, and the magnetic minerals (mainly magnetite) are removed from the ore. Magnetic separation equipment, such as magnetic drums or high-intensity magnetic separators, can be used for this process.


2. Gravity separation: Gravity separation of the non-magnetic part and gangue minerals in the ore after magnetic separation. This step takes advantage of the specific gravity difference between magnetite and gangue minerals for separation. Gravity separation equipment such as spiral chutes or shakers can be used in this process.

The product obtained after magnetic separation is magnetic separation concentrate, while the non-magnetic part and gangue minerals form gravity tailings. They are dehydrated and dried separately to obtain the final concentrate.

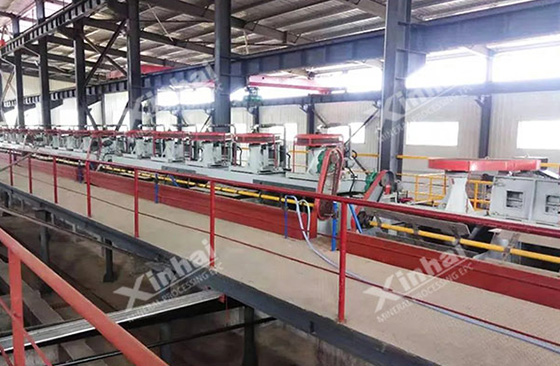

03Magnetite iron ore magnetic-flotation separation technology

Some magnetite ores contain non-magnetic impurities such as siliceous or carbonate, which cannot be completely removed by magnetic separation alone. In this case, magnetic separation can be used in combination with flotation techniques. The process is particularly useful where the magnetite ore contains complex or fine-grained gangue minerals that are difficult to effectively remove by magnetic separation alone. The combined process usually includes the following steps:


After the magnetite ore is crushed, it is subjected to magnetic separation to remove the magnetite from the ore. This step helps to separate the magnetic minerals from the non-magnetic gangue minerals. The non-magnetic part and gangue minerals in the ore obtained after magnetic separation undergo a flotation process. During flotation, collectors are added to the slurry to selectively attach to the magnetite, causing it to float above, while the gangue minerals remain in the tailings.

The magnetic separation concentrate and flotation tailings are dehydrated and dried separately to obtain the final concentrate.

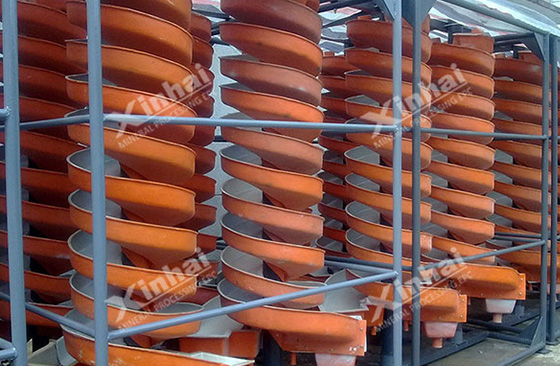

04Magnetite iron ore gravity separation technology

Gravity separation beneficiation is a technology based on the difference in mineral density in ore. It can be used to separate heavy minerals such as barite from magnetite ore. This process usually includes the following steps:


After crushing and grinding, the magnetite ore is classified according to particle size and specific gravity. This step helps ensure proper particle size distribution for efficient gravity separation. The graded ore passes through gravity separation equipment, such as spiral chute or shaker, to separate magnetite from gangue minerals. The obtained magnetite concentrate is dehydrated and dried to obtain the final concentrate.

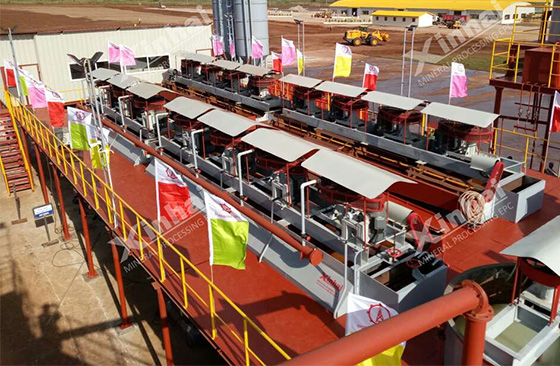

05Magnetic-gravity-flotation separation technology

This is a relatively complex magnetite iron ore beneficiation process, which combines various technologies such as magnetic separation, dense medium beneficiation and flotation. The combined process is especially suitable for magnetite ore containing complex or fine-grained gangue minerals, which are difficult to separate by separate beneficiation methods. Usually includes the following steps:


The magnetite ore is pulverized and finely ground for magnetic separation, and the non-magnetic part of the ore obtained after magnetic separation is separated from the gangue minerals by gravity to separate the valuable magnetite from the gangue minerals. The gravity-separated tailings still contain gangue minerals, which are then subjected to a flotation process. During flotation, collectors are added to the slurry to selectively attach to the magnetite, causing it to float to the top. The obtained magnetic concentrate and flotation concentrate are dehydrated and dried separately to obtain the final concentrate.

The above contents are common magnetite iron ore beneficiation technology, and the specific beneficiation method should be determined according to the characteristics of the ore and the requirements of the beneficiation plant. Xinhai Mining can design and formulate the magnetite iron ore beneficiation plan according to the beneficiation test results and customer needs, and complete the production and manufacture of the whole set of equipment. We have participated in many magnetite beneficiation projects at home and abroad, and have rich experience in magnetite EPC+M+O. We can provide you with customized beneficiation plant services, reduce cost input and improve economic benefits.
