Underground mining is a highly complex and integrated engineering undertaking. Unlike the open and expansive environment of surface mining, underground operations depend on the creation of a safe, efficient, and tightly coordinated working system within a confined three-dimensional space. The reliability, productivity, and safety of this system directly influence project return on investment and overall mine life.
This article explores the core subsystems of underground mining from a systems engineering perspective, with particular emphasis on the comprehensive capabilities and project experience of Xinhai Mining in underground mine engineering.
Use the table of contents below to navigate through the guide:
01Overview of an Underground Mining System
A modern underground mining system involves far more than ore extraction alone; it is an integrated operating framework composed of core mining operations, production support infrastructure, and safety and emergency systems. These subsystems are closely interconnected, and a deficiency in any one of them—whether inadequate ventilation, insufficient dewatering capacity, or limited hoisting capability—can become a bottleneck to mine productivity.
For this reason, sound and well-coordinated system design is fundamental to successful mine development and operation.
02Six Major Systems for Underground Mining Production Support
The production support system forms the infrastructure network that sustains daily mining operations, covering everything from power supply to material transportation and mine services.
1. Hoisting and Haulage System
The hoisting system is responsible for the vertical transportation of ore, waste rock, personnel, equipment, and materials, making it a critical component of underground production.
Hoisting System: The selection of multi-rope friction hoists or single-rope drum hoists depends on factors such as annual production capacity, shaft depth, and mining level, with skips, cages, and counterweights configured accordingly.

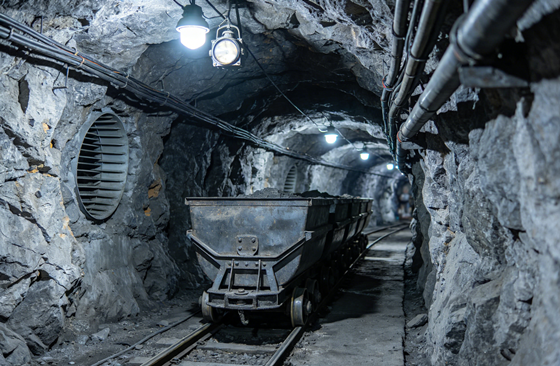

Haulage System: Haulage includes horizontal transport by rail locomotives or trackless vehicles, as well as ramp haulage systems. An optimized haulage network design can significantly reduce unit transportation costs and improve operational efficiency.
2. Ventilation System
The ventilation system ensures the continuous supply of fresh air underground, diluting and removing toxic gases and dust while regulating temperature and humidity.
Ventilation design is based on mine airflow network analysis. Depending on site conditions, the system may use mechanical ventilation with main and auxiliary fans, natural ventilation, or a combination of both. Intake shafts, return air shafts, and ventilation control structures must be properly configured to ensure sufficient airflow and acceptable air quality at all working faces.
3. Power Supply System
Reliable power supply is essential for underground mining operations. Uninterrupted power must be guaranteed for critical underground loads such as drainage pumps, main ventilation fans, and hoisting systems.

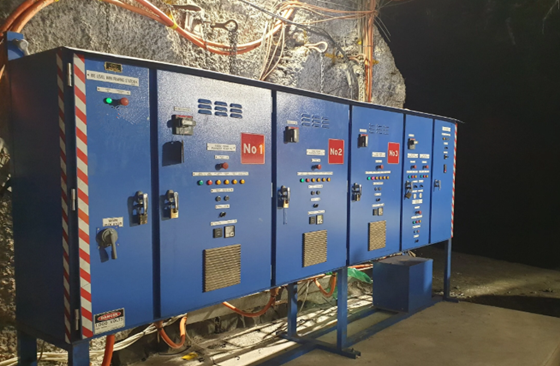

The system typically includes surface substations, underground main substations, and district substations, supported by dual independent power feeds and standby generators to maintain safe operation under emergency conditions.
4. Compressed Air System

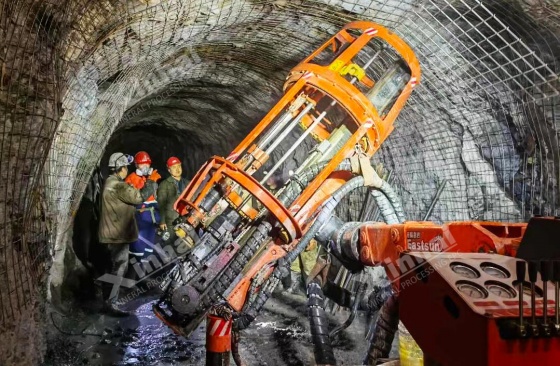

Compressed air serves as an important power source for pneumatic equipment underground, such as drill jumbos and rock loaders.
5. Dewatering System
Groundwater inflow represents a major safety risk in underground mines. The dewatering system must be capable of handling the maximum predicted water inflow.

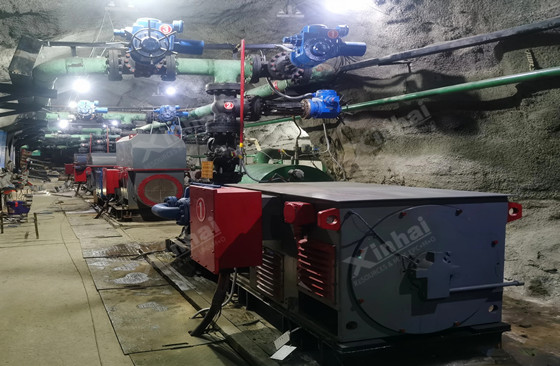

The system includes sumps, pump chambers, and discharge pipelines. Modern mines often employ automated dewatering systems for sump level monitoring and pump start-stop control, reducing the risk of flooding and improving operational reliability.
6. Water Service System
The water service system supplies water for dust suppression, equipment cooling, process use, and domestic consumption.
7. Backfill System
With the increasing emphasis on green mining and sustainable operations, backfill systems are now widely adopted in modern underground mines. The backfill system uses materials such as tailings and waste rock to fill mined-out stopes.
Backfill systems help control ground pressure, limit rock movement, and reduce the need for surface tailings storage, thereby improving both safety and environmental performance. The construction of the backfill plant and the backfill mixture proportioning process are key technical aspects of the system.
03Safety and Emergency Systems
Safety is non-negotiable in underground mining. In addition to routine ventilation and dewatering systems, mines must establish a comprehensive safety and emergency response system.
Monitoring and Control: Real-time monitoring of toxic gases (CO, NO₂, etc.), airflow velocity, and temperature.
Personnel Tracking and Communications: Underground personnel positioning systems and emergency communication networks to ensure rapid contact and evacuation.
Refuge Facilities: Underground refuge chambers or mobile refuge systems equipped with essential survival supplies, providing an emergency refuge option for miners.
Fire Prevention and Suppression: Mine fire protection systems including fire doors, sprinkler systems, and foam extinguishing systems.
04Xinhai’s Underground Mining Engineering Capabilities
As a leading provider of end-to-end mining solutions, Xinhai Mining brings extensive technical expertise and project experience to underground mine engineering. We deliver not just equipment, but complete turnkey solutions.
Our core competencies include:
Customized Mine Design: Supported by strong engineering qualifications and extensive design experience, we tailor mining methods and system layouts based on orebody characteristics to maximize project return on investment.
Systems Integration Expertise: We specialize in the integration of hoisting, haulage, ventilation, dewatering, and other subsystems, building coordinated and efficient underground mining systems and smart mine management platforms.
Mining Equipment Manufacturing: Our independently developed high-efficiency and energy-saving equipment—such as high-rate thickeners, backfill pumps, and high-efficiency crushers—is widely used in underground mines, helping reduce operating costs and improve productivity.
EPC+M+O Service Model: We provide one-stop services covering geological exploration, mine design, equipment manufacturing and procurement, installation and commissioning (EPC), as well as production management (M) and operation (O), helping mine owners address both technical and operational challenges.
05Case Study
Project Background

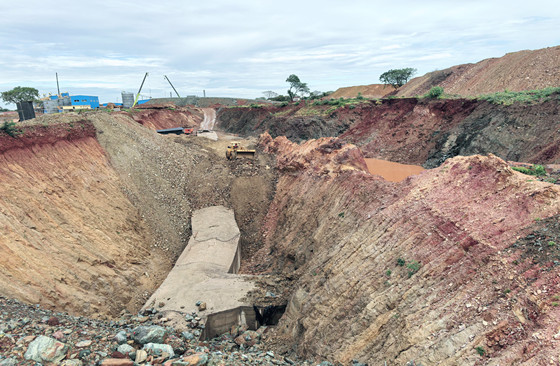

The project is a large underground gold mine characterized by complex geological conditions, high ore grade, weak surrounding rock stability, and strict environmental requirements.
Xinhai Solution
Mining Method: Upward drift cemented backfill mining method was adopted to effectively control ground pressure and improve stope stability.

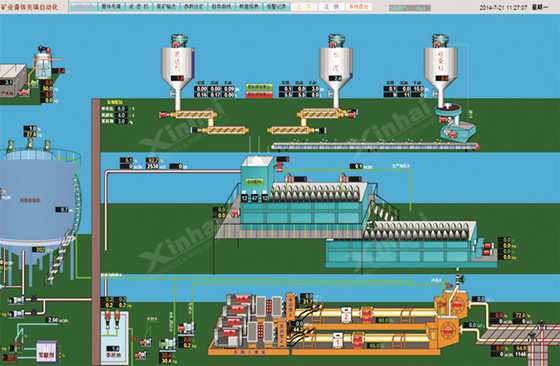

Backfill System: A 3,000 t/d paste backfill plant was constructed, utilizing full tailings for cemented backfill and enabling zero tailings discharge.
Automation Upgrade: Underground locomotive autonomous driving system and remote-controlled drilling technology were introduced, significantly improving safety and operational efficiency.
Project Results
Achieved full production capacity within one year after commissioning
Ore dilution rate controlled within 5%
Backfill cost reduced by 15%
The project was recognized as a green and environmentally responsible mining operation
