Reliable Grinding Solutions: Xinhai Large Ball Mills for Demanding Mines

2026-09-08 Xinhai Views (266)

If you want to know more information, like quotation, products, solutions, etc., please contact us online.

The global ball mill market was valued at approximately US$4.25 billion in 2025 and is projected to reach US$5.65 billion by 2032, at a compound annual growth rate (CAGR) of approximately 4.15%. China accounts for more than 35% of worldwide sales and records annual growth of roughly 8%. As mining projects in copper, lithium and nickel expand, demand is increasing for larger capacity, lower energy consumption and smarter process control.

Xinhai’s Intelligent Equipment Research Institute continues to develop its ball mill range for demanding mineral processing applications. This guide covers Xinhai’s large ball mill capabilities, manufacturing processes, technology development and project experience.

Use the table of contents below to navigate through the guide:

01Xinhai Large Ball Mills: Built for Large-Scale Grinding

Large ball mills are central to mineral processing plants, where grinding performance affects throughput, product size and operating costs. Grinding accounts for approximately 30% of overall plant operating costs, while ball mills represent around 50% of grinding expenditure. Selecting the right mill size, type and configuration is a long-term decision that can affect uptime, throughput and total cost of ownership.

Xinhai Mining supplies large-scale ball mills for mineral processing applications. The range includes overflow and grate-discharge mills with diameters above 4 m. Equipment is designed, manufactured and tested through Xinhai’s manufacturing system.

Xinhai Large Ball Mill Equipment-Project Site.jpg

Why Grinding Decisions Matter

  • Operating costs: Grinding is a major controllable cost center in many mineral processing operations.

  • Grinding expenditure: Ball mill selection can affect the cost and performance of the grinding circuit.

  • Availability: Reliable mill operation supports plant throughput and production continuity.

  • Scale: Processing larger volumes of lower-grade ore increases demand for suitable grinding capacity.

Xinhai Ball Mill Product Matrix

ModelDiameter × LengthTypeStatusApplication
MQGφ4.0×7.0φ4.0 × 7.0 mOverflow / grate dischargeIn productionMedium- to large-scale plants
MQYφ4.5×7.0φ4.5 × 7.0 mOverflow / grate dischargeAssembly / test runLarge-scale projects
φ5 m class≥ φ5 mCustom designR&D phaseStrategic mineral projects
Autogenous / SAGCustomAG / SAGAvailablePrimary grinding

Note: Xinhai’s intelligent manufacturing bases can supply ball mills with diameters of 7 m and above. Specific parameters are subject to confirmation and may change with ongoing technological updates.

02Xinhai Ball Mill Manufacturing: From Fabrication to Delivery

Large ball mill manufacturing involves heavy fabrication, heat treatment and precision machining. These processes help control the dimensions and quality of major components, including mill shells, end covers and gears. Xinhai’s production chain covers critical manufacturing stages from material preparation through machining.

Heavy Equipment Manufacturing Capabilities

  • Machining: The mining equipment base features a 100-ton CNC floor-type lathe capable of machining workpieces up to 6 m in diameter and 10 m in length, primarily for ball mill cylinders. A C540 double-column vertical lathe handles end covers up to φ4 m in diameter.

  • Plate rolling: The W11S-503200 universal plate rolling machine handles plates up to 50 mm thick and 3,200 mm wide. It processes ball mill cylinders, flotation tank bodies and mixing tank bodies.

  • Gear hobbing: The Y311000K gear hobbing machine processes diameters from 2.4 m to 10 m, with a maximum module of 40 mm, covering large gears for ball mills of 5.5 m diameter and above.

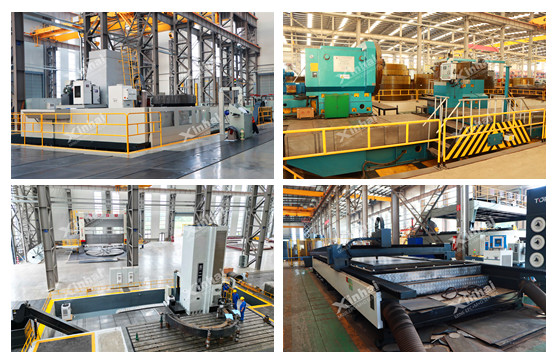

Manufacturing equipment used for producing large-scale equipment.jpg

The Heat Treatment and Quality Control Chain

Large-diameter mill shells require specialized heat treatment to support structural integrity under continuous rotational stress. Xinhai’s manufacturing and quality-control processes include:

  • Billet selection and material certification, supported by qualified non-destructive testing (NDT) personnel

  • Controlled-temperature heat-treatment cycles for stress relief and grain-structure optimization

  • Coordinate measuring machine (CMM) inspection of critical dimensions

  • Weld inspection and quality verification in accordance with applicable project requirements

  • Hydrostatic and rotational testing before dispatch

Non-Destructive Testing.jpg

Global Logistics and Delivery

Xinhai’s global supply chain, packaging and customs-clearance capabilities support the delivery of modular and prefabricated processing equipment and supporting facilities. By the end of H1 2025, Xinhai had dispatched more than 170 shipments and 250+ containers to customers in over 100 countries.

Xinhai uses an ERP system with unique product codes to support inventory management, shipment accuracy and traceability, helping reduce errors throughout the delivery process.

Ball mill shipment.jpg

03Xinhai Ball Mill Technology and Large-Scale Development

Xinhai’s ball mill technology continues to develop around three areas: energy efficiency, customization and intelligent monitoring. These efforts draw on more than 100 technical experts dedicated to mining equipment R&D and over 200 patents covering core equipment and control systems.

Partial patent certificates - Xinhai.jpg

Energy-Saving Technology Upgrades

Xinhai’s ball mill design improvements include:

  • Rolling-bearing replacement: Replacing sliding bearings with rolling bearings reduces energy consumption by 20–30%, according to Xinhai product literature.

  • Groove-type ring lining: This lining design is intended to improve grinding efficiency and extend liner life.

  • Multiple series: Energy-saving overflow, grate-discharge and cone-type mills are developed for different ore characteristics.

Note: The reported 20–30% energy saving should be read in the context of the applicable mill model, operating conditions and comparison basis.

Customization for Every Ore

Xinhai engineers customize mill models and components based on:

  • Ore hardness and grindability

  • Feed particle size and target product fineness

  • Plant throughput requirements

  • Circuit configuration (overflow, grate or cone discharge)

  • Liner, ball-charge and bearing specifications

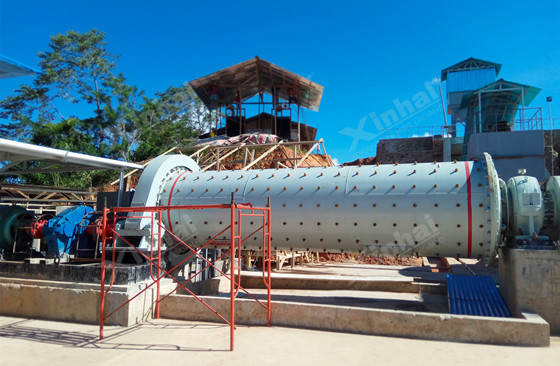

Ball mill project site.jpg

Xinhai Intelligent Mineral Processing Control System

Beyond the equipment itself, Xinhai integrates systems designed to monitor mill assets and support process operation:

  • Ball Mill Condition and Safety Monitoring: Real-time collection of temperature, vibration, grinding noise and power data supports equipment assessment and early fault warning.

  • Flotation Level and Aeration Control: Siemens PLC-based systems with self-developed actuators support flotation process control.

  • Automated Ball Charging: XHGY automatic ball-charging systems maintain the ball charge to support consistent grinding performance.

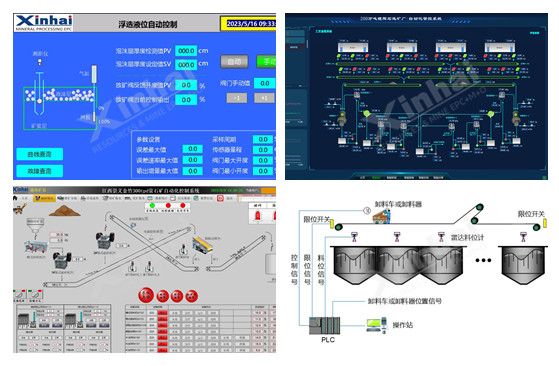

Mineral processing automation system.jpg

04Xinhai Ball Mill Solutions for Mineral Processing Projects

Xinhai delivers plant-scale ball mill solutions as part of its full-industry-chain EPC+M+O service model. For greenfield projects and plant upgrades, the scope may include grinding-circuit design, equipment manufacturing, installation and operational support.


Why Partner with Xinhai for Ball Mill Projects

  • One-stop service: Support from test work and equipment manufacturing through installation and operation.

  • Project delivery: Xinhai reports that approximately 170 million items were shipped for a Zimbabwe lithium project in 3 months, with the project achieving full production within a year.

  • Global experience: Projects across Africa, Asia, South America and the Middle East, with equipment and services supplied to more than 100 countries.

  • Certified quality: Xinhai lists ISO 9001:2015, CE, CSA and ISO 9712 NDT qualifications among its certifications.

Representative Global Projects

ProjectLocationEquipmentOutcome
2 Mt/a Gold Mine ExpansionZimbabweφ4.5 × 6.0 m ball mill170M units delivered in 3 months
3.5 Mt/a Copper ProjectZambia130 m³ circular flotation cellFull-scale production achieved
2 Mt/a Spodumene ProjectZimbabweMQY φ4.5 × 7.2 m ball millFull production within 1 year
3,000 t/d Gold CIL PlantGuineaMQG φ4.3 × 7.2 m grid-type ball millCommissioned on site; client praised

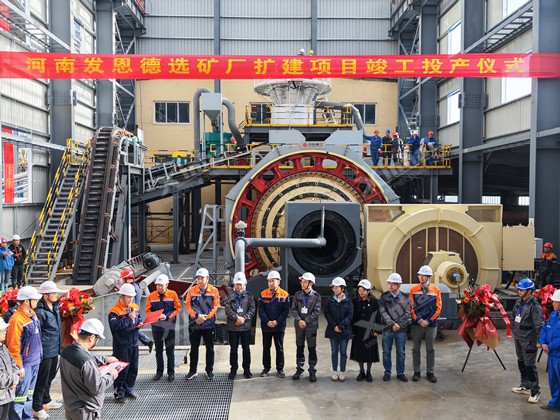

3,000 t/d Polymetallic FlotationHenan, Chinaφ4.3 × 7.2 m ball millCompleted and commissioned in 198 days




05Ready to Optimize Your Grinding Circuit?

Xinhai’s mining equipment R&D team can help assess mill configurations for your ore and target throughput. Get a customized milling solution backed by Xinhai’s 30+ years of mining expertise. Contact Xinhai Technical Team
