Quartz Sand Physical, Chemical and Thermal Beneficiation Technology

2023-12-29 Xinhai Views (354)

If you want to know more information, like quotation, products, solutions, etc., please contact us online.

Quartz sand, also known as silica sand, is a valuable mineral resource widely used in various industries including glass manufacturing, construction, ceramics and electronics. However, impurities in quartz can seriously affect its quality and suitability. Therefore, mineral processing technology plays a vital role in improving the purity and value of quartz sand. This article aims to explore different beneficiation technologies for quartz sand, focusing on their principles, advantages and limitations. By understanding the various methods available, we can optimize the beneficiation process and ensure high-quality quartz sand production.

Use the table of contents below to navigate through the guide:

01Quartz sand physical beneficiation technology

submerged classifier used in quartz sand ore processing system

1. Gravity separation technology: Gravity separation uses the difference in specific gravity between quartz and impurities to separate. Heavy minerals and coarse impurities can be effectively removed using technologies such as gravity separation, spiral separation and shaking tables.

2. Magnetic separation technology: Magnetic separation uses the magnetic properties of certain impurities, such as iron oxide, to separate them from quartz sand. High-intensity magnetic separators and electromagnetic separators are commonly used equipment.

3. Foam flotation technology: Foam flotation is a widely used technology that selectively floats quartz particles based on differences in surface properties while leaving impurities in the bottom liquid. Depending on the mineral properties, the mineral processing plant can choose different combinations of flotation systems.

02Quartz sand chemical beneficiation technology

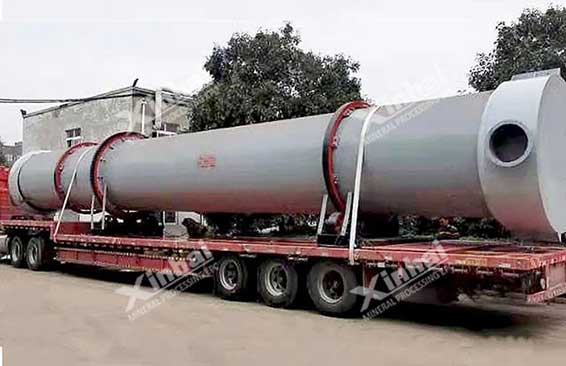

xinhai machine for quartz sand ore processing shipment

1. Quartz acid leaching process: Acid leaching is used to dissolve impurities such as iron oxide and feldspar in quartz sand. Hydrofluoric acid (HF) is a commonly used selective dissolving agent. However, due to its harmful nature, hydrofluoric acid must be handled and disposed of correctly.

2. Quartz alkali treatment process: Alkali treatment uses alkaline solution, such as sodium hydroxide (NaOH), to remove impurities such as clay and organic matter. The alkaline solution reacts with these impurities and promotes their separation from quartz sand.

3. Quartz electrostatic separation process: Electrostatic separation utilizes the conductivity difference between quartz and impurities. By applying an electric field, particles can be selectively charged and separated based on their conductive properties.

03Quartz sand thermal mineral processing technology

1. Calcination technology: Calcination heats the original quartz sand to high temperatures to drive out volatile impurities and transform some impurities into less harmful forms. This process effectively removes organic matter and soluble impurities.

2. Heat treatment technology: Heat treatment is carried out at moderate temperatures to improve the crystallinity and optical properties of quartz sand. This technology reduces color changes caused by impurities and improves the transparency of the final product.

quartz sand ore sample

Quartz sand beneficiation is a key process to improve the quality and value of this valuable mineral resource. By using different beneficiation technologies, we can effectively remove impurities and improve the purity of quartz sand, making it suitable for the needs of various industries. Physical beneficiation technologies, such as gravity separation, magnetic separation and froth flotation, can effectively remove heavy minerals and coarse impurities. Chemical beneficiation techniques, including acid leaching, alkali treatment and electrostatic separation, are designed to target specific impurities such as iron oxides, clays and organic matter. Thermal beneficiation technology, such as calcination and heat treatment, can improve the crystallinity and optical properties of quartz sand.

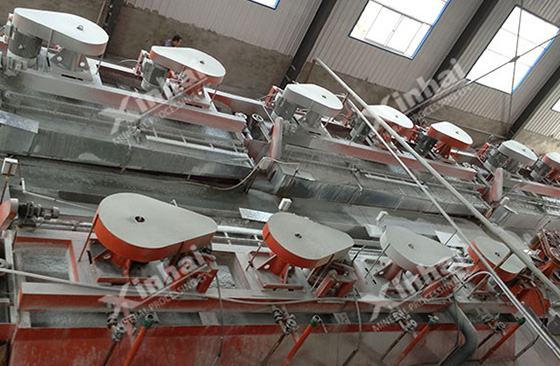

flotation cell used for quartz sand ore beneficiation

It is worth noting that the selection of appropriate mineral processing technology depends on the specific impurities in the quartz sand, the required quality requirements and economic feasibility. In addition, in order to improve the mineral processing effect, it may be necessary to combine a variety of technical means. By understanding and applying these beneficiation technologies, we can fully realize the potential of quartz sand and meet the growing needs of various industries while ensuring high-quality products and sustainable resource utilization. Xinhai Mining can conduct beneficiation tests and analysis on quartz sand raw ore to determine the physical and chemical properties of the raw ore, and then design the quartz sand beneficiation process and customize mineral processing equipment. If necessary, please consult Xinhai Mining.
